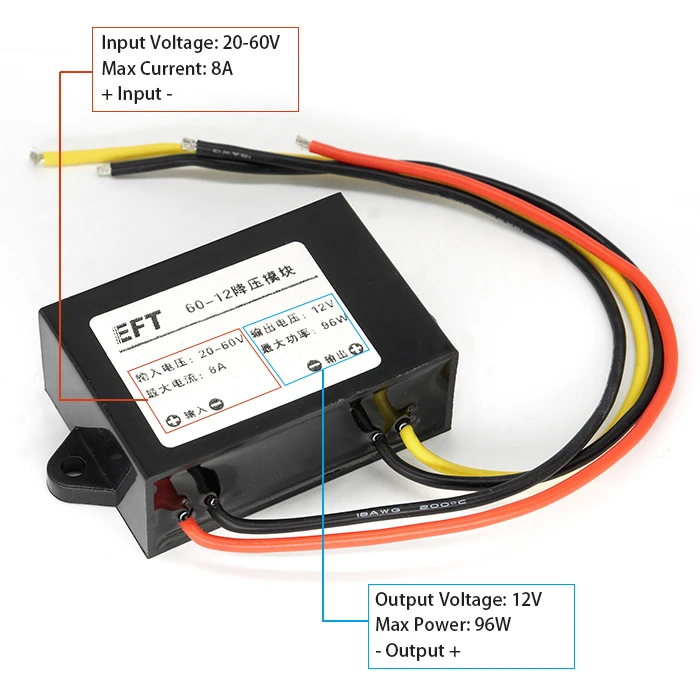

60V To 12V Step-Down Converter Reducer Regulator Module 8A

Product Name: 60V to 12V Step-Down Module
Size: 75x40x22MM (length x width x height) without wire and fixed ears
Weight: about 90g
Input voltage: 22-60V, minimum differential voltage of 3V, step-down power supply, must ensure that the input voltage is higher than the output voltage
Output voltage: 12V
Output current: 8A, current that can work for a long time at normal temperature
Output power: output AxVOUT, such as 8A 12v is 96W
Operating temperature: Limit: -40-80 °C Recommended for use at -20-60 °C to extend power life and stability

Protective function:
1, Output short circuit protection
2, Over-current protection (can be set according to customer needs, over-current protection, error between 0.5-1A, such as 5A long-term work, you can set 6A to protect)
3, Over temperature protection.
4, Low-voltage start protection can be set (such as 24V output, you need voltage below 36V when the voltage does not start)

Precautions:
1, There is no reverse protection, please follow the label instructions: red for input positive, black for negative, yellow for output positive
2, The power must be allowed to work at a suitable temperature to be stable and reliable for a long time, can not be directly judged by the current parameters, as long as the current can work for a long time, you can touch the power meter temperature to judge, if the heat is too strong, please do not use , different places, different environments, we can not directly get an exact current parameter to you
