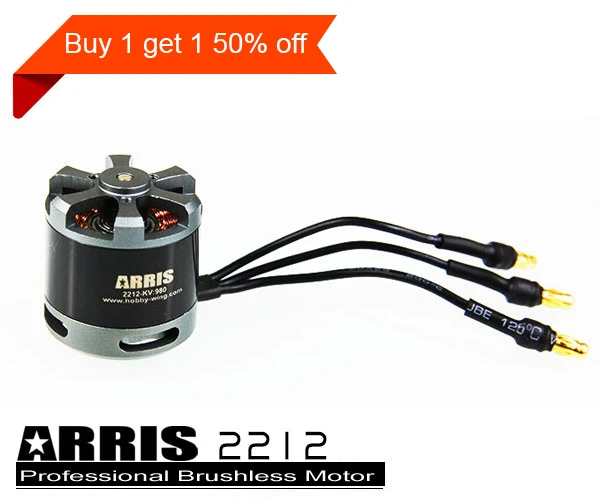

ARRIS 2212 980KV Multi-copter Outrunner Brushless Motor

ARRIS Brushless Motor is jointly developed by Hobby-Wing and the most professional motor manufacturer in China. This professional motor has 2 series: multirotor motors and brushless gimbal motors. We pursue the highest quality from material to processing technology to ensure the outstanding quality of every ARRIS motor.
The advantage of ARRIS Motors is as follows:

1. Motor Spindle: ARRIS motor adopts authentic Japan Kawasaki 20JNE1200 material. With this, the motor becomes more efficient and gets lower temperature during flight.
2. Magnet: NdFeb N45UH high heat resistance magnet, with nickel plating on the surface. (T-Motor also use the NdFeb N45UH magnet)
3. Varnished Wire: ARRIS Motor adopts 155 degree high heat resistance vanished wires
4. Bearings: ARRIS Motor adopts authentic NMB bearing
5. Dynamic Balance: We ensure every ARRIS Motor has been processed by dynamic balance. And the balance quality can reach in 0.01 left/right. (This is the extremity of the balancing machine at present)

X2212 KV980 Specification:
No load current: 10V-0.3A
Weight: 59g
Diameter: 28mm
Length: 30mm
Shaft Diameter: 3mm

Propeller (in)	Volts (v)	Amps	Thrust (G)	Rpm/min	Power	Power Efficiency(G/W)
		(A)			(W)
1047	11.1	13.2	870	7100	146.5	5.93
1047	10	11.2	720	6580	112	6.42
1047	8	8.2	520	5630	65.6	7.9
1047	7.4	7.4	480	5360	54.7	8.77
1145	11.1	17.2	960	5830	190.9	5.02
1145	10	14.2	880	5500	142	6.19
1145	8.5	12	680	5000	102	6.66
9047	12	11	740	8400	132	5.6
9047	11.1	9.6	680	7900	106.5	6.38
9047	10	8.2	560	7380	82	6.82
9047	8.5	6.5	420	6520	55	7.63
