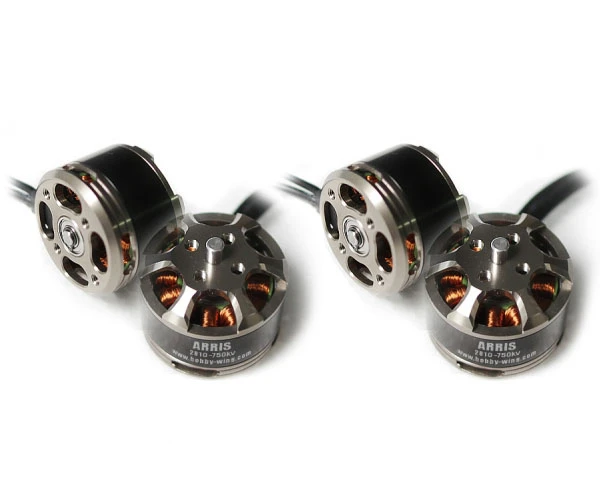

ARRIS 2810 750KV Multi-copter Outrunner Brushless Motor (4 PCS)

ARRIS Brushless Motor is jointly developed by Hobby-Wing and the most professional motor manufacturer in China. This professional motor has 2 series: multirotor motors and brushless gimbal motors. We pursue the highest quality from material to processing technology to ensure the outstanding quality of every ARRIS motor.
The advantage of ARRIS Motors is as follows:

1. Motor Spindle: ARRIS motor adopts authentic Japan Kawasaki 20JNE1200 material. With this, the motor becomes more efficient and gets lower temperature during flight.
2. Magnet: NdFeb N45UH high heat resistance magnet, with nickel plating on the surface. (T-Motor also use the NdFeb N45UH magnet)
3. Varnished Wire: ARRIS Motor adopts 155 degree high heat resistance vanished wires
4. Bearings: ARRIS Motor adopts authentic NMB bearing
5. Dynamic Balance: We ensure every ARRIS Motor has been processed by dynamic balance. And the balance quality can reach in 0.01 left/right. (This is the extremity of the balancing machine at present)



MN: ARRIS 2810 KV750
Volts(V)	Prop	Throttle	Amps(A£©	Watts(W)	Thrust(G)	Thrust(OZ)	RPM	Efficiency(G/W)	operation temperature(¡æ£©
11.1	1047	50%	2.8	31.1	360	12.70	4455	11.58	¡¡
		65%	4.3	47.7	490	17.28	4950	10.27
		75%	6.7	74.4	705	24.87	5525	9.48
		85%	9.6	106.6	850	29.98	6165	7.98
		100%	10.9	121.0	930	32.80	6415	7.69
	1147	50%	2.9	32.2	375	13.23	3660	11.65	¡¡
		65%	5.3	58.8	570	20.11	4990	9.69
		75%	8.5	94.4	790	27.87	5190	8.37
		85%	11.6	128.8	985	34.74	5710	7.65
		100%	13.5	149.9	1060	37.39	5940	7.07
	1238	50%	3.1	34.4	435	15.34	3525	12.64	¡¡
		65%	6.3	69.9	690	24.34	4350	9.87
		75%	9.7	107.7	910	32.10	4900	8.45
		85%	13.5	149.9	1105	38.98	5330	7.37
		100%	15.6	173.2	1195	42.15	5490	6.90
	1347	50%	4.0	44.4	495	17.46	3260	11.15	¡¡
		65%	7.7	85.5	755	26.63	4010	8.83
		75%	11.5	127.7	1005	35.45	4480	7.87
		85%	15.8	175.4	1170	41.27	4880	6.67
		100%	17.8	197.6	1235	43.56	4990	6.25
14.8	1O47	50%	3.8	56.2	505	17.81	4920	8.98	¡¡
		65%	7.2	106.6	780	27.51	6009	7.32
		75%	10.9	161.3	1020	35.98	6850	6.32
		85%	14.7	217.6	1240	43.74	7490	5.70
		100%	16.8	248.6	1350	47.62	7800	5.43
	1147	50%	4.3	63.6	560	19.75	4470	8.80	¡¡
		65%	8.6	127.3	895	31.57	5760	7.03
		75%	13.3	196.8	1180	41.62	6268	5.99
		85%	17.3	256.0	1375	48.50	6790	5.37
		100%	19.6	290.1	1470	51.85	7005	5.07
	1238	50%	4.8	71.0	635	22.40	4250	8.94	¡¡
		65%	10.0	148.0	1015	35.80	5220	6.86
		75%	15.1	223.5	1320	46.56	5780	5.91
		85%	20.2	299.0	1530	53.97	6230	5.12
		100%	22.5	333.0	1610	56.79	6540	4.83

Package Include:
ARRIS 2810 750KV Multi-copter Outrunner Brushless Motor x 4
