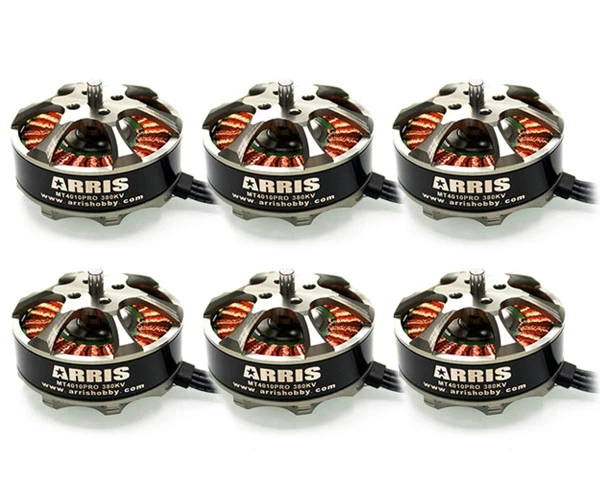

ARRIS 4010PRO 380KV High Performance Vibration Free Outrunner Brushless Motor For Multi-Copter (6 PCS)

ARRIS Brushless Motor is jointly developed by ARRIS and the most professional motor manufacturer in China. This professional motor has 2 series: multirotor motors and brushless gimbal motors. We pursue the highest quality from material to processing technology to ensure the outstanding quality of every ARRIS motor.
The advantage of ARRIS Motors is as follows:

1. Motor Spindle: ARRIS motor adopts authentic Japan Kawasaki 20JNE1200 material. With this, the motor becomes more efficient and gets lower temperature during flight.
2. Magnet: NdFeb N45UH high heat resistance magnet, with nickel plating on the surface. (T-Motor also use the NdFeb N45UH magnet)
3. Varnished Wire: ARRIS Motor adopts 155 degree high heat resistance vanished wires
4. Bearings: ARRIS4010PRO adopts authentic EZO bearing
5. Dynamic Balance: We ensure every ARRIS Motor has been processed by dynamic balance. And the balance quality can reach in 0.01 left/right. (This is the extremity of the balancing machine at present)

ARRIS 4010PRO Brushless Motor is newly released in 2015 by hobby-wing.com on the basis of old ARRIS 4010. It performs far more better than the old one and could offer stronger thrust.

KV:380
Configu ration:24N22P
Stator Diameter:40mm
Stator Length:10mm
Shaft Diameter:4mm
Motor Dimensions(Dia.*Len): 45.3x24mm
Weight (g):82.5g
ldle current(10)@10v(A):0.4A
No.of Cells(Lipo):4-8S

Package Include:
ARRIS 4010Pro 380KV Brushless Motor x 6

Professional series: 4010 KV380
Volts(V)	Prop	Throttle	Amps(A)	Watts(W)	Thrust(G)	Thrust(OZ)	RPM	Efficiency(G/W)	Efficiency(OZ/W)	operation temperature
22.2	APC12*3.8	25%	0.9	20.0	240	8.47	2765	12.01	0.42	55¡ã
		50%	2.5	55.5	590	20.81	4145	10.63	0.37
		65%	5.3	117.66	1050	37.04	5160	8.92	0.31
		75%	8	177.6	1420	50.09	5790	8.00	0.28
		85%	11	244.2	1740	61.38	6390	7.13	0.25
		100%	13.2	293.04	1855	65.43	6565	6.33	0.22
	13*4  carbon prop	25%	0.8	17.8	250	8.82	3015	14.08	0.50	¡¡
		50%	2	44.4	490	17.28	4365	11.04	0.39
		65%	4.2	93.2	850	29.98	5460	9.12	0.32
		75%	6	133.2	1180	41.62	6150	8.86	0.31
		85%	8.5	188.7	1560	55.03	6845	8.27	0.29
		100%	9.8	217.6	1780	62.79	7010	8.18	0.29
	APC13*4.7	25%	0.9	20.0	270	9.52	2485	13.51	0.48	¡¡
		50%	3.3	73.3	780	27.51	3990	10.65	0.38
		65%	6.8	151.0	1240	43.74	4965	8.21	0.29
		75%	9.8	217.6	1580	55.73	5565	7.26	0.26
		85%	13.3	295.3	1980	69.84	6070	6.71	0.24
		100%	15	333	2150	75.84	6215	6.46	0.23
	APC14*4.7	25%	1	22.2	320	11.29	2260	14.41	0.51	61¡ã
		50%	4	88.8	920	32.45	3810	10.36	0.37
		65%	7.8	173.2	1450	51.15	4695	8.37	0.30
		75%	11.5	255.3	1835	64.73	5250	7.19	0.25
		85%	15.5	344.1	2280	80.42	5695	6.63	0.23
		100%	17	377.4	2400	84.66	5820	6.36	0.22
	APC15*4	25%	0.9	20.0	305	10.76	2590	15.27	0.54	¡¡
		50%	2.9	64.4	680	23.99	4090	10.56	0.37
		65%	5.2	115.4	1175	41.45	5120	10.18	0.36
		75%	7.5	166.5	1550	54.67	5805	9.31	0.33
		85%	10	222.0	1950	68.78	6480	8.78	0.31
		100%	12	266.4	2080	73.37	6665	7.81	0.28
	DJI15*5.5	25%	1	22.2	350	12.35	2160	15.77	0.56	60¡ã
		50%	4	88.8	950	33.51	3785	10.70	0.38
		65%	7.5	166.5	1520	53.62	4720	9.13	0.32
		75%	11	244.2	1885	66.49	5290	7.72	0.27
		85%	14	310.8	2330	82.19	5825	7.50	0.26
		100%	16.5	366.3	2490	87.83	5980	6.80	0.24
	DJI17*5.5	25%	1	22.2	310	10.93	1970	13.96	0.49	¡¡
		50%	5.2	115.4	1070	37.74	3555	9.27	0.33
		65%	9.2	204.2	1680	59.26	4270	8.23	0.29
		75%	14.2	315.2	2150	75.84	4820	6.82	0.24
		85%	18	399.6	2460	86.77	5140	6.16	0.22
		100%	19.8	439.6	2640	93.12	5240	6.01	0.21
