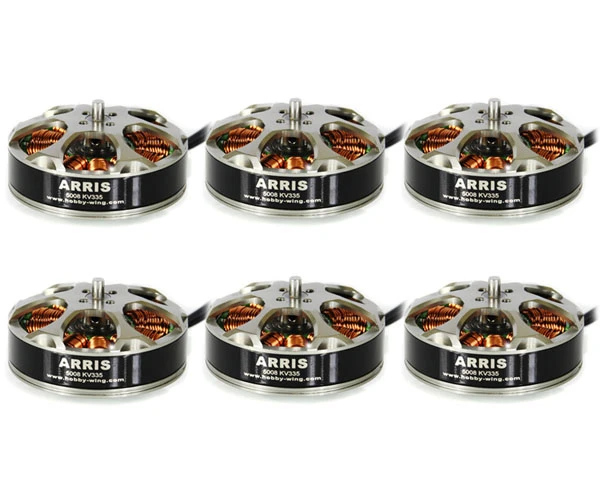

ARRIS 5008 335KV Outrunner Brushless Motor For Multi Rotors (6PCS)

Original price was: $330.00.Current price is: $97.99.

SKU: CMMTD 3969539566 Categories: Motor for Drones, MULTI-ROTORS

Multiple payment options for secure shopping with SSL
Have the best deals
The home of quality products.
Experience the difference quality makes.

Description
Reviews (0)

PRODUCT DESCRIPTION

ARRIS Brushless Motor is jointly developed by ARRIS and the most professional motor manufacturer in China. This professional motor has 2 series: multirotor motors and brushless gimbal motors. We pursue the highest quality from material to processing technology to ensure the outstanding quality of every ARRIS motor.
The advantage of ARRIS Motors is as follows:

Motor Spindle: ARRIS motor adopts authentic Japan Kawasaki 20JNE1200 material. With this, the motor becomes more efficient and gets lower temperature during flight.
Magnet: NdFeb N45UH high heat resistance magnet, with nickel plating on the surface. (T-Motor also use the NdFeb N45UH magnet)
Varnished Wire: ARRIS Motor adopts 155 degree high heat resistance vanished wires
Bearings: ARRIS 5008 adopts authentic EZO bearing
Dynamic Balance: We ensure every ARRIS Motor has been processed by dynamic balance. And the balance quality can reach in 0.01 left/right. (This is the extremity of the balancing machine at present)

Specifications:
Item Brand: ARRIS
Item Model: ARRIS 5008 335KV
Motor Diameter 57.7mm
Motor Length 27.5mm
Stator Diameter 50mm
Stator Length 8mm
Shaft Diameter 4mm
Weight 185.5g
Batteries 6Cells
Top Mounting Holes 12mm*12mm
Bottom Mounting Holes 25mm*25mm

Package Included:
ARRIS 5008 335KV Multi-copter Outrunner Brushless Motor x 6

KV		330			Motor Dimension(Dia*Len)		57.7mm*31mm
Configu-ration		12N14P			Weight(g)		183g
Stator Diameter		50mm			idle current(10)@10V(A)		0.42A
Stator Length		8mm			NO.of Cells(Lipo)		6S
Shaft Diameter		6mm			¡¡		¡¡
Volts(V)	Prop	Amps(A£©	Watts(W)	Thrust(G)	Thrust(OZ)	Efficiency(G/W)	Efficiency(OZ/W)
24V	CF1755	2.0	48.0	565	19.93	11.77	0.42
		4.0	96.0	960	33.86	10.00	0.35
		6.0	144.0	1260	44.44	8.75	0.31
		8.0	192.0	1540	54.32	8.02	0.28
		12.0	288.0	2035	71.78	7.07	0.25
		14.0	336.0	2280	80.42	6.79	0.24
		16.0	384.0	2530	89.24	6.59	0.23
		17.8	427.2	2730	96.30	6.39	0.23
	CF1865	2.0	48.0	590	20.81	12.29	0.43
		6.0	144.0	1320	46.56	9.17	0.32
		12.0	288.0	2070	73.02	7.19	0.25
		14.0	336.0	2300	81.13	6.85	0.24
		16.0	384.0	2500	88.18	6.51	0.23
		20.0	480.0	2820	99.47	5.88	0.21
		24.7	592.8	3300	116.40	5.57	0.20
