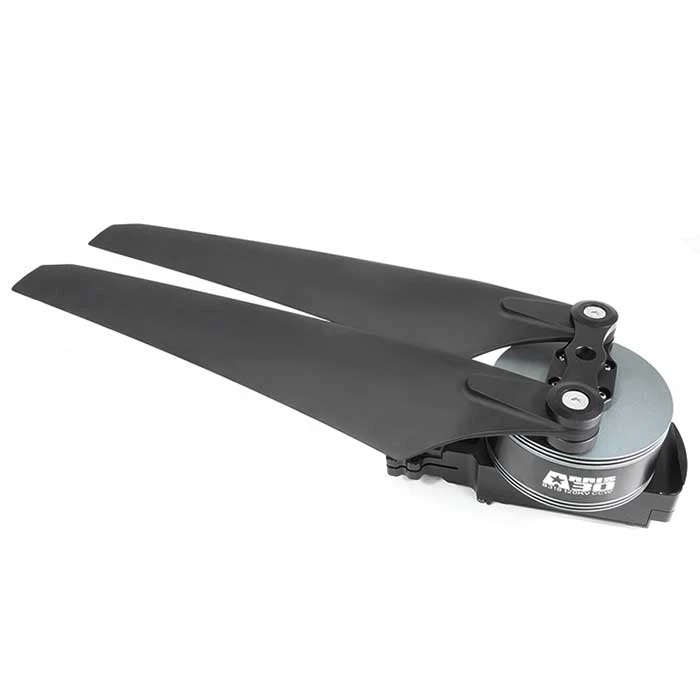

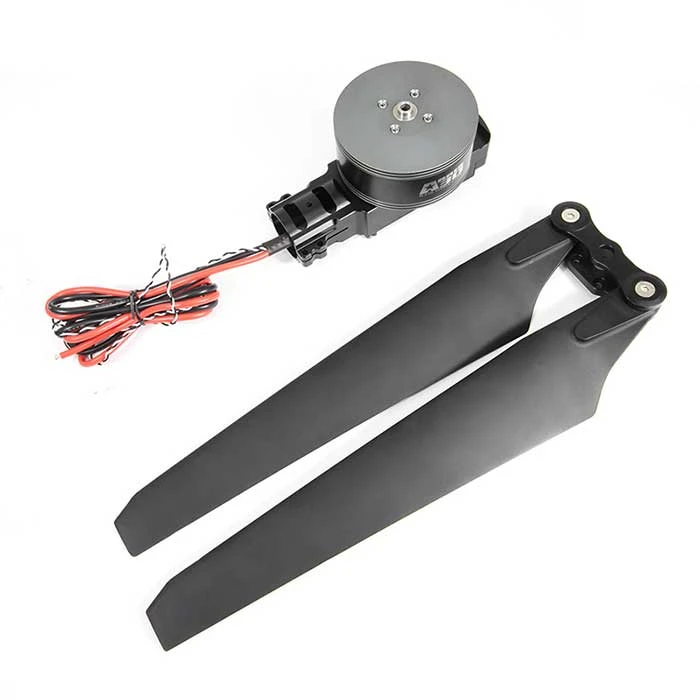

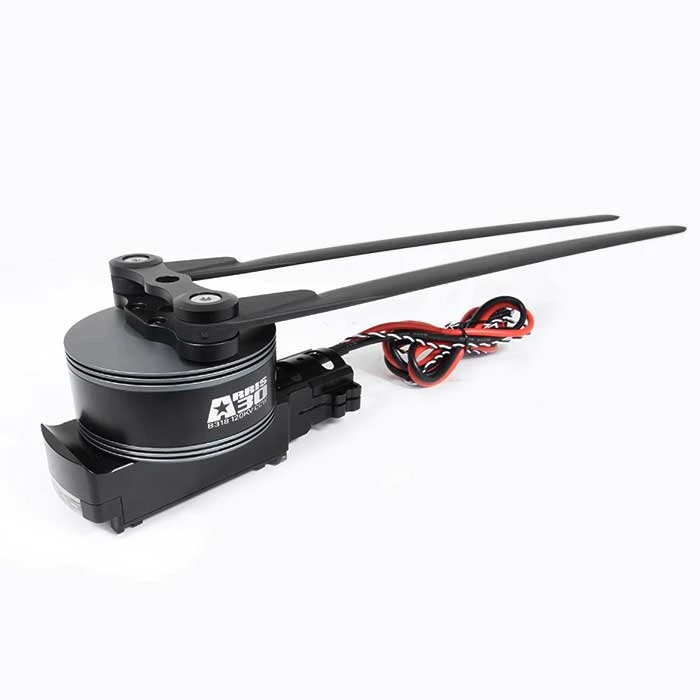

ARRIS A30 8318 120KV Brushless Motor 80A ESC 30 Inches Propeller Power Combo For Multi-Rotors UAV Drones Agriculture Spraying Drones

Product Features:
● ESC adopts a powerful and efficient 32-bit DSP control chip with a maximum operating frequency of 60 MHz.
● ESC adopts internationally renown brand MOSFET to suppress temperature rise according to low impedance circuit board and improve drive reliability.
● Field Oriented Control (FOC) method, sine wave drive, torque ripple is small. The motor operates quietly.
● Energy is recovered during deceleration, the driver program is perfectly compatible with motor and load, 5 to 7% more efficient than normal square wave driver, extending flight time.
● Accurate speed control, aircraft flight is more stable.
● Waterproof and corrosion-resistant, suitable for the harsh environment of Agriculture Spraying Drones
● Highlight LED light, color can be set according to your own demands
● Raise the refresh rate to 500 Hz and correspond to any flight controller. (Note: Throttle signal over 500 Hz is nonstandard signal)
● Aluminum alloy shell greatly improves cooling of ESC.
● Modular design for easier maintenance

Specifications:
Model: ARRIS A30 Power System
Battery compatible: 5-12S
Recommended thrust: 5-7 kg
Suitable arm diameter : 35mm. 40mm (optional)
Product weight: 1.2 kg
Maximum thrust: 16-16.5kg

Motor:
Model: 8318 120KV
No. of Cells: 5-12S
Outer diameter: 92mm

ESC:
Battery: 5-12s
Con. Current: 80A
Burst Current(10S): 100A
Solidified throttle: 1100-1950us

Propeller:
Size: 3095 30″ Carbon Fiber Folding propeller

Package Included:
ARRIS A30 8318 120KV brushless motor x 1
80A ESC x 1
3095 Carbon fiber folding Propeller x 1

Protection Function
1. Overvoltage Protection: When the import voltage reaches 15V or less, or 53V or more, the ESC stops outputting.
2. Throttle signal lost protection: When the throttle signal reception stops for 0.32 seconds and the state continues for another 2 seconds, the ESC completely stops the output.
3. Throttle signal over limit protection: When the throttle signal exceeds a certain range at power on, ESC stops outputting.
