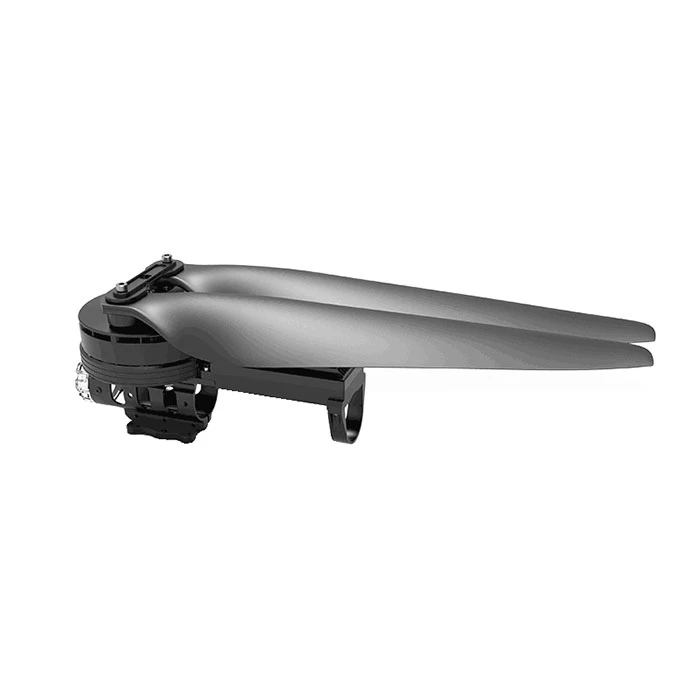

ARRIS A40 12-14S 10010 Motor 100A ESC 32″ Propeller Propulsion System For UAV Multirotors AG Drones

ARRIS A40 Propulsion System is specially designed for heavy lift large multi-rotor platforms with 40mm outer diameter arms. With the 10010 110kv brushless motor, 100A esc and 32 inches propeller, the bigges thrust for one axis can reach 16579g. It is compatible with 12 to 14S lipo battery. The ARRIS A40 propulsion system is waterproof, corrosion resistant, and can be used in harsh environments for spraying pesticides and other industrial applications.

Main Features:
 –Excellent Heat Dissipation Function: The motor and ESC are separate, and the temperature rise of the entire product is suppressed, and the adoption of a high-strength aluminum alloy shell also has the effect of suppressing the heat transmitted to the entire product. Excellent heat dissipation.
–High Brightness LED Night Light: The ARRIS A40 comes with a high brightness LED night light to support drone night flight.
–Modular design: The motor and ESC also adopt a modular design to improve work efficiency, excellent heat dissipation function, and very convenient for daily maintenance.
–Efficient propeller: Foldable propeller, light and durable, with good dynamic balance.

Specifications:
Item Model: A40 Propulsion System
Recommended Battery: 12-14S Lipo
Recommended Takeoff Weight: 7-10kg/ a rotor (12S)
                                                  8.5-11kg/a rotor (13S)
                                                  9.5-12kg/a rotor (14S)
Suitable arm diameter: 40mm
Max Thrust: 16579g

Motor
Item Model: 10010
KV: 110KV
Stator diamter: 100mm
Stator length: 10mm
Shaft diamter: 12mm
Motor Dimension: 113×107.9mm
Weight: 1040g
No. of Cells: 6-14S
Max Continuous Power (180s): 3500W
Internal Resistance:: 60mΩ
Max Current (180S): 65A

ESC
Con. Current:  100A
Burst Current: 120A
Default Throttle: 1100-1950us

Propeller
Item Model:32120 Folding Propeller

Package Included:
ARRIS A40 12-14S 10010 Motor 100A ESC 32″ Propeller Power combo x 1
