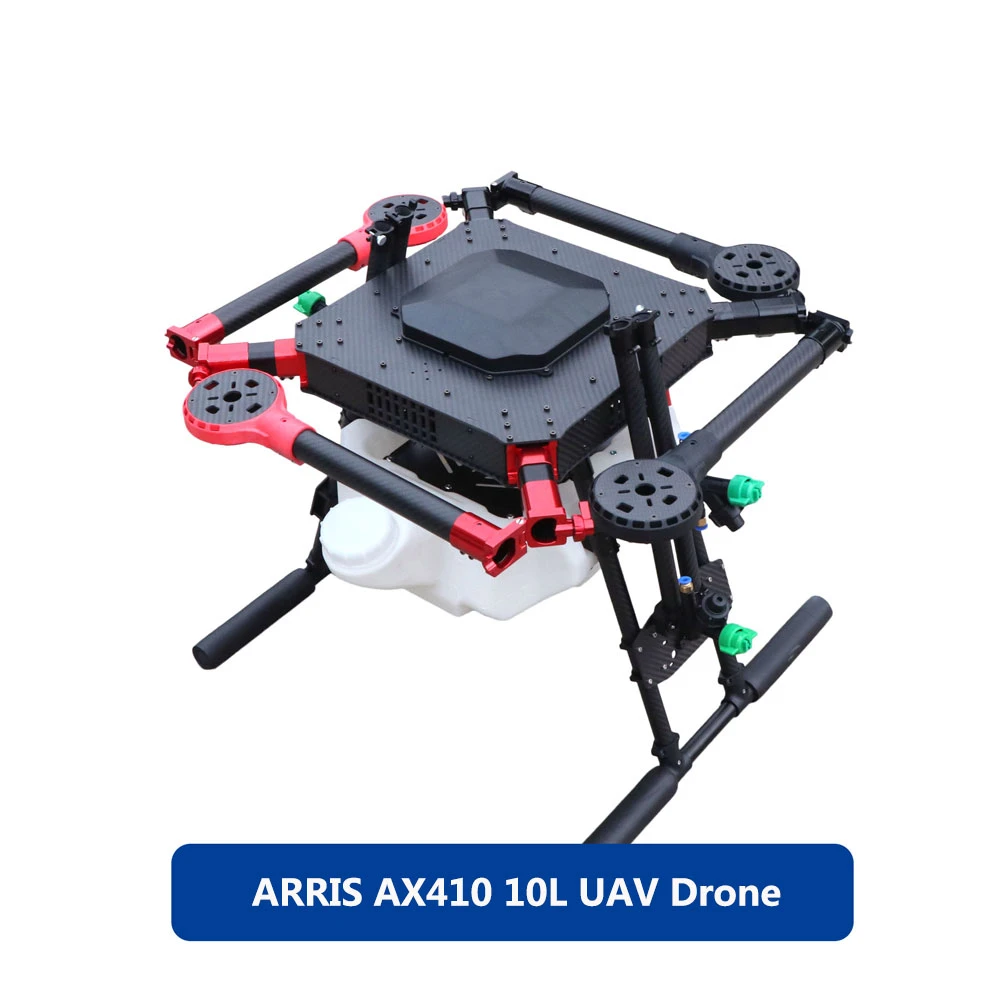

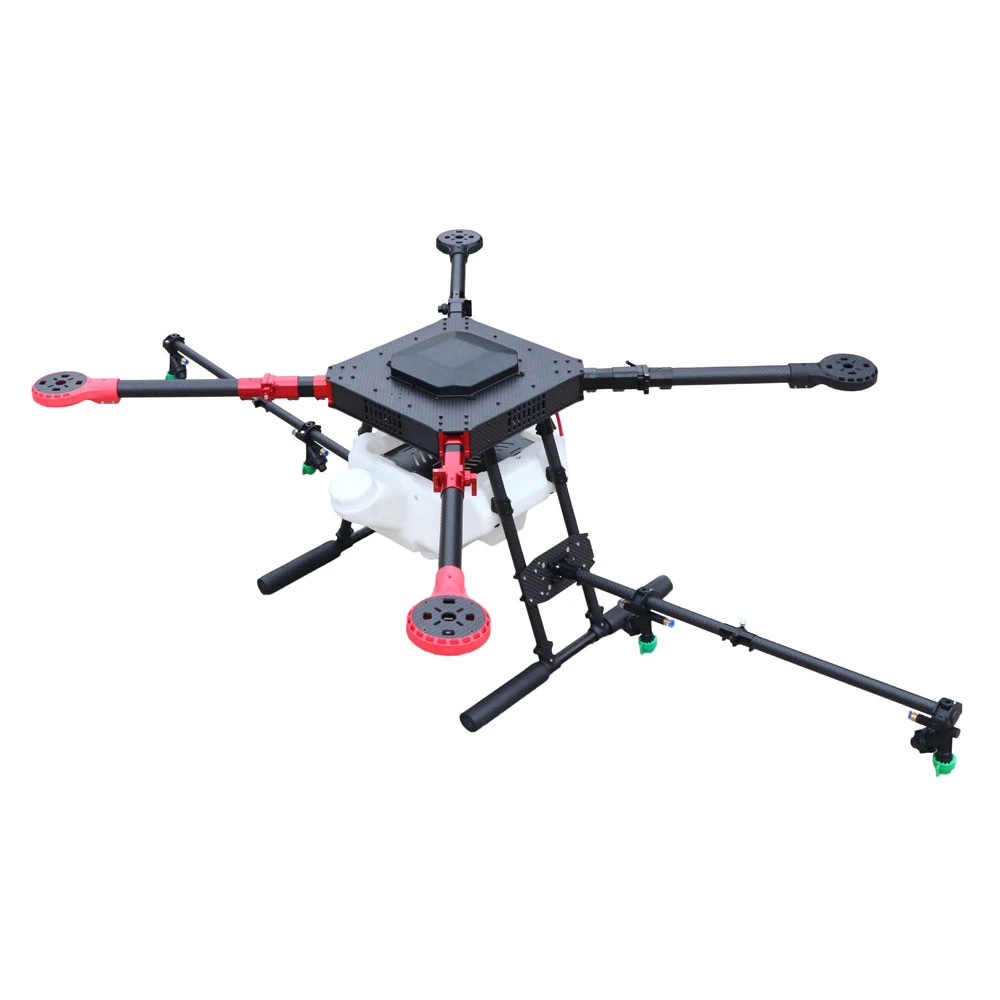

ARRIS AX410 4 Axis 10L UAV Drone Agriculture Sprayer

Main Features:
1. Cross-shaped structure, center symmetrical layout, lighter weight
2. Cross-shaped layout can effectively increase the spray range
3. Enclosed and folded, small in size, easy to transport
4. The battery hangs down, effectively lower the center of gravity
5. Built-in distribution board for wiring installation
6. Modular design, easy to assemble and convenient to maintainance
7. Quick release side plate of the esc, improve the maintenance efficiency;
8. New Folding locks
9. New Design arm to avoid misalignment rotation

Specifications:
Product Name: ARRIS 10kg 4 Axis Agriculture Drone
Digonatal Wheelbase: 1300mm
Frame Weight: 3.9kg
Payload: 10kg
Carbon Fiber Plate Thickness: 2.5mm
Arm Carbon Fiber Tube: 30 x 27mm
Landing Skid Carbon fiber tube: 20 x 17mm

Power combo specifications:
Motor: 8118 100kv
Propeller: 30×8.0 inch
ESC: 80A FOC
Voltage Input: 12S
Working pulse width:1120-1920us
Max Thrust: 15kg
Suggest thrust: 5-7kg

Package Included:

Frame Kit	Combo 1	Combo 2	Combo 3 (RTF)
ARRIS AX410 Frame x 1	ARRIS AX410 Frame x 1	ARRIS AX410 Frame x 1	ARRIS AX410 Frame x 1
Spraying System x 1	Spraying System x 1	Spraying System x 1	Spraying System x 1
	8018 brushless motor x 6	8018 brushless motor x 6	8018 brushless motor x 6
	FOC 80A ESC x 6	FOC 80A ESC x 6	FOC 80A ESC x 6
	28 inches folding propeller x 6	28 inches folding propeller x 6	28 inches folding propeller x 6
		DJI N3-AG FC x 1	DJI N3-AG FC x 1
		DJI datalink 3 Radio x 1	DJI datalink 3 Radio x 1
			6S 16000MAH Battery x 2
			Skyrc P1080 Charger x 1
			(Fully Assembled,Ready to Fly)
$899	$1999	$3299	$4299
Note:
1.Frame includes: main frame, arm, landing skid, PDB, canopy
2.Spraying system includes: 4x Nozzle,1x water pump,8mm water tube 1m, 6mm water tube 4 meters, speed governor and PL-G
3.For the combos 1 and combo 2, you need to install the components by yourselves.
