PRODUCT DESCRIPTION

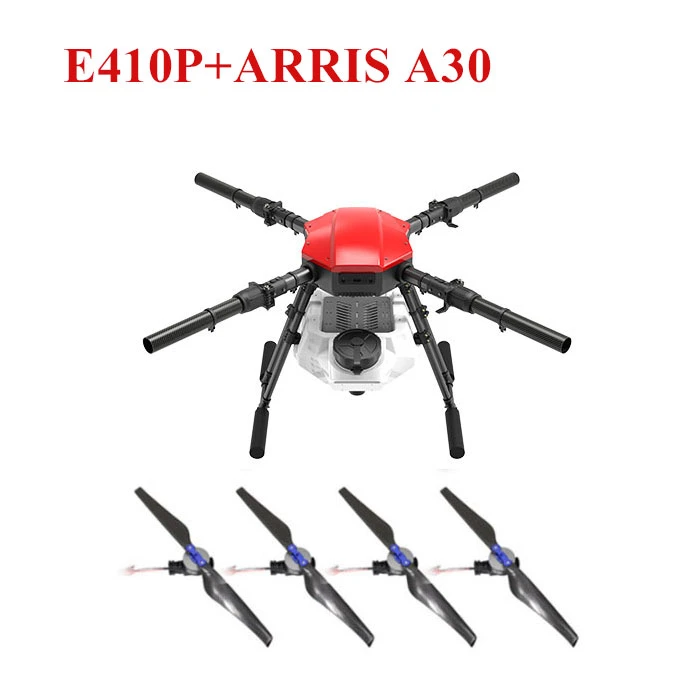

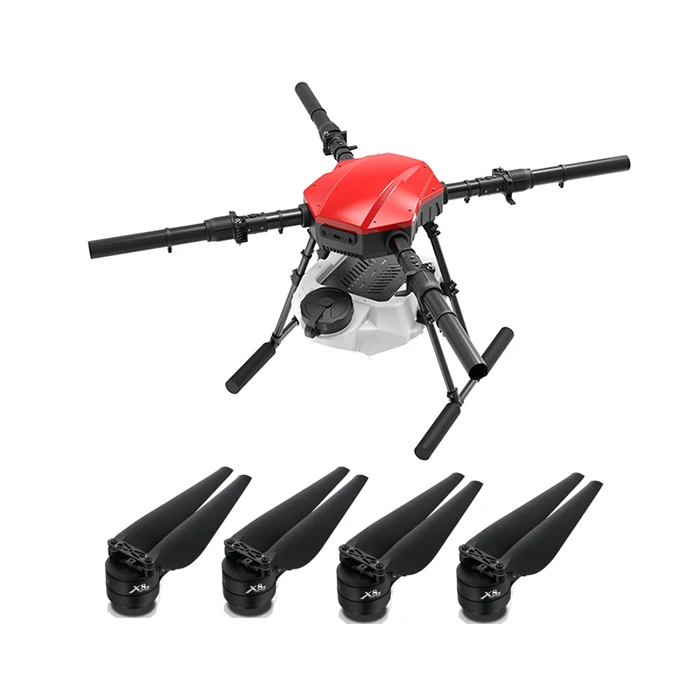

ARRIS E410P 4 Axis 10L Farm Drone Agriculture Spraying Drone with DJI E5000 or ARRIS A30 Propulsion Systems is compatible with all the flight controller, radio systems in the market. With this combo, you still need flight controller, radio&receiver, battery to make the agriculture drone work. If you need the complete version, you can check it here.

The E410P Series agriculture drones continues the classic design elements of the old E series. It adopts red and blue color matching, a streamlined body design, and the whole body is waterproof, without fear of high pressure washing. The new P series upgrade product adopts a new integrated molding process. Complex to simple, the fuselage is integrated from dozens of original parts into a whole, and the fuselage is made of high-strength and impact-resistant materials, which are strong and anti-fall.

The force-bearing structure of the fuselage adopts a double fixing method of clamping and limiting at many key points, so that the entire fuselage will not cause structural displacement due to long-term use, and it also makes installation and positioning easier.

There reserved a detachable camera installation parts in front of the fuselage, which can be installed or closed according to own needs.

The power distribution board in the center of the fuselage integrates all power supply plugs to separate the power supply from the signal and minimize interference

The new product continues the classic foldable body design, using threaded locking and folding parts, which are stable and not loose, and the volume is small after folding, which is convenient for transportation and transition.

Specifications:
Digonal Wheelbase: 1416mm
Folding Dimensions: 700x799x567mm
Unfolded Dimensions: 1780x1780x567mm
Arm Diameter: 40mm
Payload: 10L
Frame Weight: 6kg
Frame with power equipement: about 12kg
Max take off weight: 26kg
Spray lance width: 1800mm
Spraying swath: 4-3m (flight height is 1.5m to 2m)
Main arm length:216mm
Power source: Battery
Power Connector: AS150U
Flight time: 10 to 15 minutes (with 12S 16000mah Lipo)
Flight speed: 0-12M/S
Spray speed: 0-8M/S
Spray flow: 0.2-4L/min
Flying downward airflow: 4-15m/s
Operation temperature:10~50℃

Hobbywing X8 Power System for Agricultural Drones

X8 Power System for Agriculture Drones
Specifications	Max. Thrust	15.3kg/Axis (48V, Sea Level )
	Recommended LiPo Battery	12S LiPo
	Recommended Takeoff Weight	5-7kg/Axis(48V，Sea Level)
	Combo Weight	1040g
	Waterproof Rating	IPX7
	Operating Temperature	-20℃~65℃
Motor	Stator Size	81*20mm
	KV Rating	100 rpm/V
	O.D of Carbon Fiber Tube	Φ35mm/Φ30mm (*Tube Adapter will be Needed)
	Bearing	NSK Ball Bearing (Waterproof)
ESC	Recommended LiPo Battery	6-12S LiPo
	PWM Input Signal Level	3.3V/5V (Compatible )
	Throttle Signal Frequency	50-500Hz
	Operating Pulse Width	1100-1940 μs (Fixed or cannot be Programmed )
	Max. Input Voltage	52.2V
	Max. Input Current (Cont.)	80 A(w/ Good Heat Dissipation )
	Max. Peak Current (10s)	100 A (w/ Good Heat Dissipation )
	BEC	No
	Nozzle Mounting Holes	Φ28.4mm-2*M3
Propeller	Diameter×Thread Pitch	29×11 inch
Propeller	Weight	180g

Package Included:
EFT E410P 4 Axis 10L Agriculture Drone frame x 1
10L water tank x 1
Brushless spraying system x 1
Hobbywing X8 Propulsion system x 4 (2CW+2CCW)

Note: Radio, receiver, battery are not included. The default power plug is AS150U. If your battery is AS150 or XT90S, please write in the comment bar when you place the order.
