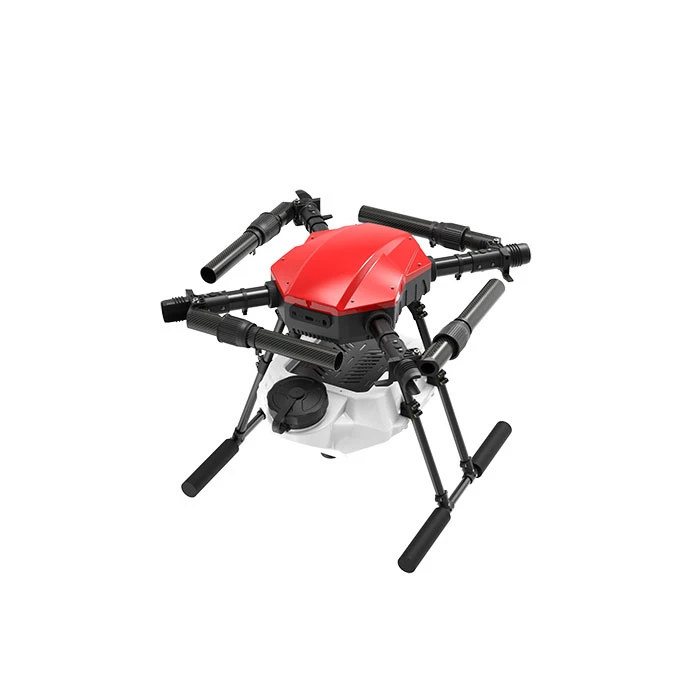

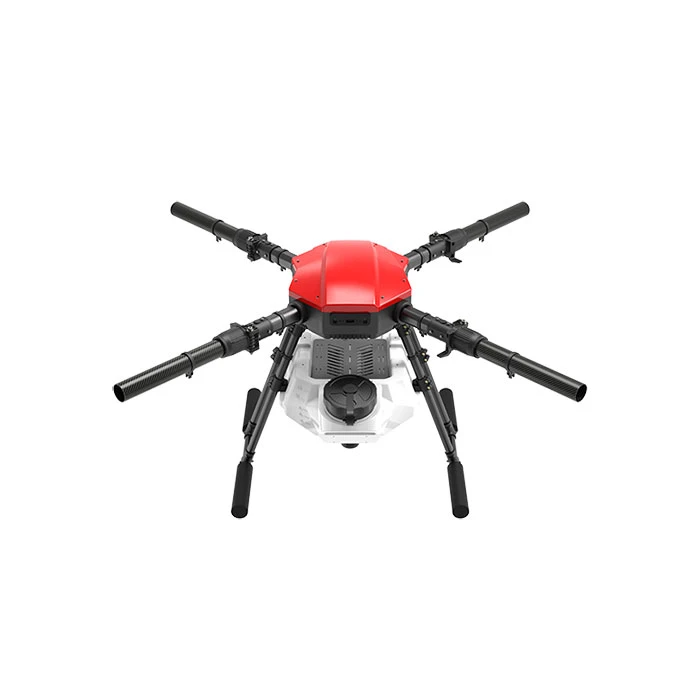

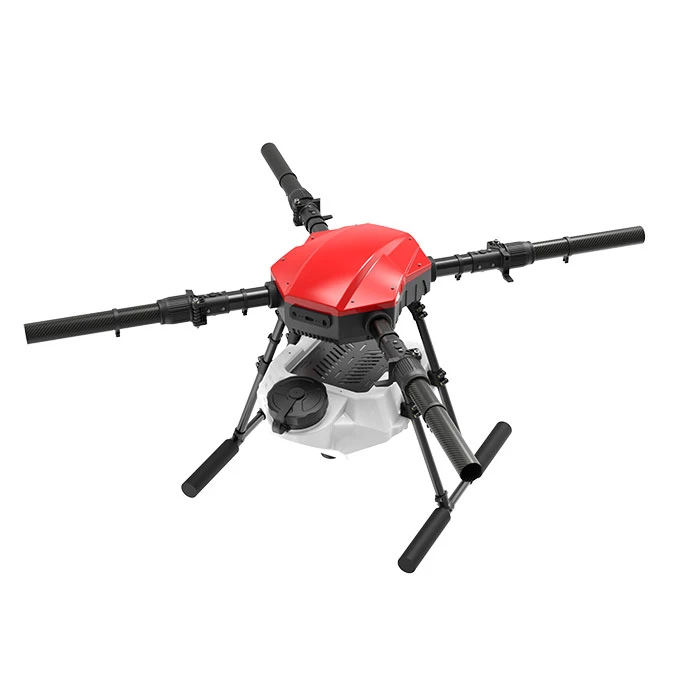

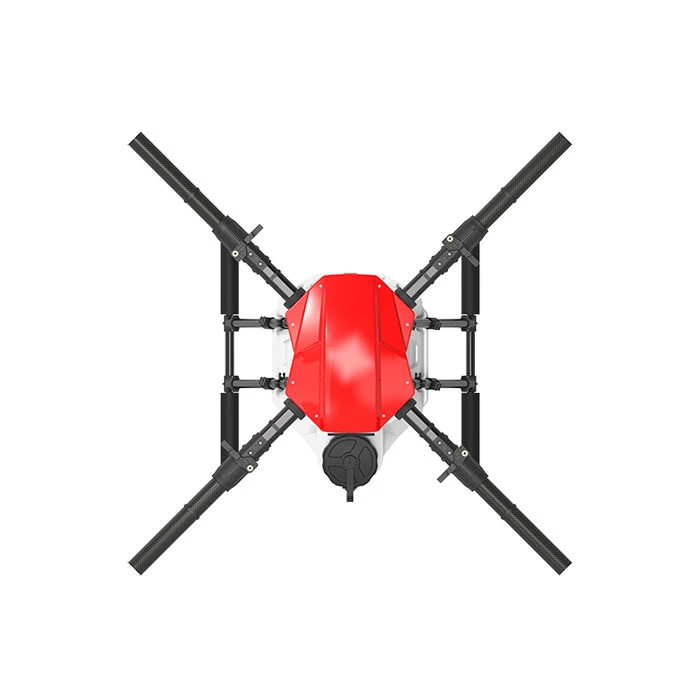

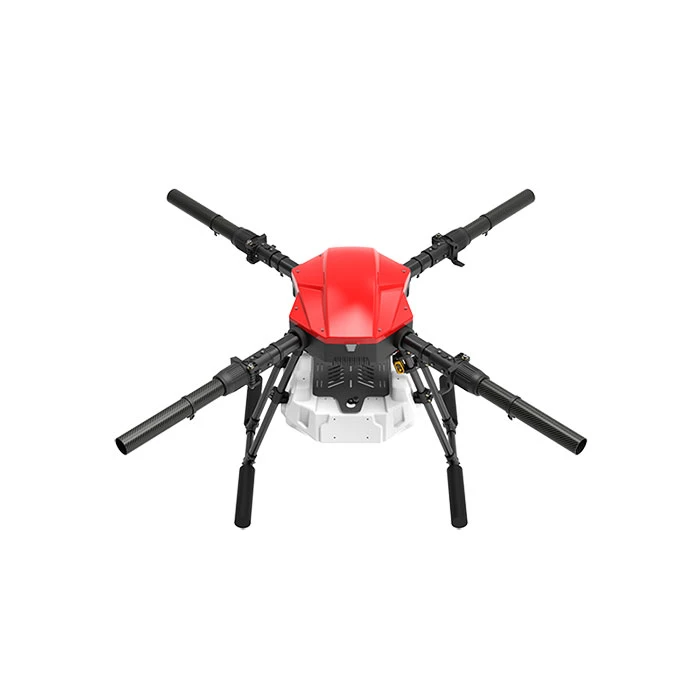

ARRIS E410P 4 Axis 10L 10KG Farm Drone UAV Agriculture Spraying Drone Frame Kit

ARRIS E410P 4 Axis 10L 10KG Farm Drone UAV Agriculture Spraying Drone Frame Kit - Image 2

ARRIS E410P 4 Axis 10L 10KG Farm Drone UAV Agriculture Spraying Drone Frame Kit - Image 3

ARRIS E410P 4 Axis 10L 10KG Farm Drone UAV Agriculture Spraying Drone Frame Kit - Image 4

ARRIS E410P 4 Axis 10L 10KG Farm Drone UAV Agriculture Spraying Drone Frame Kit - Image 5

ARRIS E410P 4 Axis 10L 10KG Farm Drone UAV Agriculture Spraying Drone Frame Kit - Image 6

ARRIS E410P 4 Axis 10L 10KG Farm Drone UAV Agriculture Spraying Drone Frame Kit - Image 7

ARRIS E410P 4 Axis 10L 10KG Farm Drone UAV Agriculture Spraying Drone Frame Kit

Name: Agriculturedronesshop.com | Fashion best design ARRIS E410P 4 Axis 10L 10KG Farm Drone UAV Agriculture Spraying Drone Frame Kit
SKU: CMMTD 9846663507
Price: 95.99 USD
Availability: InStock

Original price was: $383.00.Current price is: $95.99.

Arm Size

Spraying System

Clear

SKU: CMMTD 9846663507 Categories: AGRICULTURE DRONE, Agriculture Drones

Multiple payment options for secure shopping with SSL
Have the best deals
The home of quality products.
Experience the difference quality makes.

PRODUCT DESCRIPTION

E410P 4 axis 10L agriculture drone is the upgrade version of the E410S. Compared with the E410S, the biggest differences of it is integration. The structure of the E410P’s fuselage has been improved. The body is different from the original carbon structure, and the improved product is processed by plastic injection molding.

The E410P Series agriculture drones continues the classic design elements of the old E series. It adopts red and blue color matching, a streamlined body design, and the whole body is waterproof, without fear of high pressure washing. The new P series upgrade product adopts a new integrated molding process. Complex to simple, the fuselage is integrated from dozens of original parts into a whole, and the fuselage is made of high-strength and impact-resistant materials, which are strong and anti-fall.

The force-bearing structure of the fuselage adopts a double fixing method of clamping and limiting at many key points, so that the entire fuselage will not cause structural displacement due to long-term use, and it also makes installation and positioning easier.

There reserved a detachable camera installation parts in front of the fuselage, which can be installed or closed according to own needs.

The power distribution board in the center of the fuselage integrates all power supply plugs to separate the power supply from the signal and minimize interference

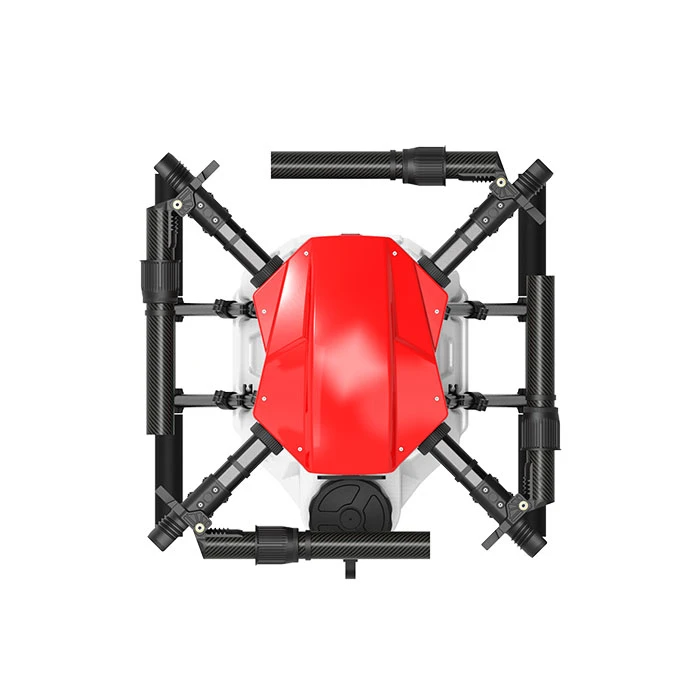

The new product continues the classic foldable body design, using threaded locking and folding parts, which are stable and not loose, and the volume is small after folding, which is convenient for transportation and transition.

Specifications:
Digonal Wheelbase: 1416mm
Folding Dimensions: 700x799x567mm
Unfolded Dimensions: 1780x1780x567mm
Arm Diameter: 40mm
Payload: 10L
Frame Weight: 6kg
Frame with power equipement: about 12kg
Max take off weight: 26kg
Spray lance width: 1800mm
Spraying swath: 4-3m (flight height is 1.5m to 2m)
Main arm length:216mm
Power source: Battery
Power Connector: AS150U
Flight time: 10 to 15 minutes (with 12S 16000mah Lipo)
Flight speed: 0-12M/S
Spray speed: 0-8M/S
Spray flow: 0.2-4L/min
Flying downward airflow: 4-15m/s
Operation temperature:10~50℃

Package Included:
ARRIS E410P 4 Axis 10L Agriculture Drone frame x 1
10L water tank x 1
Brushless spraying system x 1 (optional)

Brushless spraying system included the following items:
High Pressure Spray Nozzle with the Extension Pipe (UF0129) X 4
12S Brushless Pump with Integrated ESC (UF0125) x 1
8mm-10mm-8mm water pipe joint x 1
8mm-8mm-8mm water pipe joint x 2
M3 x 12 screws x 8

Note: There are two versions of the arm length, one is 320MM long, if you use the X8 power system or ARRIS A30 Power system, choose this length is OK. The other is 380mm long, if you use DJI E5000 Advance or T10 power system, please choose this length.
