ARRIS E410S 4 Axis 10kg UAV Agricualtural Spraying Drone JIYI K++ FC SIYI AK28

Note: All the versions are not assembled. You need to assembel tne tune the drone by yourself.

ARRIS E410S is the upgrade version of the popular E410 4 AXIS 10L UAV agriculture drone. The main difference between the two is the folding parts. As all we know, the folding parts on those agriculture drones are really important. The new folding parts are injection-molded and the structure is more stable and durable.

The unique L-shaped bracket design can support the motor when the arm is folded, avoiding the sagging of the arm during transportation.


 With the 12S 16000mah to 18000mah lipo battery, it can fly about 9 to 15 minutes. During our test, with 12s 18000mah lipo, it can spraying two of the 10L liquid. It adopts the embracing folding method, easy to carry.


Specifications:
Digonal Wheelbase: 1300mm
Folding Dimensions: 570x570x500mm
Payload: 10L
Frame Weight: 6.5kg
Frame with power equipement: 10kg
Max take off weight: 25kg
Spray lance width: 1800mm
Spraying swath: 4-3m (flight height is 1.5m to 2m)
Main arm length:216mm
Folding arm size:32mmx35mmx230mm
Power source: Battery
Nozzle: 4pcs
Flight time: 10 to 15 minutes (with 2pc 6S 16000mah Lipo)
Flight speed: 0-12M/S
Spray speed: 0-8M/S
Spray flow: 0.2-4L/min
Flying downward airflow: 4-15m/s
Operation temperature:10~50℃


Main Features:
Waterproof Body
With the new industrial design, the entire body is waterproof. New integrated power system,adopts FOC sinusoidal drive scheme,strong power, high efficieny and super durable.The body is streamlined and full of science and technology.It is overall waterproof, can be washed directly with water.

Brand new folding parts
The new folding parts are injection-molded and the structure is more stable and durable.The unique L-shaped bracket design can support the motor when the arm is folded, avoiding the sagging of the arm during transportation.

Cool taillights, Quick tuning
Unique hexagon tail light design, with the flight controlller indicator built-in installation, waterproor and concise. There is USB data dable interface in the button,Settings can be adjusted without removing the canopy, more convenient.

Hidden distribution board
The new distribution board adopts a separate and hidden design to isolate the power supply and signals, optimize the internal electromagnetic environment of the aircraft, and provide a larger space for flight control installation, which makes the wiring more concise.

Reserved equipment expansion port
There are several equipement expansion ports reserved at the side and botton of the frame. It is convenient to install RTK, water pump, radar and other extended equipment under the premise of waterproof protection.

Increase the Pesticide tank inlet
The overall expansion of the drug-adding port reduces the spillage of the liquid and makes the dosing process smoother.

Reinforced power plug
The main power cable exits from the side,and the battery interface is fixed on the side of the landing skid to avoid obstruction of the plug when replacing the battery. The plug connector is more secure and stronger.Two version of connectors are optional:AS150 and XT150U.

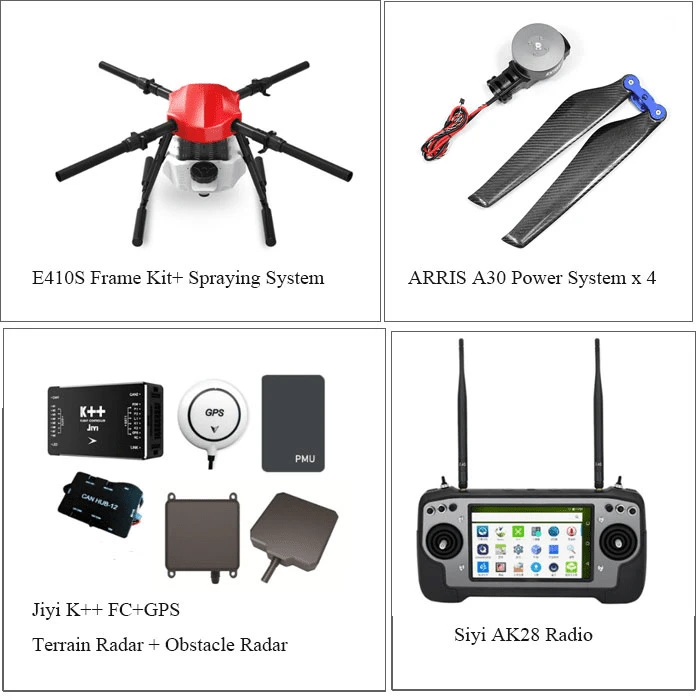

Package Included:
ARRIS E410s 4 Axis 10L drone frame x 1
Spaying system x 1
ARRIS A30 8318 120KV Brushless Motor 80A ESC 3095 Carbon Fiber Propeller Power Combo x 4 (2CW+2CCW)
Jiyi K++ Flight Controller Terrain Radar Obstacle Radar Flow Meter Flight Controller Combo X1
Siyi AK28 Agriculture Drone Transmitter Datalink Videolin 3in1 Radio with LCD screen x 1

Note: You still need to prepare battery and charger if you choose Combo 2. We suggest 2 pieces of the 6S 16000mah ba ttery or 1 12s 16000mah battery for it.


Some fully assembled pictures.

Wheat Spraying Test
