Sale!

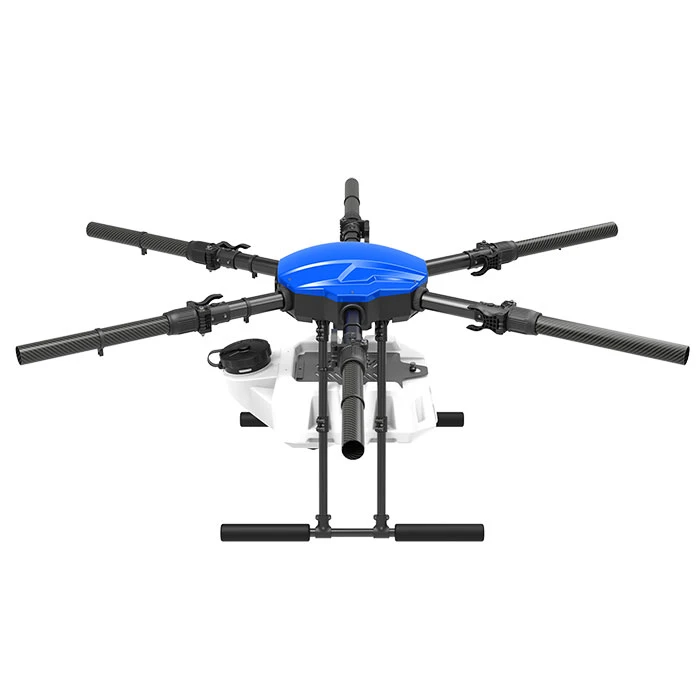

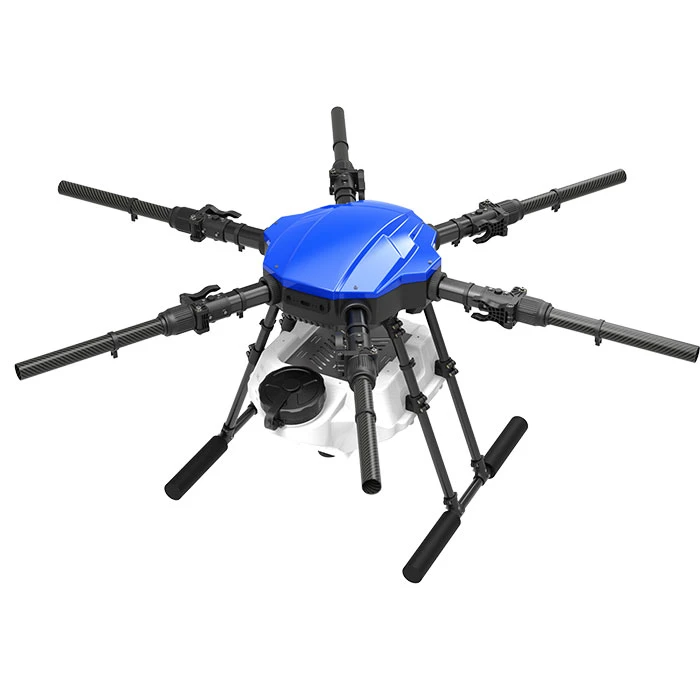

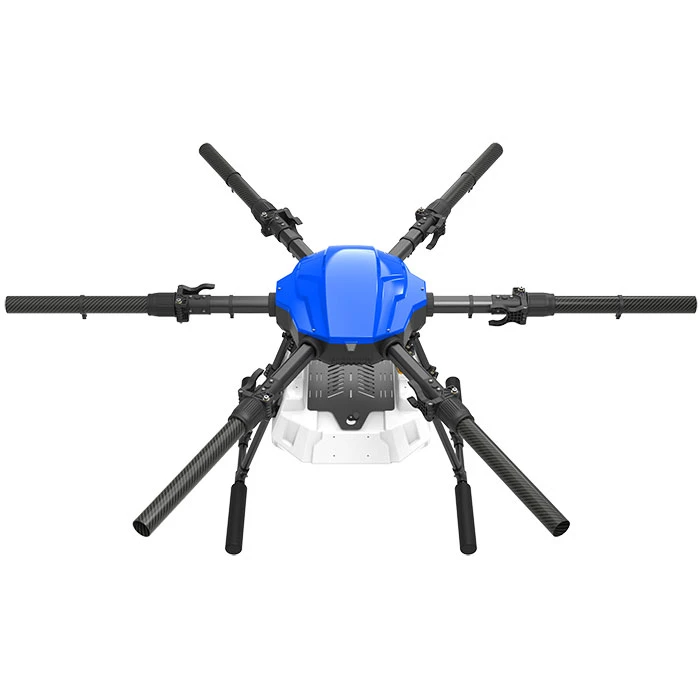

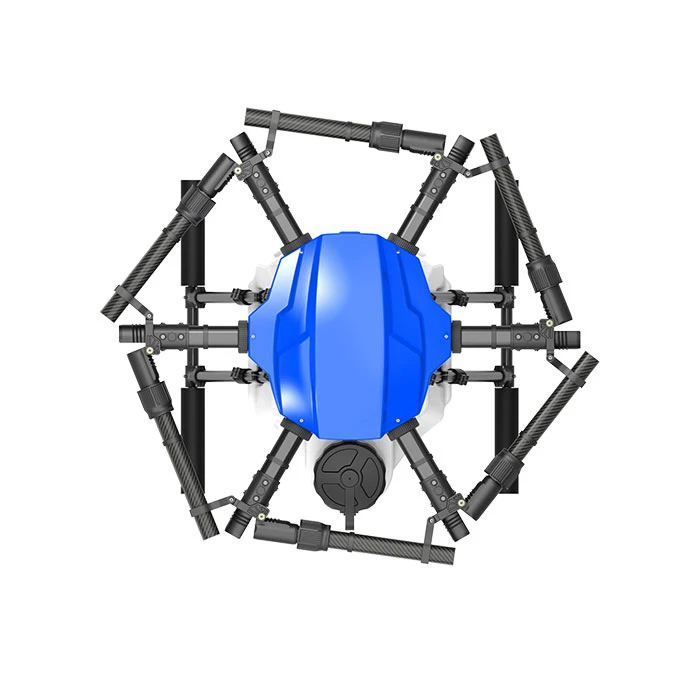

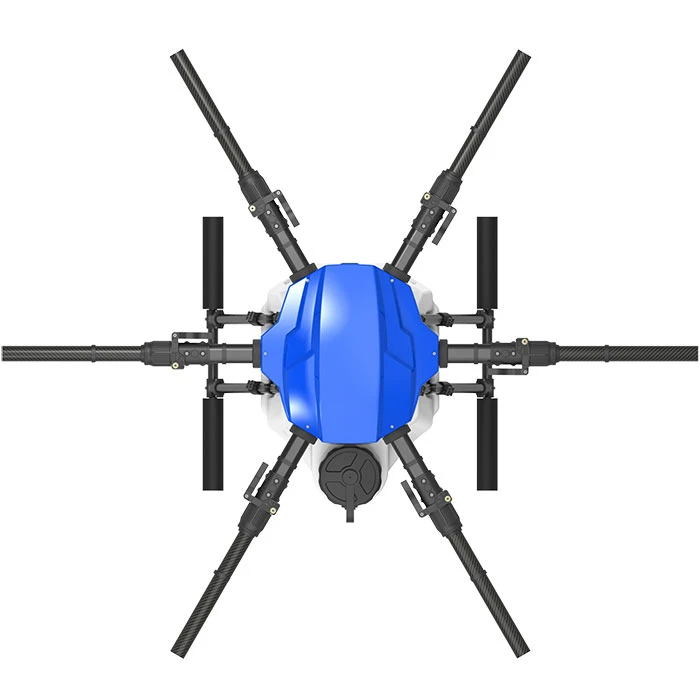

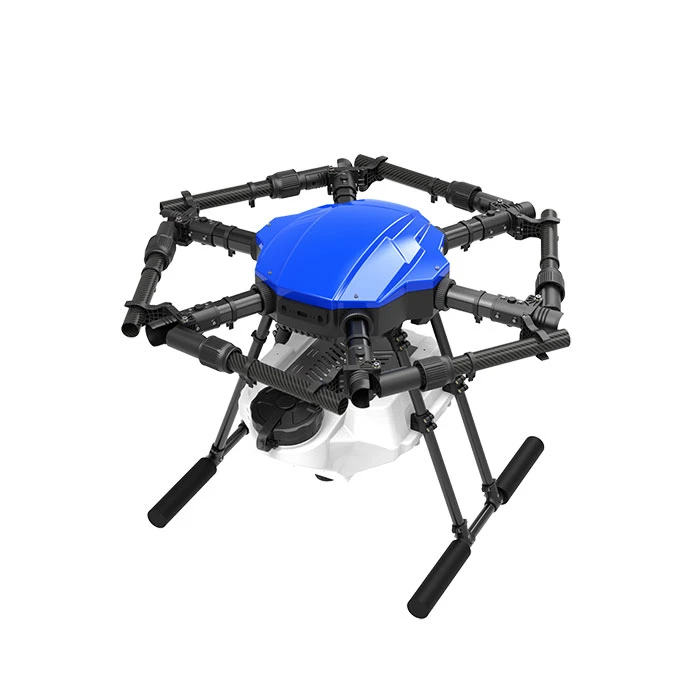

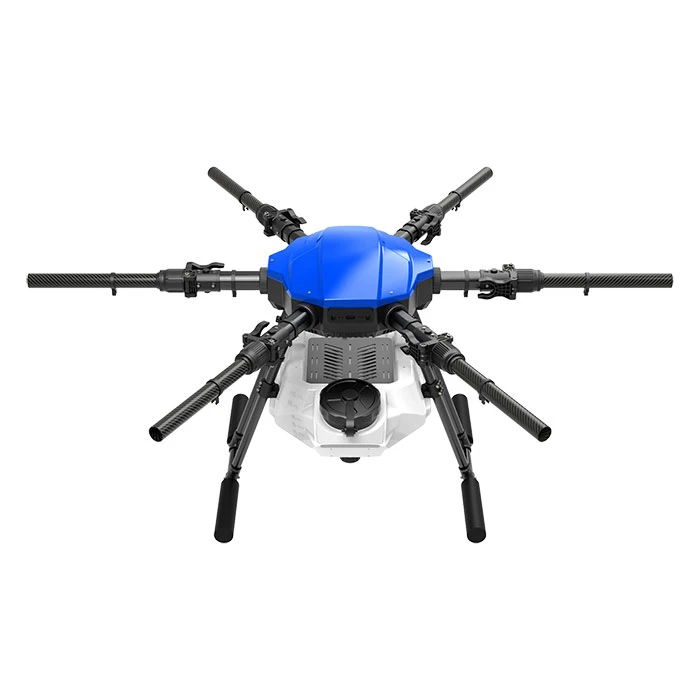

ARRIS E610P 6 Axis 10L Farm Drone Agriculture Spraying Drone Frame Kit

ARRIS E610P 6 Axis 10L Farm Drone Agriculture Spraying Drone Frame Kit - Image 2

ARRIS E610P 6 Axis 10L Farm Drone Agriculture Spraying Drone Frame Kit - Image 3

ARRIS E610P 6 Axis 10L Farm Drone Agriculture Spraying Drone Frame Kit - Image 4

ARRIS E610P 6 Axis 10L Farm Drone Agriculture Spraying Drone Frame Kit - Image 5

ARRIS E610P 6 Axis 10L Farm Drone Agriculture Spraying Drone Frame Kit - Image 6

ARRIS E610P 6 Axis 10L Farm Drone Agriculture Spraying Drone Frame Kit - Image 7

ARRIS E610P 6 Axis 10L Farm Drone Agriculture Spraying Drone Frame Kit

Original price was: $334.00.Current price is: $98.99.

SKU: CMMTD 3890668369 Categories: AGRICULTURE DRONE, Agriculture Drones

Multiple payment options for secure shopping with SSL
Have the best deals
The home of quality products.
Experience the difference quality makes.

PRODUCT DESCRIPTION

E610P 6 axis 16L agriculture drone is the upgrade version of the E610S. Compared with the E610S, the biggest differences of it is integration. The structure of the E610P’s fuselage has been improved. The body is different from the original carbon structure, and the improved product is processed by plastic injection molding

The E610P Series agriculture drones continues the classic design elements of the old E series. It adopts red and blue color matching, a streamlined body design, and the whole body is waterproof, without fear of high pressure washing. The new P series upgrade product adopts a new integrated molding process. Complex to simple, the fuselage is integrated from dozens of original parts into a whole, and the fuselage is made of high-strength and impact-resistant materials, which are strong and anti-fall.

The force-bearing structure of the fuselage adopts a double fixing method of clamping and limiting at many key points, so that the entire fuselage will not cause structural displacement due to long-term use, and it also makes installation and positioning easier.

There reserved a detachable camera installation parts in front of the fuselage, which can be installed or closed according to own needs.

The power distribution board in the center of the fuselage integrates all power supply plugs to separate the power supply from the signal and minimize interference

The new product continues the classic foldable body design, using threaded locking and folding parts, which are stable and not loose, and the volume is small after folding, which is convenient for transportation and transition.

Specifications:
Digonal Wheelbase: 1362mm
Folding Dimensions: 648x671x628mm
Unfolded Dimensions: 1844x1844x628mm
Arm Diameter: 40mm
Payload: 16L
Frame Weight: 6.5kg
Frame with power equipement: about 15kg
Take off weight: 37kg
Power source: Battery
Power Connector: AS150U
Operation temperature:10~50℃

Package Included:
ARRIS E610P 6 Axis 10L Agriculture Drone frame x 1
10L water tank x 1
Brushless spraying system x 1 (optional)

Brushless spraying system included the following items:
High Pressure Spray Nozzle with the Extension Pipe X 4
12S Brushless Pump with Integrated ESC x 1
8mm-10mm-8mm water pipe joint x 1
8mm-8mm-8mm water pipe joint x 2
M3 x 12 screws x 8
