ARRIS E616P 6 AXIS 16L Crop Sprayer UAV Agriculture Spraying Drone JIYI K++ FC SIYI AK28

E616P 6 axis 16L agriculture drone is the upgrade version of the E616S. Compared with the E616S, the biggest differences of it is integration. The structure of the E616P’s fuselage has been improved. The body is different from the original carbon structure, and the improved product is processed by plastic injection molding. E616P crop sprayer with the A30 power system is compatible with all the flight controller, such as PIX, DJI, JiYi,  Topgun FC and other electronic components in the market.

The E616P Series agriculture drones continues the classic design elements of the old E series. It adopts red and blue color matching, a streamlined body design, and the whole body is waterproof, without fear of high pressure washing. The new P series upgrade product adopts a new integrated molding process. Complex to simple, the fuselage is integrated from dozens of original parts into a whole, and the fuselage is made of high-strength and impact-resistant materials, which are strong and anti-fall.

The force-bearing structure of the fuselage adopts a double fixing method of clamping and limiting at many key points, so that the entire fuselage will not cause structural displacement due to long-term use, and it also makes installation and positioning easier.

There reserved a detachable camera installation parts in front of the fuselage, which can be installed or closed according to own needs.

The power distribution board in the center of the fuselage integrates all power supply plugs to separate the power supply from the signal and minimize interference

Specifications:
Digonal Wheelbase: 1362mm
Folding Dimensions: 648x671x628mm
Unfolded Dimensions: 1844x1844x628mm
Arm Diameter: 40mm
Payload: 16L
Frame Weight: 6.5kg
Frame with power equipement: about 15kg
Take off weight: 37kg
Power source: Battery
Power Connector: AS150U
Operation temperature:10~50℃

ARRIS A30 high efficient power combo is specially designed for Agricultures, UAV drone and other big thrust Multirotors. With the 8318 120KV brushless motor, 80A FOC esc and 30 inches carbon fiber propeller, it will provides your drone big thrust and strong power.

Product Features:
● ESC adopts a powerful and efficient 32-bit DSP control chip with a maximum operating frequency of 60 MHz.
● ESC adopts internationally renown brand MOSFET to suppress temperature rise according to low impedance circuit board and improve drive reliability.
● Field Oriented Control (FOC) method, sine wave drive, torque ripple is small. The motor operates quietly.
● Energy is recovered during deceleration, the driver program is perfectly compatible with motor and load, 5 to 7% more efficient than normal square wave driver, extending flight time.
● Accurate speed control, aircraft flight is more stable.
● Waterproof and corrosion-resistant, suitable for the harsh environment of Agriculture Spraying Drones
● Highlight LED light, color can be set according to your own demands
● Raise the refresh rate to 500 Hz and correspond to any flight controller. (Note: Throttle signal over 500 Hz is nonstandard signal)
● Aluminum alloy shell greatly improves cooling of ESC.
● Modular design for easier maintenance

Specifications:
Model: ARRIS A30 Power System
Battery compatible: 5-12S
Recommended thrust: 5-7 kg
Suitable arm diameter : 35 mm
Product weight: 1.2 kg
Maximum thrust: 16-16.5kg

Motor:
Model: 8318 120KV
No. of Cells: 5-12S
Outer diameter: 92mm

ESC:
Battery: 5-12s
Con. Current: 80A
Burst Current(10S): 100A
Solidified throttle: 1100-1950us

Propeller:
Size: 3095 30″ Carbon Fiber Folding propeller

Siyi AK28 Agriculture Drone Remote Controller
Siyi AK28 is comes with IUAV OS, a customized drone operating system powered by Andriod. The AK28 integraged with long-distance datalink and videolink comes with an HD FPV camera. It is designed and manufactured with the waterproof and dustproof ability on the industrial level for drone operations in extreme circumstances.With 7″ bult-in touchscreen high brightness monitor, you can know the situation in front of the drone in real time.

As a new generation of flagship flight control system, k++ combines the advantages of the classic flight control K3A, and strengthens the compatibility and multi-redundancy scheme to form a redundant redundancy control system with superior performance and strong reliability.

Equipped with exclusive agricultural App ground station, precise and convenient control
Personalized app tailored for agricultural sprayer drones, it can provide arbitrary polygon route for unregulated terrain, autonomous operation and improve work efficiency. It has a route memory function and can calculate the spray area, which helps the operator to grasp the dosage more accurately.

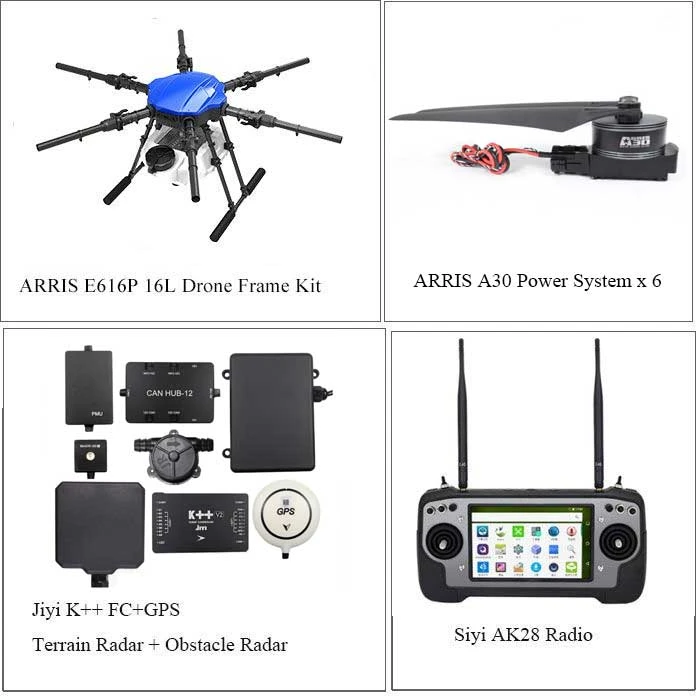

Package Included:
ARRIS E616P 6 Axis 16L Agriculture Drone frame x 1
16L water tank x 1
Brushless spraying system x 1
ARRIS A30 Propulsion system X 6 (3CW+3CCW)
Jiyi K++ Flight Controller Terrain Radar Obstacle Radar Flow Meter Flight Controller Combo X1
Siyi AK28 Agriculture Drone Transmitter Datalink Videolin 3in1 Radio with LCD screen x 1

Note: You still need to buy the battery and charger seperately. We suggest the 12S 22000mah battery, SKYRC PC1500 12-14S Battery charger for it.
