ARRIS G616 6 AXIS 16L UAV Agricultural Spraying Drone Farm Sprayer

WIth the popularity of the G06 and G20, here comes the G616 16L agriculture spraying drones. ARRIS G616 16L agriculture drone is specially designed for the popular 16L capacity. The effective capacity of the drone is 16L. It adopts a quick-release water tank and battery, compact body, light in weight and convenient to fold. Radar and FPV cameras are the first choice for entry-level plant protection drones, there reserved installation space for them on the drone frame.

Specifications:
Item Model: G616
Diagonal wheelbase: 1721mm
Size: 2301*2241*813mm
Folded Size: 1026*581*813mm
Arm Diameter: 40mm
Effective Capacity: 16L
Frame Weight: 7.35kg
Frame+Power System Weight: 14.85kg
Frame+Power+Spraying System Weight: 16.3kg
No-Load take-off weight: 22.6kg
Max take-off weight: 38.6kg
No-load flight Time: 22.5minutes (42.8V)
Full-Load flight time: 4 minutes (42.8V)
Manual Mode Flying time: 5 minutes 16 second
A-B Point Flying Time: 8 minutes 39 second
* Note: We use the ARRIS A30 powersystem, JIYI K++ V2 flight controller with Tattu 12S 22000mah battery to do the test.

Main Features:
Crossfolding Method

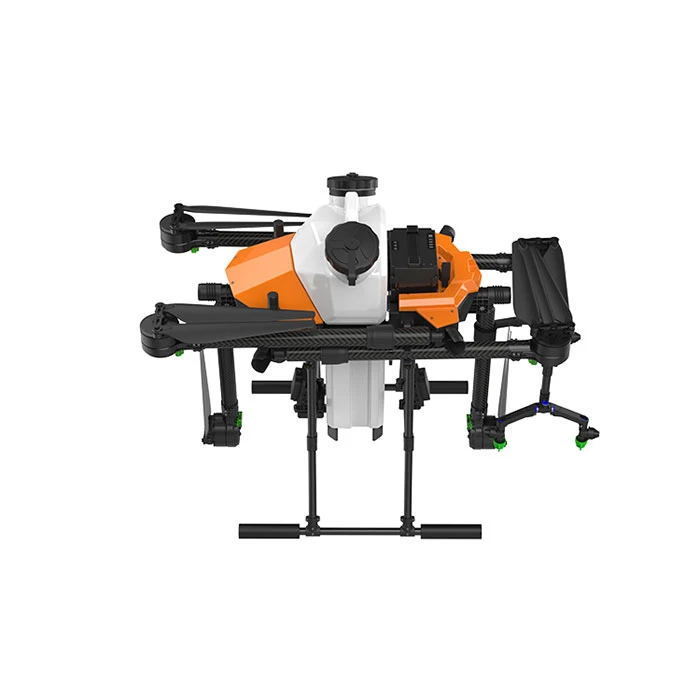

The arms of the G616 are folded in a staggered way, minisize the folding size, more convenient for transportation.

Integrated Fuselage Frame
The fuselage frame of the G410 Agriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the G410 has good durability and reliability.

Quick Release Battery & Tank
The water tank of the G616 adopts plug-in design, and the battery can be placed vertically in the battery compartment. For the G616, we suggest the 12S 22000mah lipo battery.

Dustproof and Waterproof
The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.

Great Expandability
The radar, fpv camera, pump and some other parts can install on the drone. The below picture is just for reference.

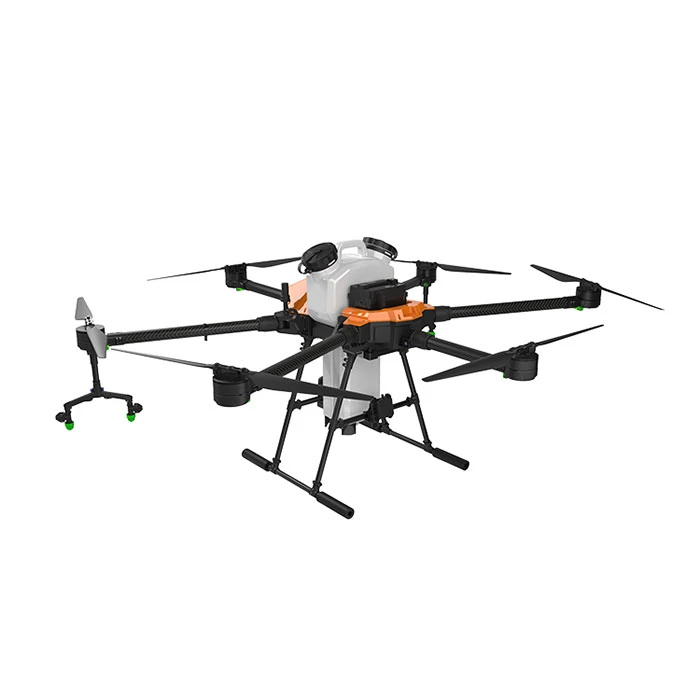

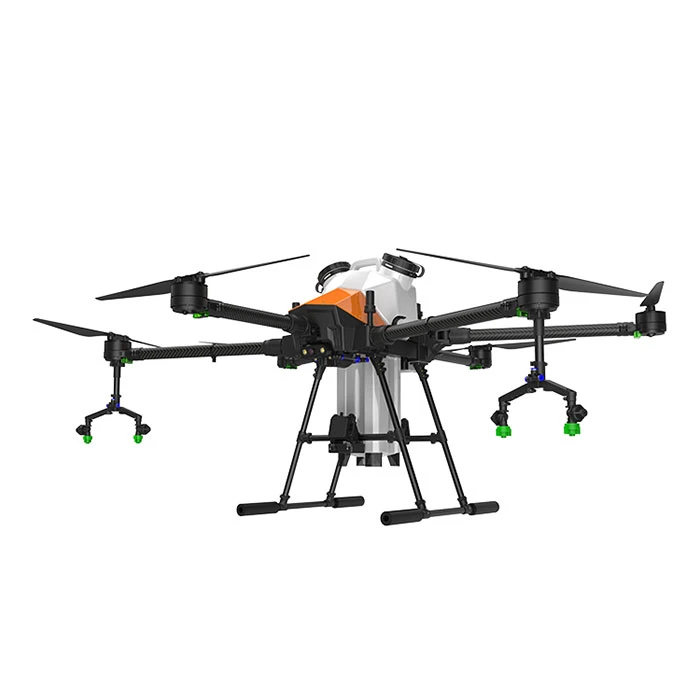

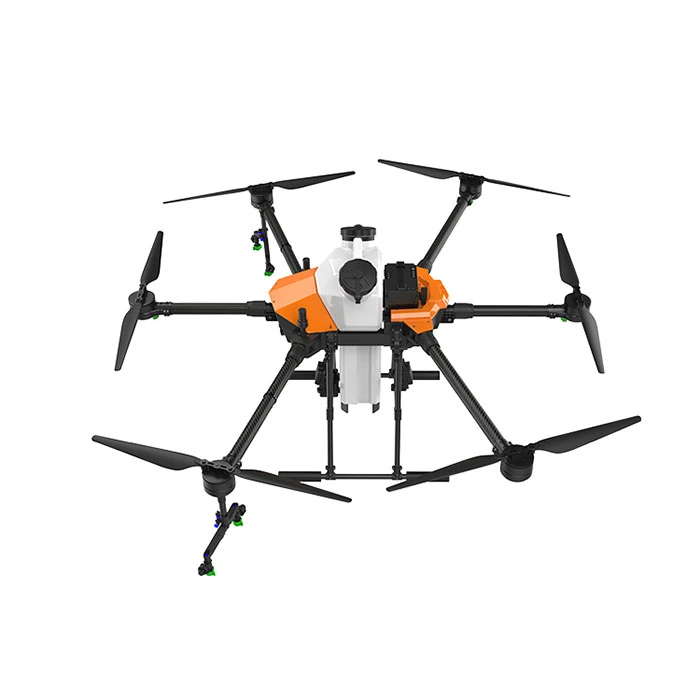

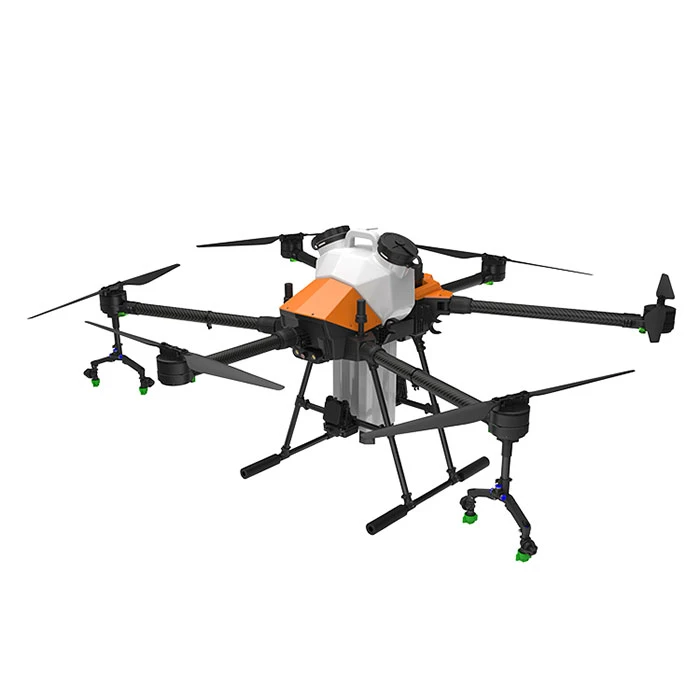

Here are some pictures of the assembled drones.

Frame Kit Package Included:
ARRIS G616 6 AXIS 16L Drone Frame Kit x 1
