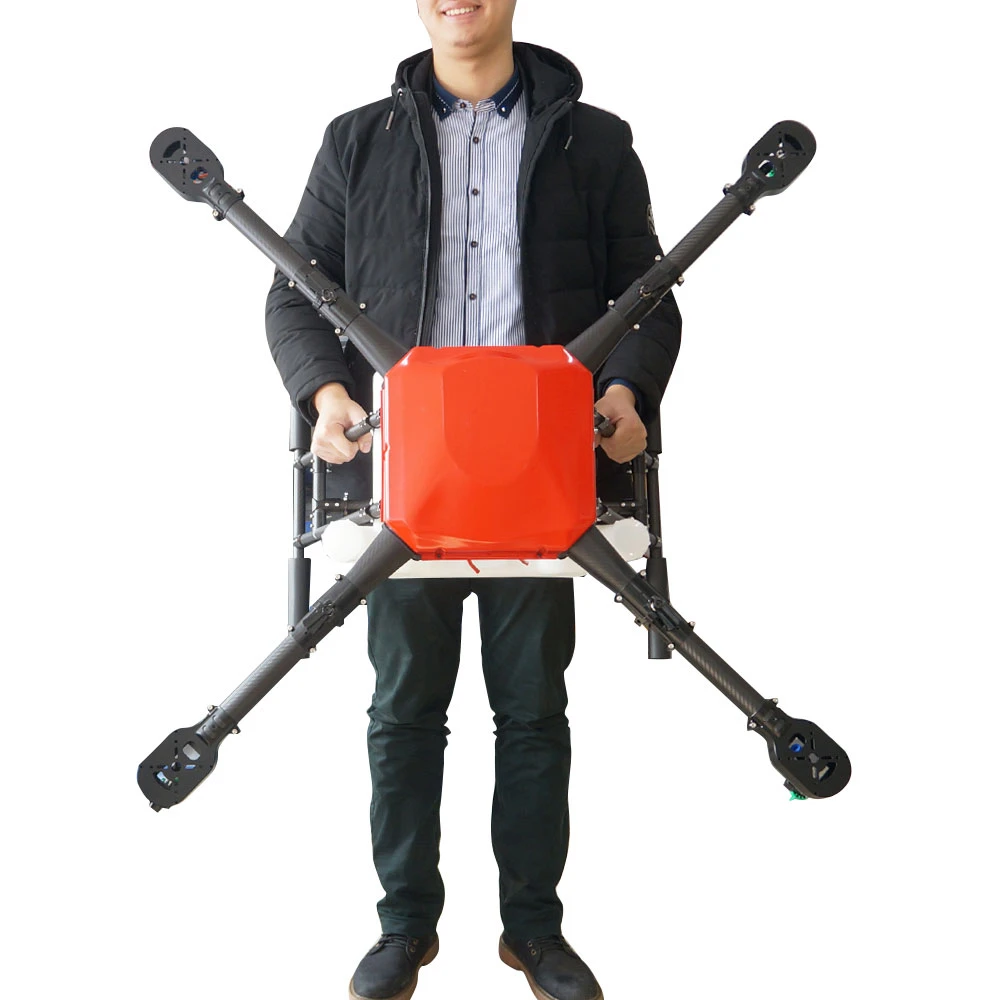

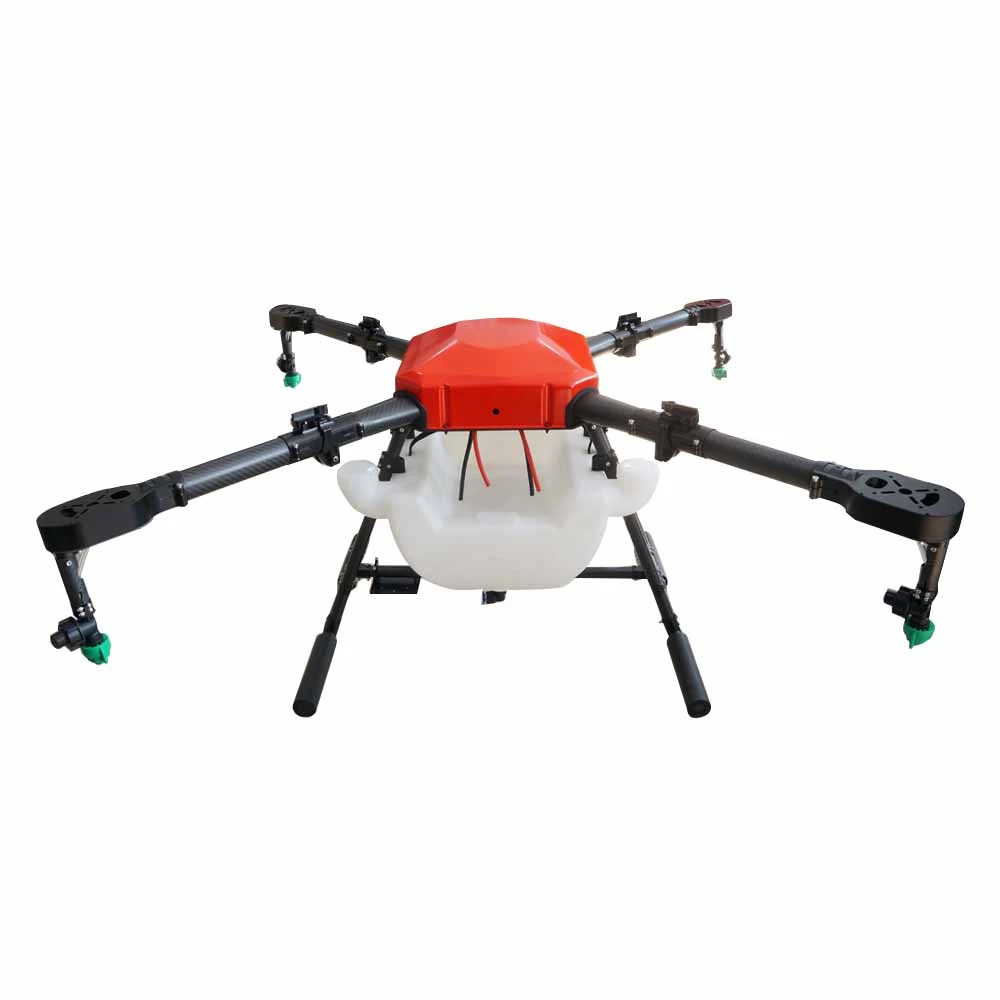

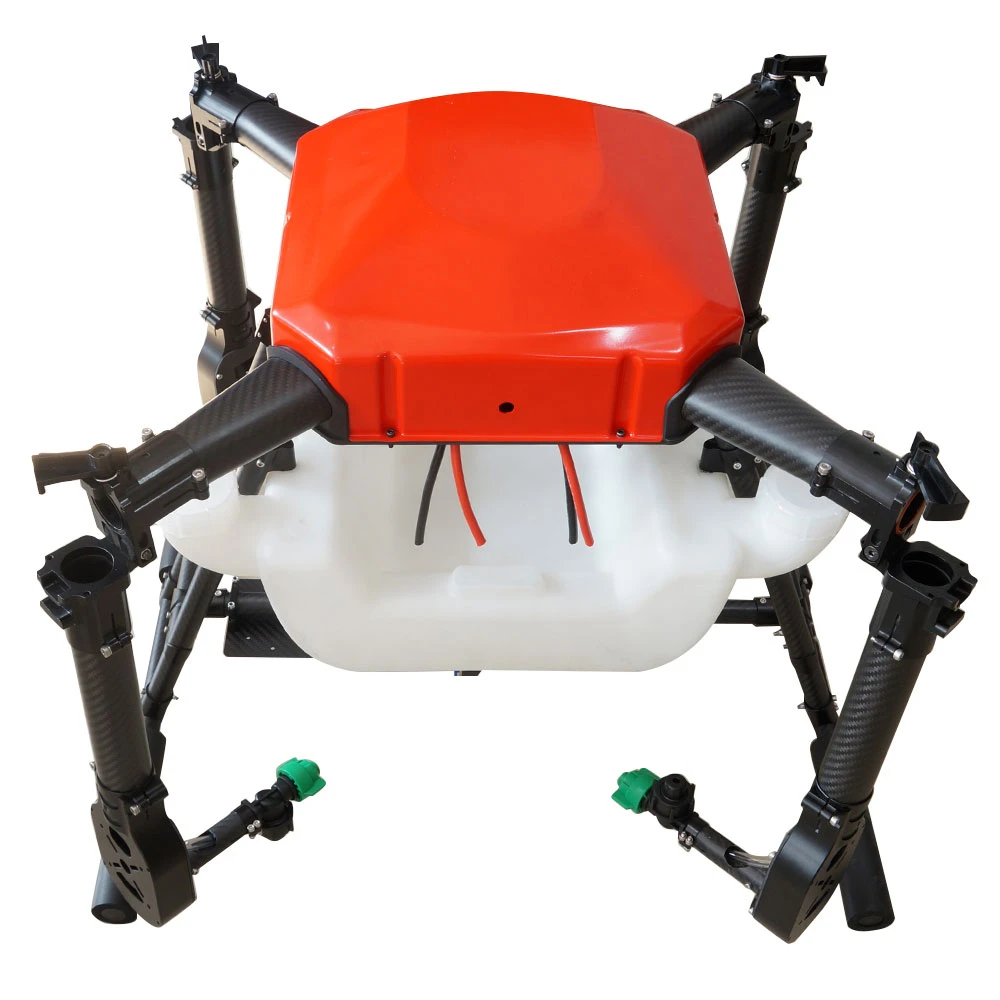

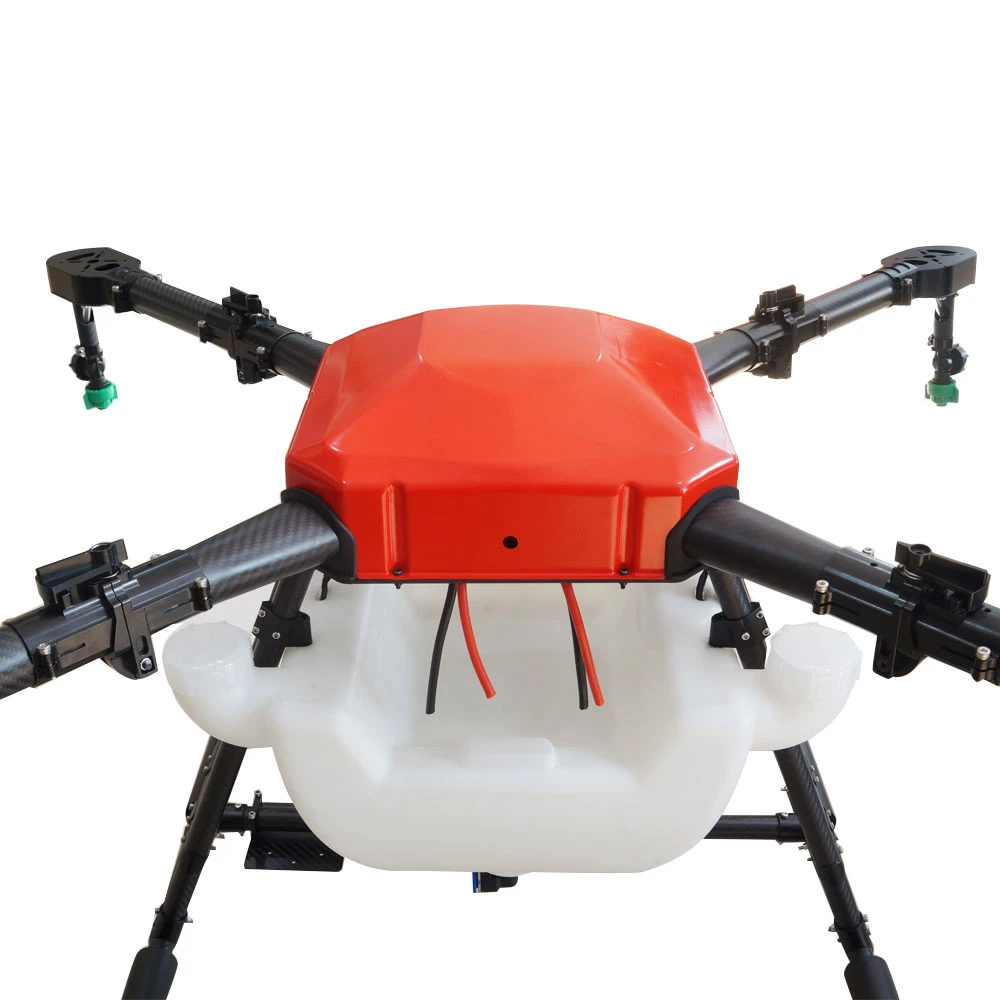

ARRIS YRX410 10L Capacity Agriculture Spraying Drone Frame Kit

ARRIS YRX410 10L high capacity quadcopter is specially designed for agriculture spraying.The fuselage adopts enclosed design,it can protect the components well,and it is washable, easy to maintain. The arm bring less vibration, strong and reliable.The frame adopts new designed folding method, easy to carry and transport.

Main Features:
1. The fuselage adopts enclosed desigh with special ring on the joint parts,which can effectively prevent liquid and dust entering. It is washable, convenient for maintenance
2. The arm is 40mm outer diamter carbon fiber,much stronger.It comes with 10L large capacity medicine chest, once loading, bigger spraying aerea.With the inverted battery design, the flight attitude is more stable, wind resistance is stronger.
3. The frame is perfectly suit DJI E5000, Flycolor F8 power combo, while the other compatible motor base are optional.Droop high-pressure nozzle, Mist under strong penetration pressure,evenly distributed.Hig power pumps, spray atomization is stronger, the performance is better.
4.The frame kit adopts the new designed vertical folding parts, which avoid the gap between the joint parts caused by the weight from the motor. With this, the drone has longer working life, the operation more reliable.
5. Convenient pull buckle structure, easy and quick to fold and unfold the drone.
Vertical folding design, the drone is reliable and solid in both foding and unfolding status.
6. Pin can used to fix during folding, the arm will not shake, it is easy to take and transport.
7. Built-in shock-absorbing rubber ring, significantly reducing the vibration caused by motor rotation.Increase additional security screw holes, add another protection for customer, clamly deal with all kinds of harsh enviroments.

Specifications:
Dimensions: 950mm x 950mm x 495mm (Arm unfolded, without propellers)
600mm x 600mm x 495mm (Arm folded)
Weight: 10kg
Volume: 10L
Endurance: More than 15 minutes
Spray Width: 3 to 5 Meters
Operation Efficiency: 5333 to 6666㎡ per takeoff-landing
Operation Efficiency: 666 to 1000㎡ per minutes

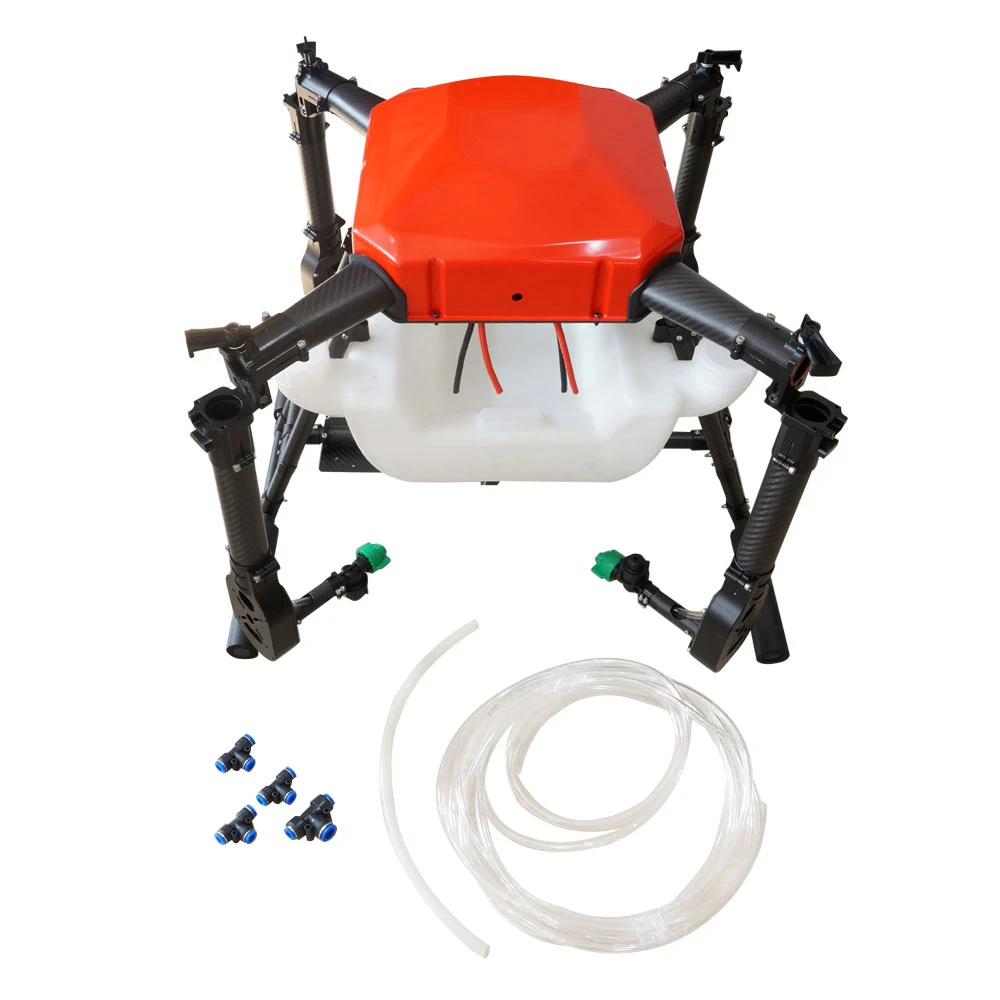

Package Included:
ARRIS YRX410 Agriculture Drone Frame Kit x 1
Spraying system x 1
