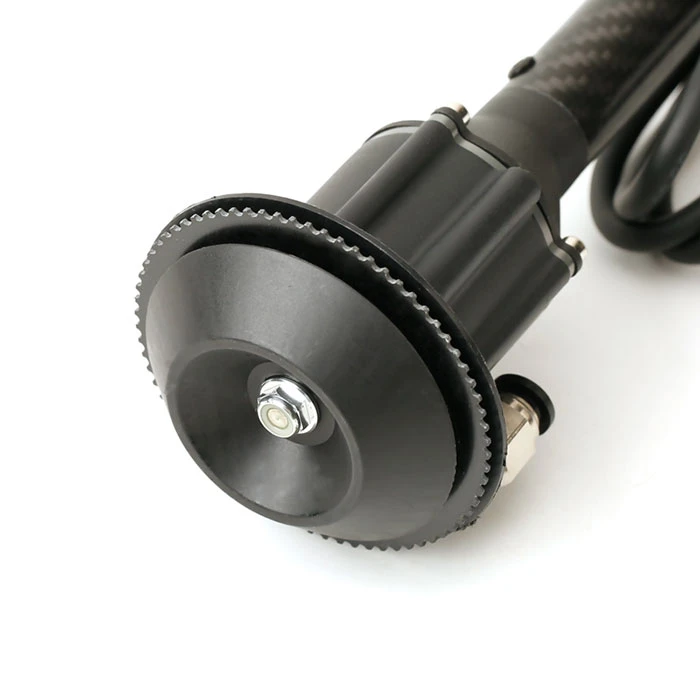

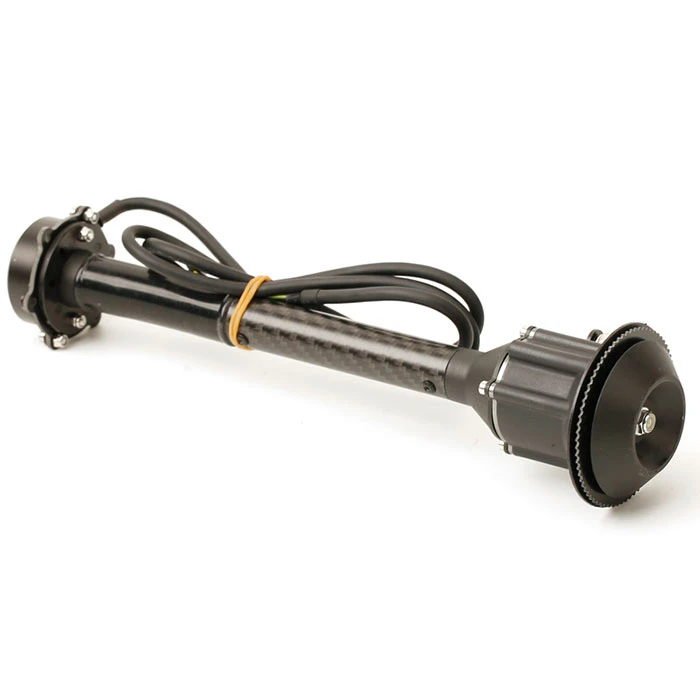

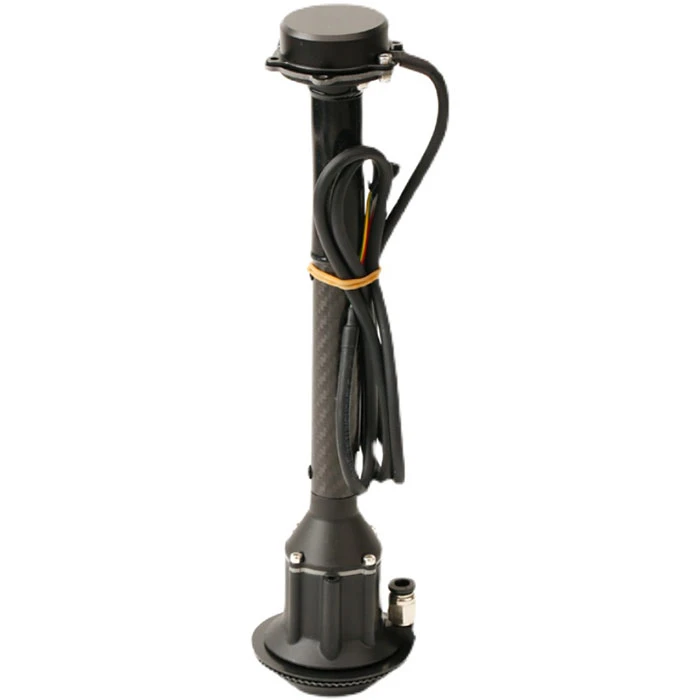

Centrifugal Spray Nozzle For Spraying Drone 12S 48V Brushless Centrifugal Nozzle

Parameter:
Voltage: 12-18S power supply
Speed: 16,000 rpm
Signal: PWM (1000-2000)
Power: 50-90W
Weight: 250g
Length: 293mm 183mm
Outgoing cable length: 1.25 meters
Max Flow:1.5L
Work Temperature:-10-50 Degree
Degree of protection:IP55
Control Method: Stepless speed regulation
Inlet and outlet pipe diameter:6MM
Plug: Quick Plug

Cable Definition:
Red — Positive
Black — Negative
White — Signal
Yellow — Ground

Note:
The nozzle cannot run idly, and the water pump needs to be turned on at the same time (need the flow of liquid medicine to cool the motor of the nozzle).
When you use 12S power supply, use the sprinkler rotation speed at 95% (analog 1000-1950).
When you use 14S power supply, use the sprinkler rotation speed at 85%  (analog 1000-1850)
When you use 18S power supply, use the sprinkler rotation speed at 75%  (analog 1000-1750)
The nozzle must be turned off when the liquid medicine is finished.
Every time the operation is completed, a tank of clean water must be filled, plus cleaning fluid, the centrifugal nozzle is turned on, after spraying a tank of water, it is idling for 30 seconds. The purpose is to clean the residual pesticides to prevent corrosion, solidification, and damage to the motor bearings
This could prolong its working life.
We do not suggest you run it at full speed.
