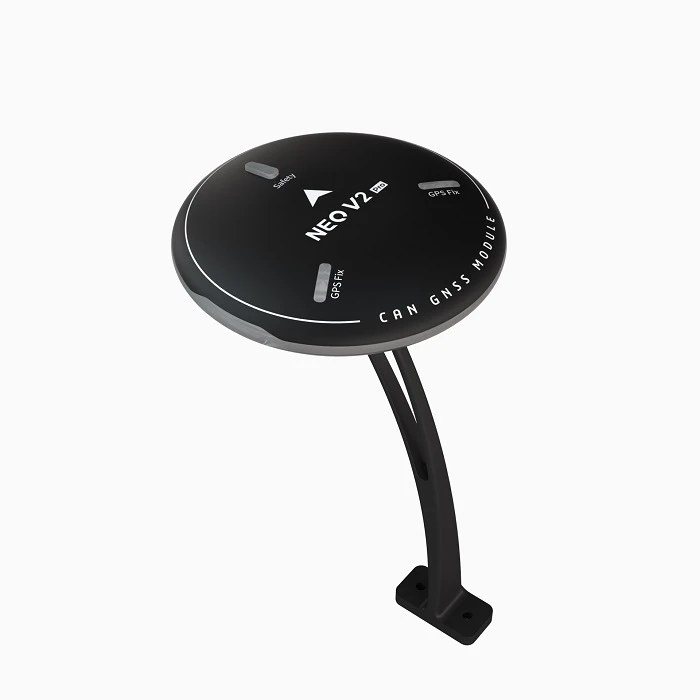

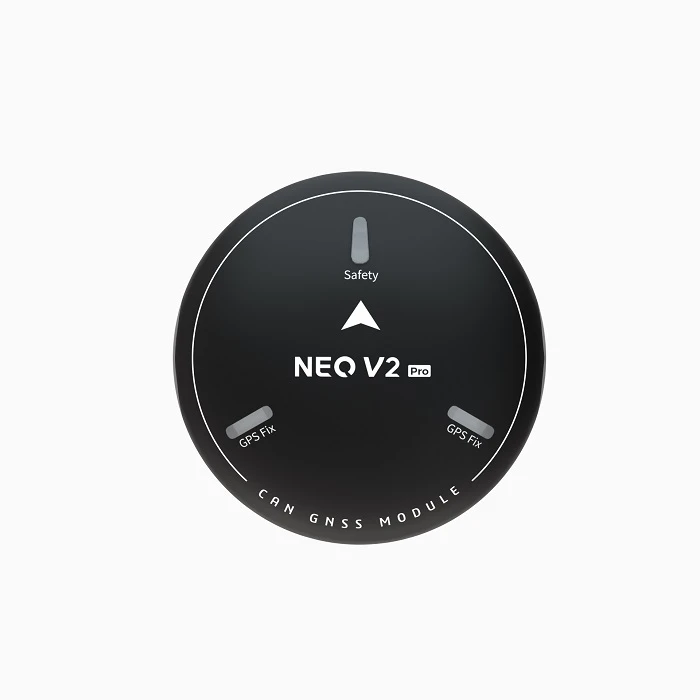

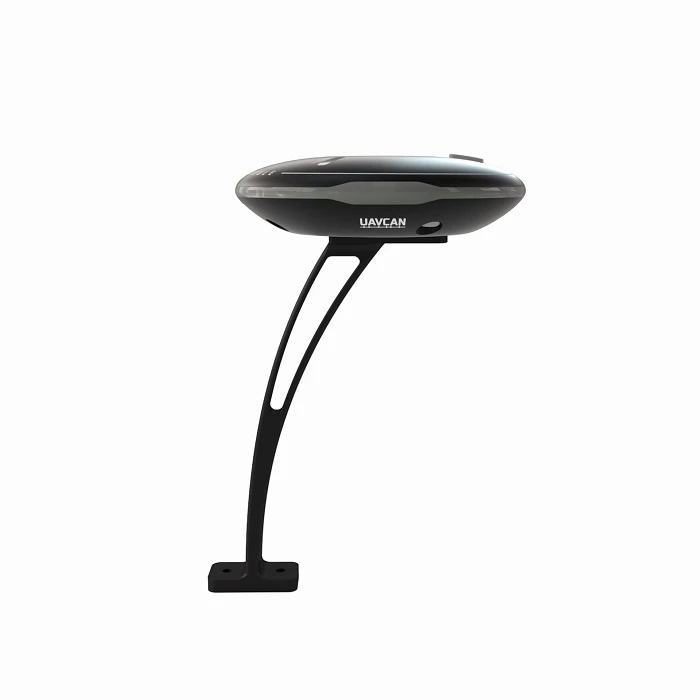

CUAV NEO V2 Pro CAN GPS Module GNSS Support Ardupilot FC For Multicopter

CUAV NEO V2 Pro CAN GPS Module GNSS Support Ardupilot FC For Multicopter - Image 2

CUAV NEO V2 Pro CAN GPS Module GNSS Support Ardupilot FC For Multicopter - Image 3

CUAV NEO V2 Pro CAN GPS Module GNSS Support Ardupilot FC For Multicopter

Original price was: $119.00.Current price is: $83.30.

SKU: CMMTD 2919653123 Categories: Flight Controller/GPS, MULTI-ROTORS

Multiple payment options for secure shopping with SSL
Have the best deals
The home of quality products.
Experience the difference quality makes.

Description
Reviews (0)

PRODUCT DESCRIPTION

NEO V2 Pro is a GNSS positioning system based on the UAVCAN communication protocol.It integrated an industrial-grade compass,barameter,flight controller status lights,buzzer,and safety switch in one;It has high safety and strong anti-interference characteristics.

Neo V2 adopts SAW+LNA+SAW dual filtering design,which effectively avoids the influence of remote control,digital transmission,and 4G signal on GPS positioning reception.

Specification:
Processor: STM32F412
Compass: RM3100
Barometer: MS5611
GNSS Receiver: Ublox M8N
GNSS Concurrently: GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1I, Galileo E1B/C,SBAS L1
C/A:WAAS, EGNOS, MSAS, GAGAN
Nav. update rate: 10HZ(MAX)
Position Accuracy: 2M
Acquisition:
Cold Start: 26S
Hot Start: 1S
Aided Start: 2S

Sensitivity:
Tracking and nac. -167dBM
Cold Start Hot Start -148dBM
Reacquisition -160dBM
Protocol: UAVCAN
Firmware Upgrade: Support
Flight Controller Support: Ardupilot
Interface Type: GHR-04V-S
Input Voltage: 4.7~5.2V
Operating Temperature: -10~70℃
Size: 60*60*16MM(Without Stand)
Weight: 33g(Without Stand)

Package Included:
1* NEO V2 Pro Module
1* GPS Stand
1*CAN Connect Cable
