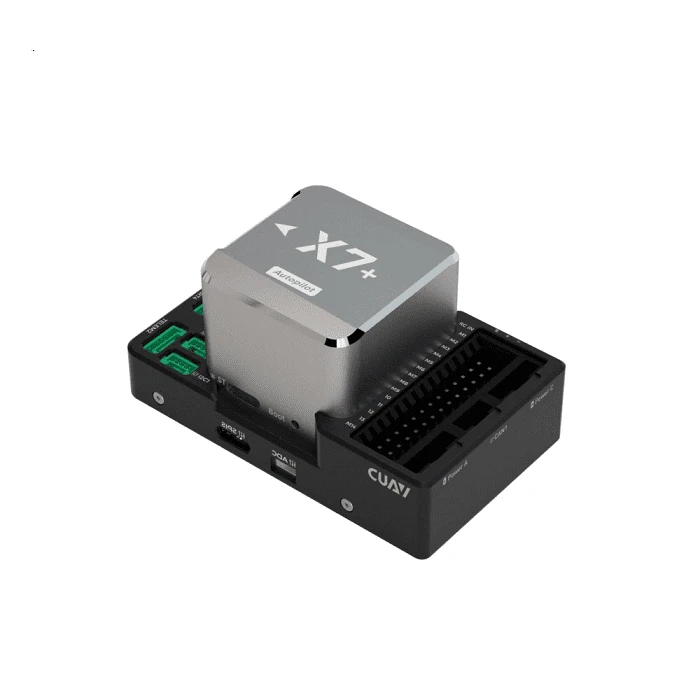

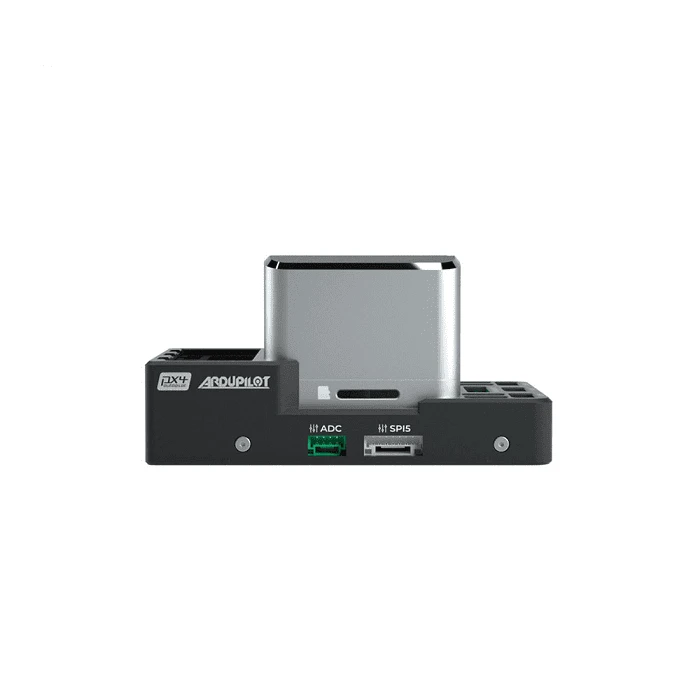

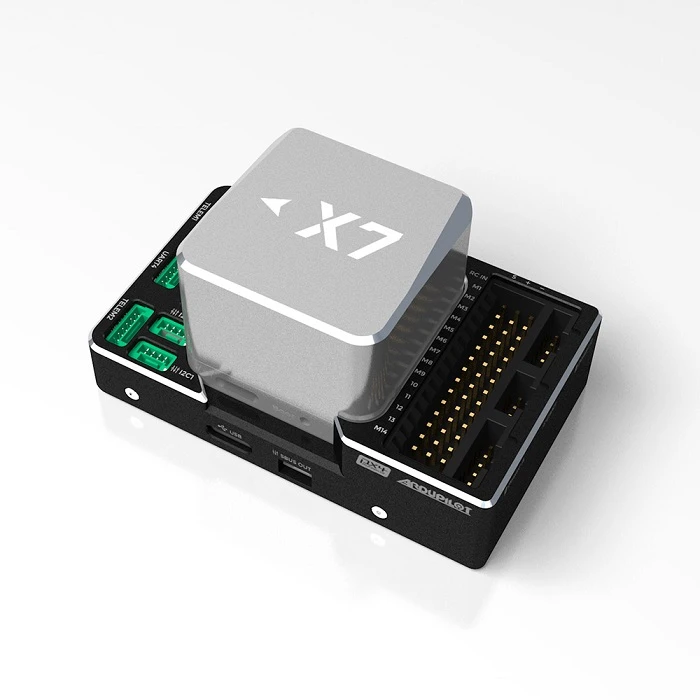

CUAV NEW X7+ Pixhawk Open Source Flight Controller For PX4 AutoPilot FPV RC Drone Quadcopter

CUAV X7 series autopilot use STM32H7 series processors,CPU operating frquency increased to 480Mhz,storage 1024K.flash 2048K,has a faster processor and larger storage,and use 512K EEPROM,can expand waypoints to 2048,bring more imagination to flight application.


Feature:
1.STM32H743 pwoerfull processor;
2.Aerospace grade ADI16470 accelerometer and gyroscope,which is often used in cutting-edge aerospace projects.It has excellent gyroscope and acceleration drift performance;
3.The built-in hight-precision sensor temperature compensation system makes the sensor work at constant temperature;
4.RM3100 industrial grade compass;
5.Core separate design:The X7+ flight controller integrated the main MCU and IMU into the CORE module and can be sold separately.uers can design the baseboard accoridng to the UAV structure to meet the individual needs of useds or purchase our CAN PDB  baseboard for use;
6.Better CUAV patented,shock absorption system;
7.Support LTE link Series 4G telemetry;

Spefication:
Brand Name: CUAV
Material: MetalTool
Size: 77*45.5*39mm
Weight:105g
Processor:STM32H743
Frequency:480mhz
Flash:2MB
RAM:1MB
Acce&Gyro:ICM-42688-P;ICM-20689;
Compass:RM3100
Barometer:MS5611X2
UART:5PCS
I2C:6(2 interface are integrated in GPS &SAFETY&UART4)
CAN:2
ADC IN:1(Support 6.6v/3.3v)
SPI:1
PWM OUT:14(M1-M12 support DSHOT protocol)
RC IN:1 support PPM SBUS DSM
RSSI:PWM or 3.3v analog voltage
Power In:2(Power A for ADC protocol,Power C for CAN protocol)
GPS port:1(other ports can be configured as GPS2,default is UART4)
Debug:1(UART7)
JATG:1
USB:Type-Cx1
TF slot:1
Rated voltage:4.5-5.5v
USB voltage:4.75-5.25v
Servo voltage:0-36V
Working temp:-20-85 degree
Firmware Support:Ardupilot 4.10/PX4 V1.12.3 or above version
Model Support:3-8 Multi-copter/helicpoter/VTOL/unmanned vehiclae/Rover,etc
Use: Vehicles & Remote Control Toys
Model Number: X7 +
Remote Control Peripherals/Devices: Remote Controller
For Vehicle Type: Helicopters
Four-wheel Drive Attributes: Shell/Chassis/Wing/Head
Wheelbase: Bottom Plate

Package Includes:
1 x CUAV X7+ Flight Controller
