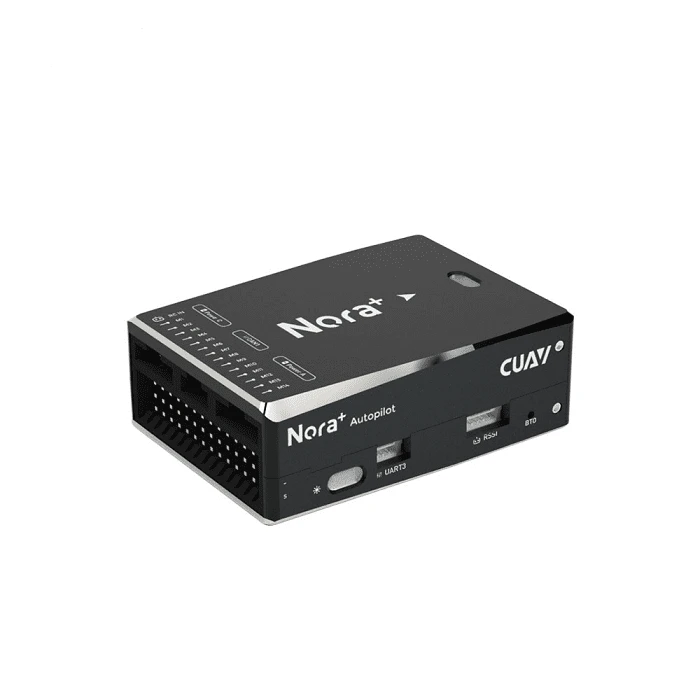

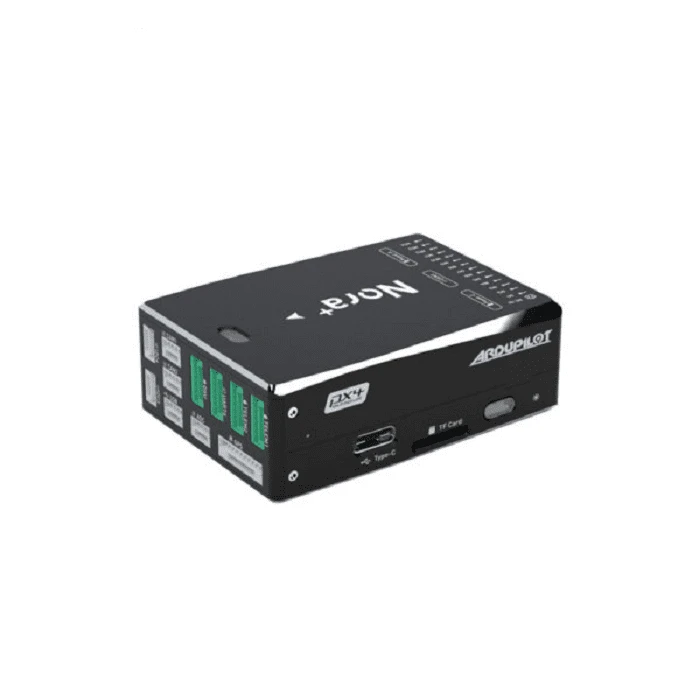

CUAV Nora+ Autopilot Flight Controller Open Source For PX4 ArduPilot For RC Drones Helicopter

CUAV Nora flight controlelr is an advanced autopilot independently designed by CUAV. It uses a higher-performance STM32H7 processor and integrates industrial-grade sensors and ultra-low temperature drift sensors. Compared with the previous flight controller,it has better performance and more reliability. This board can run ArduPilot firmware perfectly. Nora is ideal for academic research and commercial systems integration.


Main Feature:
Internal shock absorption
Ports on the side
Support USB_HS, download logs faster
Support more dshot output
Support IMU heating, make the sensor work better
Dedicated uavcan battery port
3 sets of IMU sensors


Specification:
14 PWM outputs （12 supports Dshot）
Support multiple RC inputs (SBUs / CPPM / DSM)
SBUS Output
Analogue / PWM RSSI input
2 GPS ports(GPS and UART4 ports)
4 i2c buses(Two i2c dedicated ports)
2 CAN bus ports
2 Power ports(Power A is common adc interface, Power C is uavcan battery interface)
2 ADC intput
2 USB ports (Type C and gh 1.25)

Power System:
Power: 4.3~5.4V
USB Input: 4.75~5.25V
Servo Rail Input: 0~36V
Weight and Dimensions:
Weight: 50g
Dimensions: 46*64*22mm
Other Characteristics:
Operating temperature: -20 ~ 80°c（Measured value）


Package Includes:
1 x CUAV Nora+ Autopilot Flight Controller
