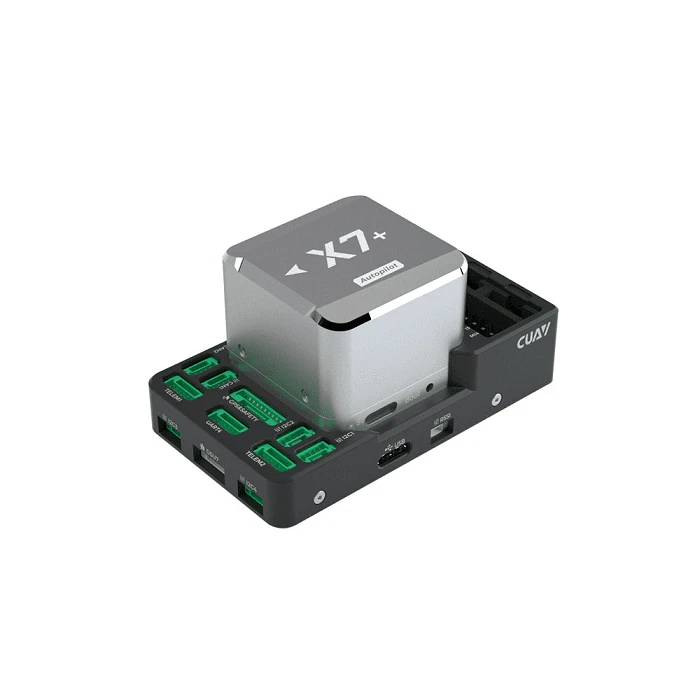

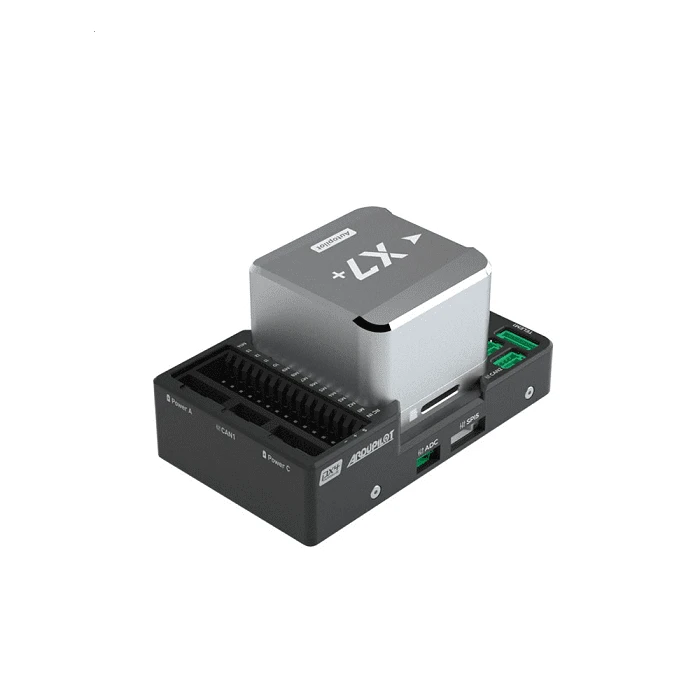

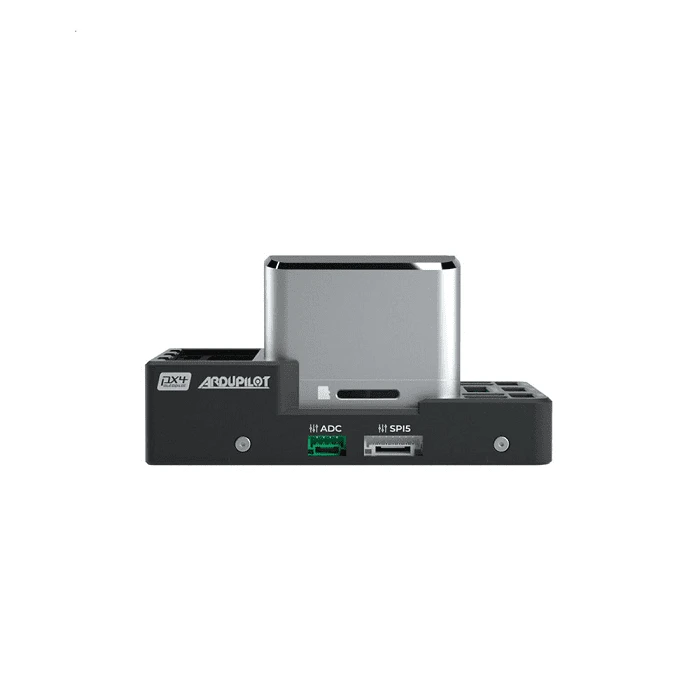

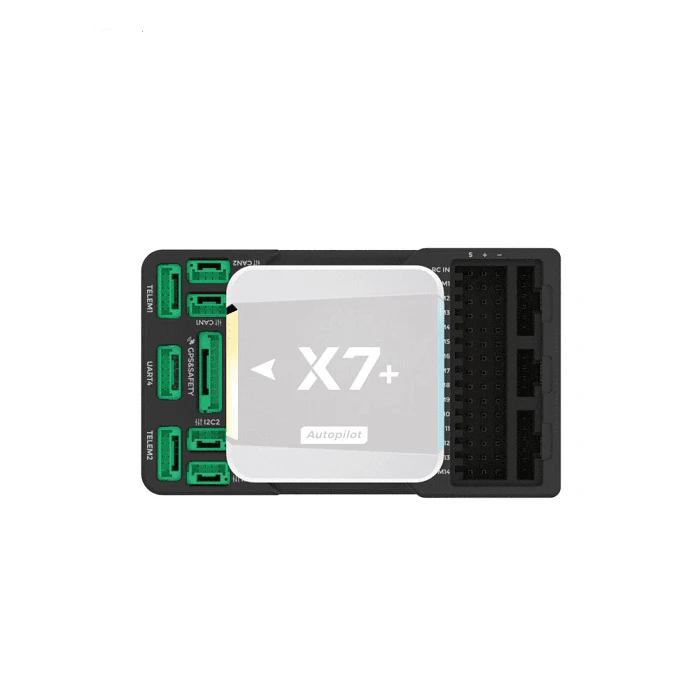

CUAV X7+ Pro Flight Controller | Autopilot For PX4 APM Drone Quadcopter Pixhawk

X7&X7 Pro autopilot adopts STM32H743 processor, with processing speed up to 480MHz, 1M storage and 2M flash memory, built-in 3 sets of latest Invensense + Bosch + TE series combined sensors and industrial RM3100 compass, with better stability and anti-interference, with CUAV patent shock absorption design and temperature compensation system,X7 pro also uses car gauge ADIS16470 sensor to further improve flight stability.

Feature:
1.STM32H743 pwoerfull processor;
2.Aerospace grade ADI16470 accelerometer and gyroscope,which is often used in cutting-edge aerospace projects.It has excellent gyroscope and acceleration drift performance;
3.The built-in hight-precision sensor temperature compensation system makes the sensor work at constant temperature;
4.RM3100 industrial grade compass;
5.Core separate design:The X7+ flight controller integrated the main MCU and IMU into the CORE module and can be sold separately.uers can design the baseboard accoridng to the UAV structure to meet the individual needs of useds or purchase our CAN PDB  baseboard for use;
6.Better CUAV patented,shock absorption system;
7.Support LTE link Series 4G telemetry;

Spefication:
Brand Name: CUAV
Material: MetalTool
Size: 77*45.5*39mm
Weight:105g
Processor:STM32H744
Frequency:480mhz
Flash:2MB
RAM:1MB
Acce&Gyro:ADIS16470+ICM-42688-P+ICM-20689
Compass:RM3101
Barometer:MS5611X2
UART:5PCS
I2C:6(2 interface are integrated in GPS &SAFETY&UART4)
CAN:2
ADC IN:1(Support 6.6v/3.3v)
SPI:1
PWM OUT:14(M1-M12 support DSHOT protocol)
RC IN:1 support PPM SBUS DSM
RSSI:PWM or 3.3v analog voltage
Power In:2(Power A for ADC protocol,Power C for CAN protocol)
GPS port:2
Debug:1(UART7)
JATG:1
USB:Type-Cx2
TF slot:1
Rated voltage:4.5-5.5v
USB voltage:4.75-5.25v
Servo voltage:0-36V
Working temp:-20-85 degree
Firmware Support:Ardupilot 4.10/PX4 V1.12.3 or above version
Model Support:3-8 Multi-copter/helicpoter/VTOL/unmanned vehiclae/Rover,etc
Use: Vehicles & Remote Control Toys
Model Number: X7 + PRO
Remote Control Peripherals/Devices: Remote Controller
For Vehicle Type: Helicopters
Four-wheel Drive Attributes: Shell/Chassis/Wing/Head
Wheelbase: Bottom Plate

Package Includes:
1 x CUAV X7+ PRO Flight Controller
