DJI N3-AG V2.0 Flight Controller For UAV Drones Agriculture Spraying Drones

Note: DJI N3-AG V2.0 flight controller has the same hardware as the N3-AG, only the firmware is different.

This 2.0 version can support three terrain detection radars, one obstacle detection radar, two pumps.
F1 – F2: Pump connection terminal, other brand ‘s pump ESC can also be connected (Since * F terminal is outputting PPM signal, only electronic speed control can be connected, electronic switch can not be supported)
IESC: Can be connected to smart ESC communication version, it can support power data recording and throttle backup (14120 and DJI E 5000).

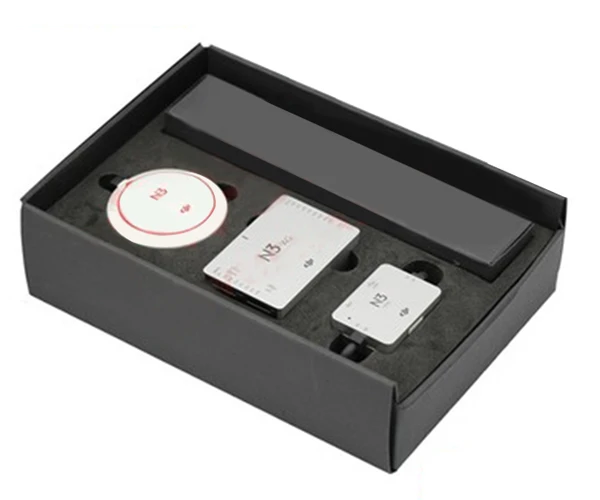

DJI N3-AG Agriculture Flight controller system, based on the DJI N3 flight controller system, is designed for agriculture applications. It consists of flight controller, GNSS-Compass Pro, PWU (Power Management Unit) and LED module.
Main Features:
Flight Controller
1. Built-in inertial sensors for the measurement of aircraft attitude and built-in pressure sensor for the detection of aircraft altitude.
2. Support for multiple receiver types. If used with the DJI Datalink 3, the A3-AG has direct access to features in the DJI MG app such as intellignt planning and operation.
3. M1 to M8 are used to connect the ESCs of the aircraft and iESC for DJI Intelligent ESC
communication.
GNSS-Compass Module
The GNSS-Compass module has a built-in GPS/GLONASS and compass. The compass is used
for geomagnetic field measurements.
PMU Module
Supported the LiPo batteries. with built-in PMU providing power for the whole Flight Control
System and low voltage protection function.
LED Module
The LED Module has an integrated LED Indicator and Micro USB port.
A. The LED is mainly for flight control system status indication during flight (e.g. Flight Mode).
B. In addition, there is a Micro USB port for firmware upgrades via DJI Assistant 2.
