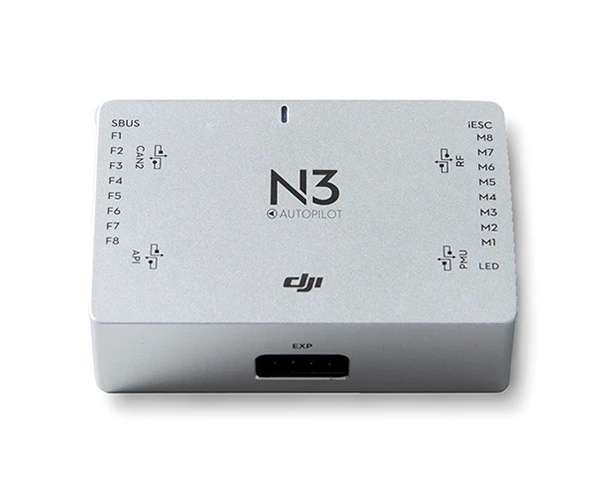

DJI N3 Flight Controller

Original price was: $379.00.Current price is: $96.99.

SKU: CMMTD 3469352062 Categories: Flight Controller/GPS, MULTI-ROTORS

Multiple payment options for secure shopping with SSL
Have the best deals
The home of quality products.
Experience the difference quality makes.

Description
Reviews (0)

PRODUCT DESCRIPTION

DJI’s latest generation of the NAZA series, the N3 flight controller, is tailor-made for a multitude of hobbyist and industrial applications. Its robust flight control algorithm is ideal for controlling a broad range of industrial and DIY multirotor aircraft, providing professional stability.

The N3 flight controller is compatible with professional remote controllers and receivers, DJI’s Intelligent ESC, DJI GO, Lightbridge 2, Datalink Pro and iOSD. It also integrates seamlessly with DJI’s Zenmuse series of gimbals and cameras, providing instant access to a whole host of flight applications. Compatibility with DJI Assistant 2 provides more possibilities for a multitude of industrial applications. With DJI’s Onboard and Mobile SDK, the N3 is ideal for hobbyists and professionals looking to create custom software solutions quickly and easily.

Specifications:

Supported Multi-rotor	Quadcopter: I4，X4; Hexacopter: I6，X6，Y6，IY6 Octocopter: X8，I8，V8
Supported ESC	400Hz frequency, DJI Intelligent ESC with feedback
Recommended Battery	3S to 12S LiPo or DJI Smart Battery
Recommended Radio	Lightbridge 2, S-BUS or D-BUS
Other DJI Products Supported	DJI GO, iOSD, DATALINK PRO, Zenmuse series, Ronin series, X3, X5, X5R, Z15, Ronin-MX, DJI propulsion systems, S900, S1000, S1000+, etc.
Assistant Software System Requirement	Windows 7 /8 /10 (32 or 64 bit) Mac OS
Built-in Functions	Sport mode, with adjustable maneuverability Intelligent Flight Mode Dual IMU redundancy Built-in 8GB Sdcard for data recorder as Blockbox External SBUS receiver Lightbridge 2 receiver 8 function channels (including 4 configurable direction channels) SDK
Protection Function	Motor Fail Protection(Minimum 6 axis) Propulsion system Protection(Motor Overload) Smart Return To Home(RTH) Low Battery Protection, support Smart RTH(only for DJI Smart Battery) Low Battery Voltage Protection No Fly Zones
FLIGHT PERFORMANCE
Hovering Accuracy	Vertical: �0.5m Horizontal: �1.5m
Maximum Wind Resistance	<10m/s
Max Yaw Angular Velocity	150 deg/s
Max Pitch Angle	45�
Max Ascending Velocity	5m/s?
Max Decending Velocity	4m/s
EXTENDING FUNCTION
PWM I/O Ports	F1-F4 ports for output F5-F8 ports for I/O function
Data Storage	Built-in data recorder
Intelligent Flight Modes	Home Lock and Course Lock. (with Lightbridge 2) Point of Interest, Waypoints,
Remote Parameter Adjustment	Knob with sbus Receiver enabled by DJI ASSISTANT2 It can be realized in DJI GO APP With Lightbridge 2
Assistant software	DJI ASSISTANT 2, support simulator support MAC OS & windows
iOSD	iOSD Mark II, iOSD mini
Zenmuse Gimbal&Camera	Z15, Ronin-MX, X3, X5,X5R
Propulsion systems	all
SDK
SDK	Mobile SDK Onboard SDK
SDK Port	API/CAN2
HARDWARE
Weight	Total： 132g MC： 46g GPS-Compass：37g PMU：36g LED：13g
Power Consumption	Normal 3.3W Max 4.8W
Size	Controller: 57.9mm x 39mm x 17mm PMU: 40mm x 28.2mm x 11.2mm LED: 25mm x 25mm x 6.3mm GPS-Compass: 50mm (diameter) x 12.2mm
Operating Temperature	-10°C to +55°C
