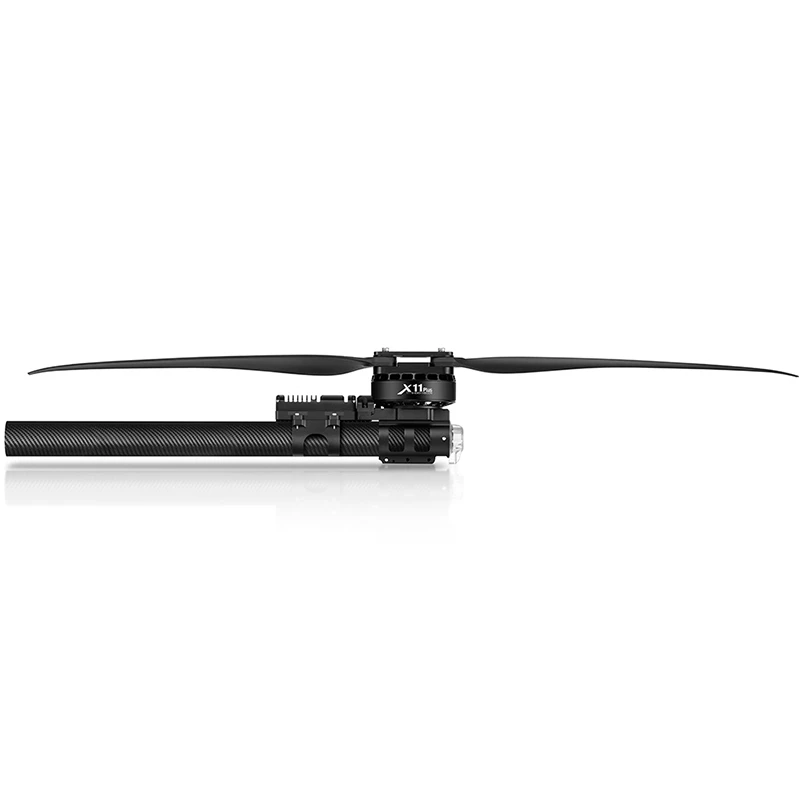

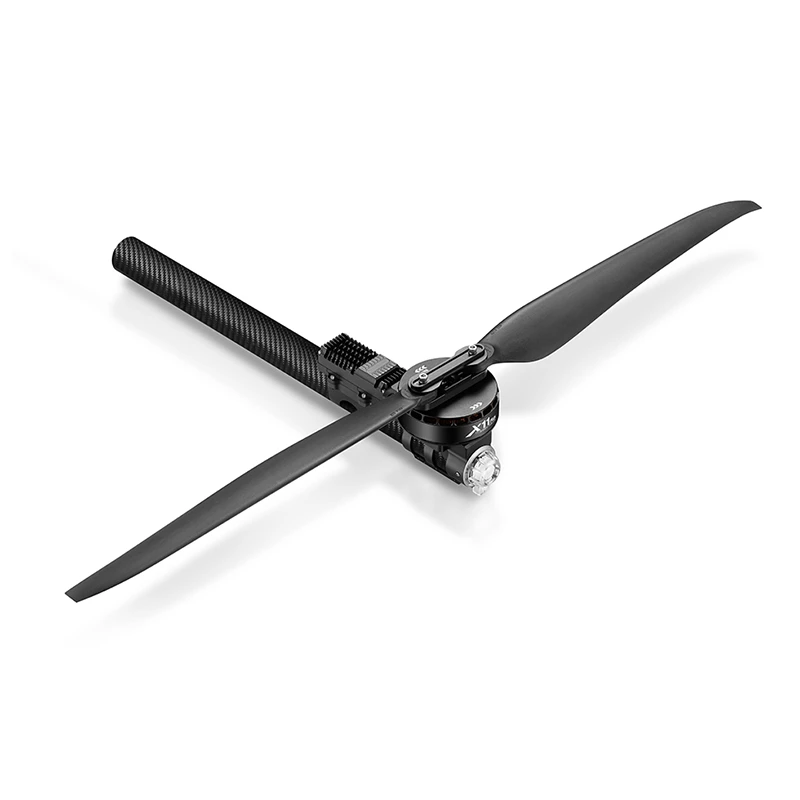

Hobbywing X11 PLUS Power System For Agricultural Drone

The Hobbywing X11 PLUS Power System’s Max thrust is 36kg and suitable for 12-14S battery supply.It comes with 1118-85KV motor and 4314 Carbon-Plastic Propellers.The hobbywing X11 plus is an excellent match for large-load plant protection drones.

Features:
1.Good Heat Dissiaption:The heat dissipation structure of the motor has been upgraded to bring more powerful active heat dissipation.
Under the same working conditions, the heat dissipation effect is better than that of X11-18S.
2.More thrust & higher efficiency:It surpasses the X11-18S in all ways by answering to low voltage and high power requirements.
The maximum thrust has increased to 37kg, with 4314 carbon plastic propellers,
recommend take-off weight 15-18kg/rotor.
3.Dual throttle signal & CAN+PWM:PWM analog signal + CAN digital signal , precise throttle control, more stable flight.
Even in the state of single GPS without RTK, “fixed” flight.
4.Precise and linear throttle control, efficiency increased by 10% (compared to the square wave
control with the same power), and a reduction in the overall temperature by 10°C
5.Communication&Upgrade:The default CAN communication (serial port is optional), real-time transmission of power
system working condition data, real-time detection of system working status,
making flight more at ease. Use the Hobbywing DATALINK Data box to upgrade
the ESC firmware online, and also support remote upgrade through the
flight controller, synchronization of Hobbywing’s latest technology .

Specification:
Max. Thrust:36kg/Axis (44V, Sea Level)
Recommended Takeoff Weight:15-18kg/Axis (44V, Sea Level)
Recommended LiPo Battery:12-14S(LiPo)
Operating Temperature:0~50℃
Combo Weight:2490
Waterproof Rating:IPX6

Motor:1118-85KV
KV Rating:85rpm/V
Stator Size:111*18mm
powertrain arm tube outer diameter:30mm
Bearing:Bearings imported from Japan

ESC
Recommended LiPo Battery:12-14S(LiPo)
PWM Input Signal Level:3.3V/5V
Throttle Signal Frequency:50-500Hz
Operating Pulse Width:1050-1950us(Fixed or cannot be Programmed)
Max. Input Voltage:61V
Max. Input Current (Short duration):150A(w/ Good Heat Dissipation)
BEC:No

4314 Carbon-Plastic Propellers
Diameter×Pitch:43*14

Package Includes:

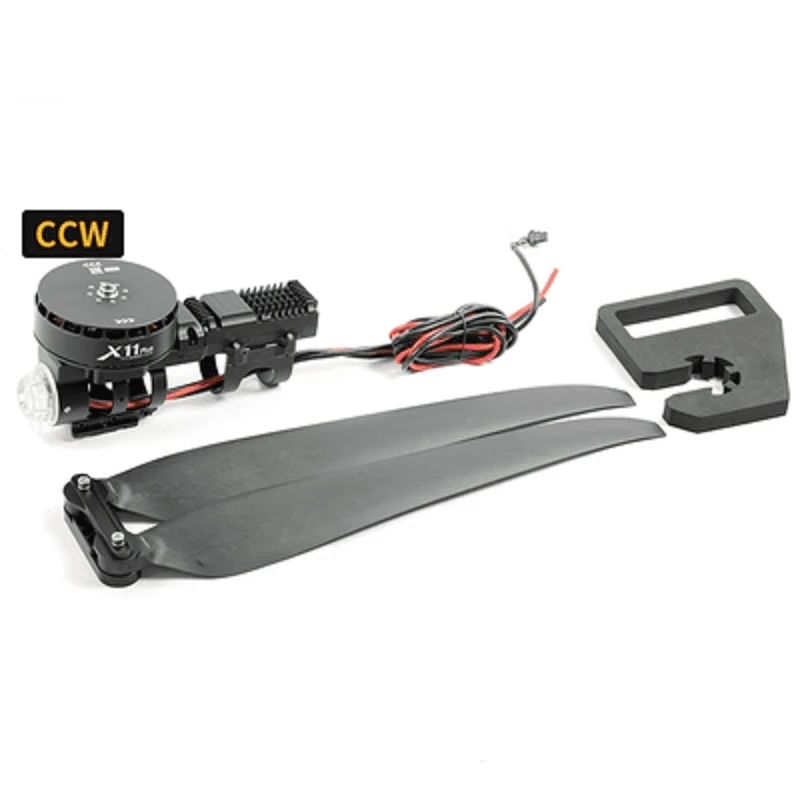

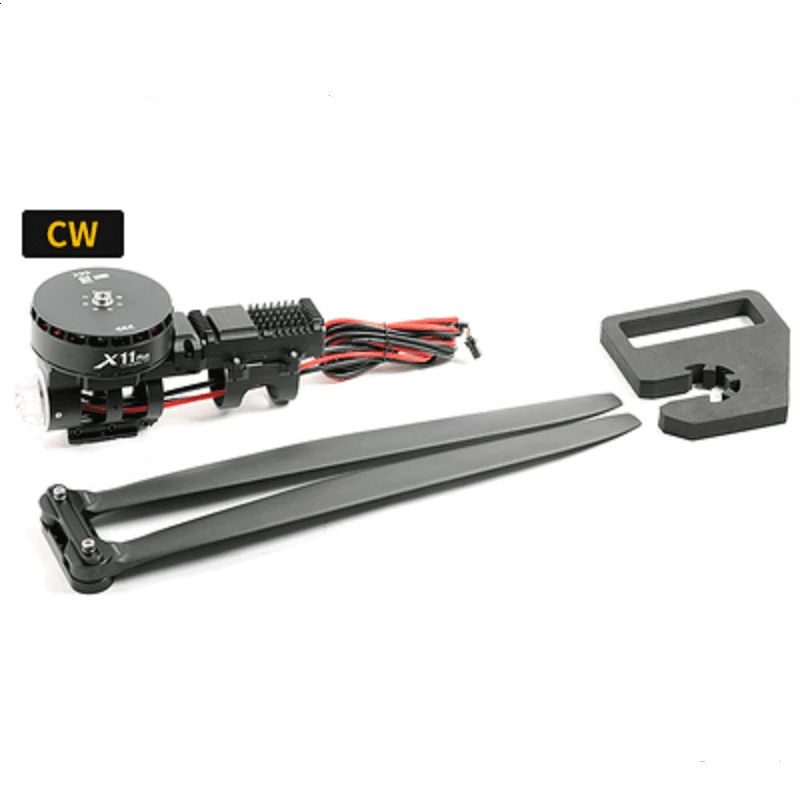

1 x Hobbywing X11 PLUS Power System CW/CCW
