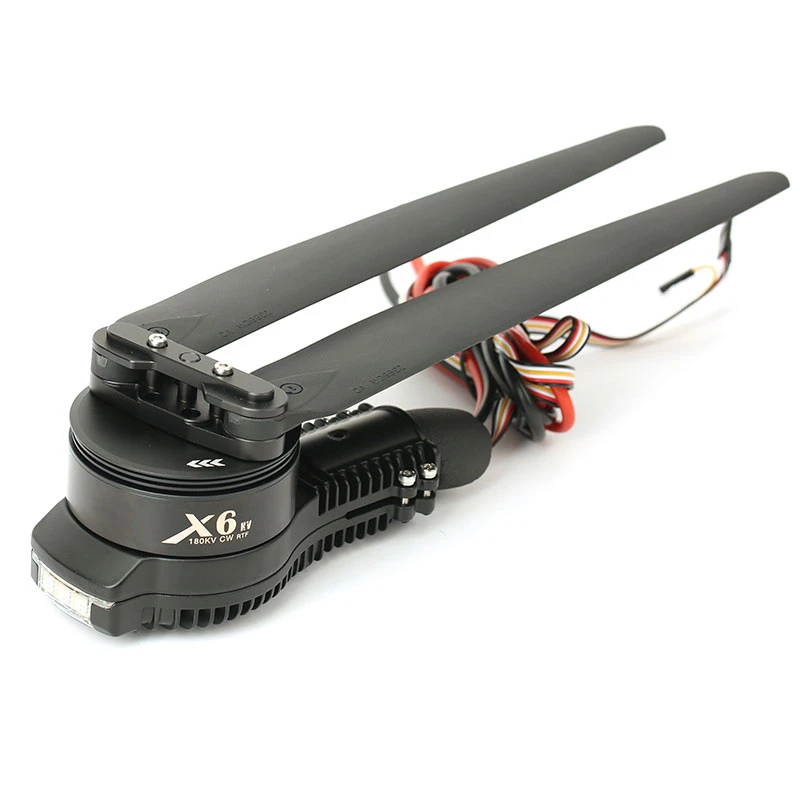

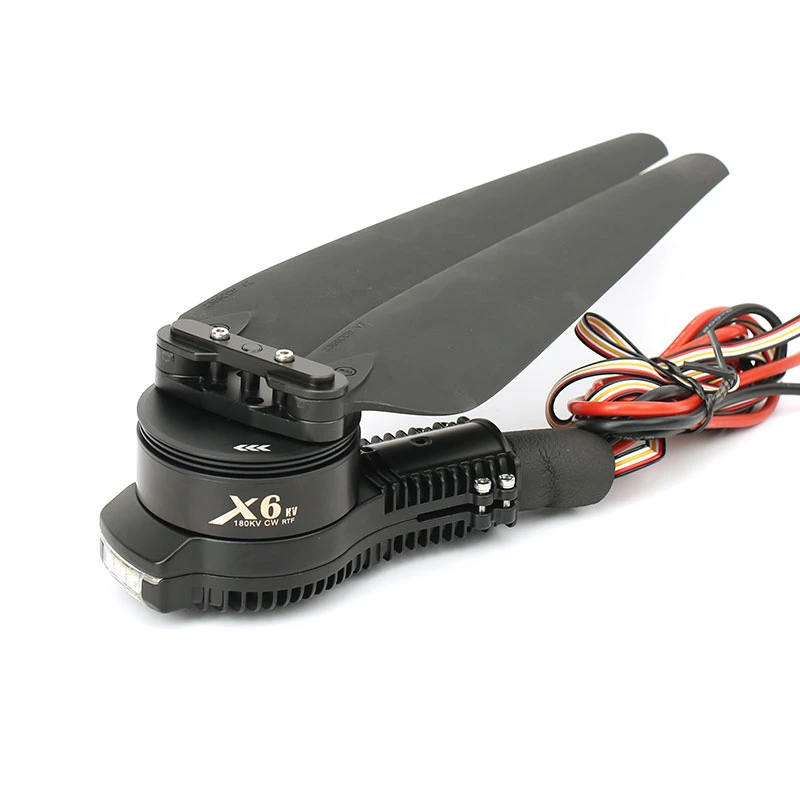

Hobbywing X6 Propulsion System For Agricultural Drone Motor ESC Propeller For 30mm Arm Drones

The Hobbywing X6 propulsion system, which integrates motor, ESC, propeller and motor mount (with the optional 30-to-28 tube adapter, it’s compatible with 28mm&30mm diameter carbon fiber arm tubes) together, is easy to mount and use.
Note: with the foldable 2388 propeller, the propulsion system is capable of carrying the load of 3~5KG for each axis.

Main Features:

FOC-based PMSM Algorithm Perfect Propulsion System

The FOC (Field Oriented Control)-based PMSM (Permanent Magnet Synchronous Motor) algorithm, an optimized algorithm for improving the collaborative performance of the ESC, motor & propeller, makes the motor-propeller more balanced and creates a propulsion system features high stability, reliability and efficiency.

Waterproof

The X6 propulsion system is waterproof to IPX7 standard. It’s applicable to almost all the harsh working conditions (for agricultural applications) like rainwater, pesticides, salt spray, high temperature, sand and dust. Combined with the outlets at the bottom of the motor mount.

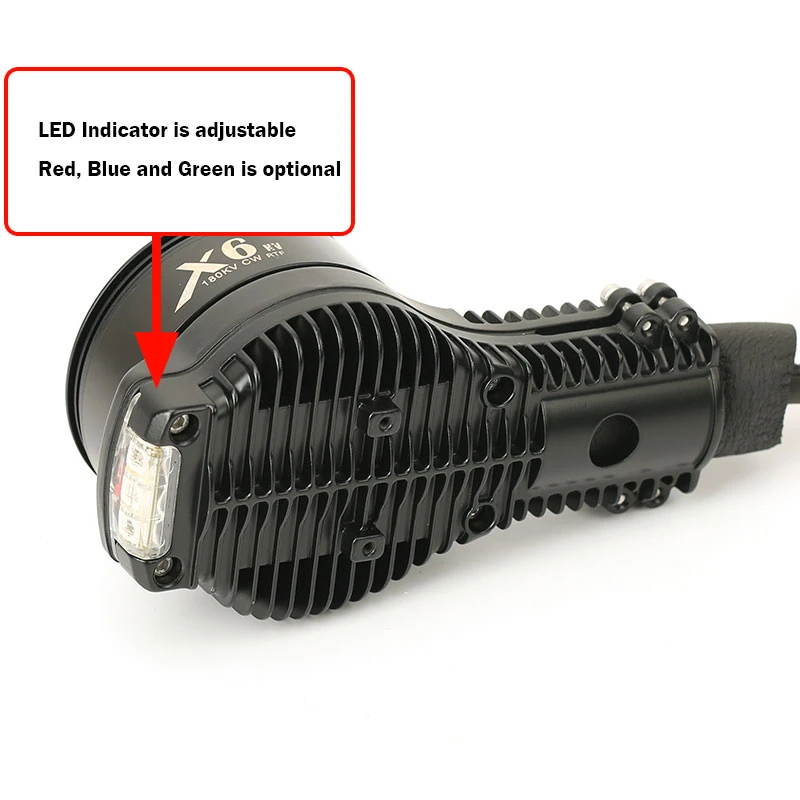

High-brightness LED Indicator

The X6 propulsion system also contains a high-brightness LED indicator, you can choose the light color or disable it. It can provide the information about the working status of the system and send a warning when any abnormal issue occurs, that significantly improves the safety of the system.

High Thrust & Efficiency Propeller

The 2388 propeller made of special high-strength carbon fiber is solid and light, and guarantees great consistency and excellent dynamic balance. The optimized aerodynamic shape combined with the optimized electromagnetic design adopted by the motor and the high efficiency FOC (Field Oriented Control) algorithm implemented by the ESC guarantee the high thrust & efficiency of the propulsion system.


Super Impact Resistance

The unique keel-like structure design adopted by the motor mount/ESC case optimizes heat dissipation, improves overall
strength. In particular, it protects the motor parts and makes the motor highly impact-resistant. That greatly reduces the possibility of structure deformation/malfunction caused by drop or hit.


Modular Design Easy to Maintain

The X6 propulsion system features a modular design. When it is damaged, you can change the damaged part like
blades (single or two), the propeller adapter, or the integrated power combo (ESC+motor) easily and quickly


Specifications:
Item Brand: Hobbywing
Item No. Hobbywing X6 Power system
Max. Thrust: 12kg/Axis (48V, Sea Level )
Recommended LiPo Battery: 12S LiPo
Recommended Takeoff Weight: 3-5kg/Axis(48V，Sea Level)
Combo Weight: 720g
Waterproof Rating: IPX7
Operating Temperature: -20℃~50℃

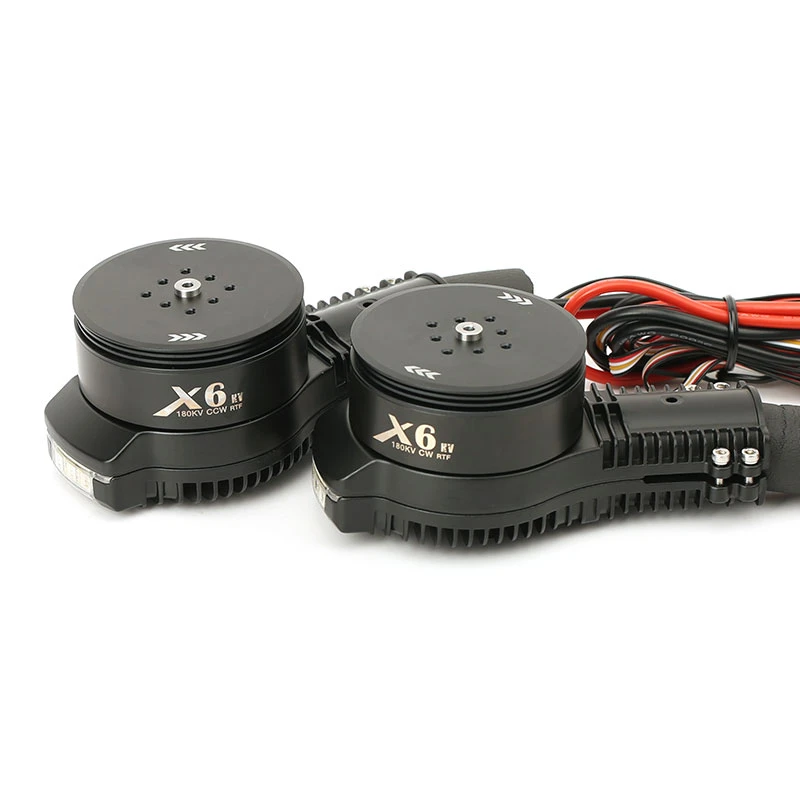

Motor
Outer Diameter: 70mm
KV Rating: 180KV
O.D of Carbon Fiber Tube: φ30mm/φ28mm (*Tube Adapter will be Needed)
Bearing: Imported Bearing


ESC
Recommended LiPo Battery: 6-12S LiPo
PWM Input Signal Level: 3.3v/5v (Compatible )
Throttle Signal Frequency: 50-500Hz
Operating Pulse Width: 1100~1940μs (Fixed or cannot be Programmed )
Max. Input Voltage: 52.2V
Max. Input Current (Cont.): 80 A(w/ Good Heat Dissipation )
Max. Peak Current (10s): 100 A (w/ Good Heat Dissipation )
BEC: No
Nozzle Mounting Holes: φ28.4mm-2*M3


Propeller:
Diameter×Thread Pitch: 2388
Weight: 91g (w/ Propeller Adpater, Single Blade: 36g)
