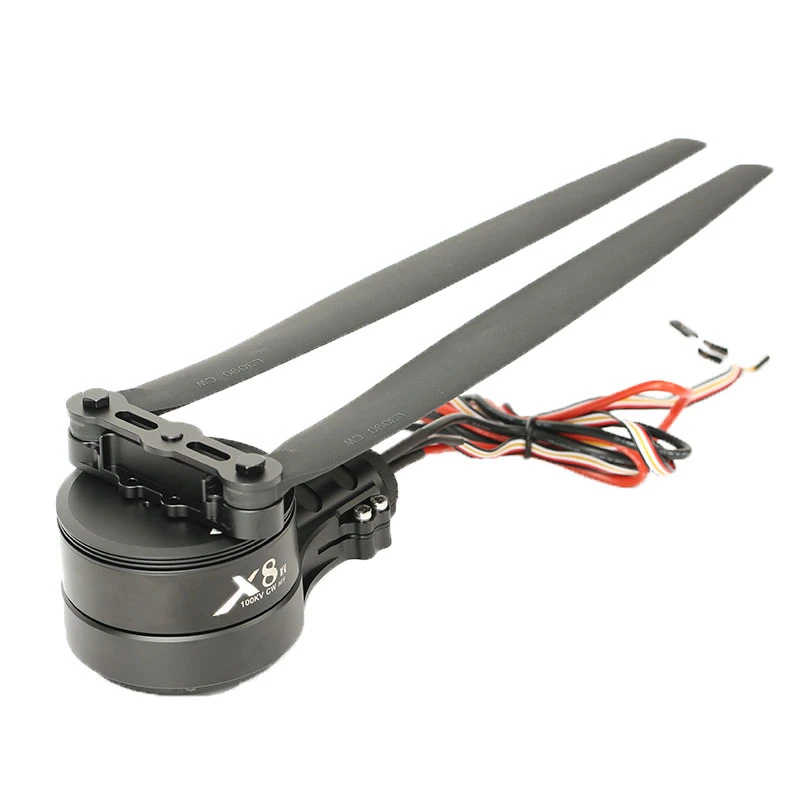

Hobbywing X8 Power System For Agricultural Drones

Original price was: $229.00.Current price is: $98.99.

SKU: CMMTD 212800677 Categories: AGRICULTURE DRONE, Electronic Parts

Multiple payment options for secure shopping with SSL
Have the best deals
The home of quality products.
Experience the difference quality makes.

PRODUCT DESCRIPTION

The Hobbywing X8 propulsion system, which integrates motor, ESC,propeller and motor mount (30mm, 35mm and 40mm) together, is easy to mount and use.It is suitable for the E410S, E616S, E410P, E616P, G616,G410 and the similar drones.

X8 Power System for Agriculture Drones
Specifications	Max. Thrust	15.3kg/Axis (48V, Sea Level )
	Recommended LiPo Battery	12S LiPo
	Recommended Takeoff Weight	5-7kg/Axis(48V，Sea Level)
	Combo Weight	1040g
	Waterproof Rating	IPX7
	Operating Temperature	-20℃~65℃
Motor	Stator Size	81*20mm
	KV Rating	100 rpm/V
	O.D of Carbon Fiber Tube	Φ35mm/Φ30mm (*Tube Adapter will be Needed)
	Bearing	NSK Ball Bearing (Waterproof)
ESC	Recommended LiPo Battery	6-12S LiPo
	PWM Input Signal Level	3.3V/5V (Compatible )
	Throttle Signal Frequency	50-500Hz
	Operating Pulse Width	1100-1940 μs (Fixed or cannot be Programmed )
	Max. Input Voltage	52.2V
	Max. Input Current (Cont.)	80 A(w/ Good Heat Dissipation )
	Max. Peak Current (10s)	100 A (w/ Good Heat Dissipation )
	BEC	No
	Nozzle Mounting Holes	Φ28.4mm-2*M3
Propeller	Diameter×Thread Pitch	29×11 inch
Propeller	Weight	180g
