Hobbywing Xrotor PRO HV 100A 6-14S Brushless ESC For Agricultural Multirotor Drone

Hobbywing XRotor PRO HV V3 6-14S 80A 100A ESC for DIY Agricultural Multirotor Drone

Features:
1.Special core program for multi-rotor controllers greatly improves throttle response.
2.Specially optimized software for excellent compatibility with disc-type motors.
3.All settings except the “Timing” are preset, making usage simple, highly intelligent and adaptive.
4.The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
5.Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) .
6.Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
7.MOSFET with extra-low resistance brings high performance and great current endurance.

Specification:
Brand Name: Hobbywing

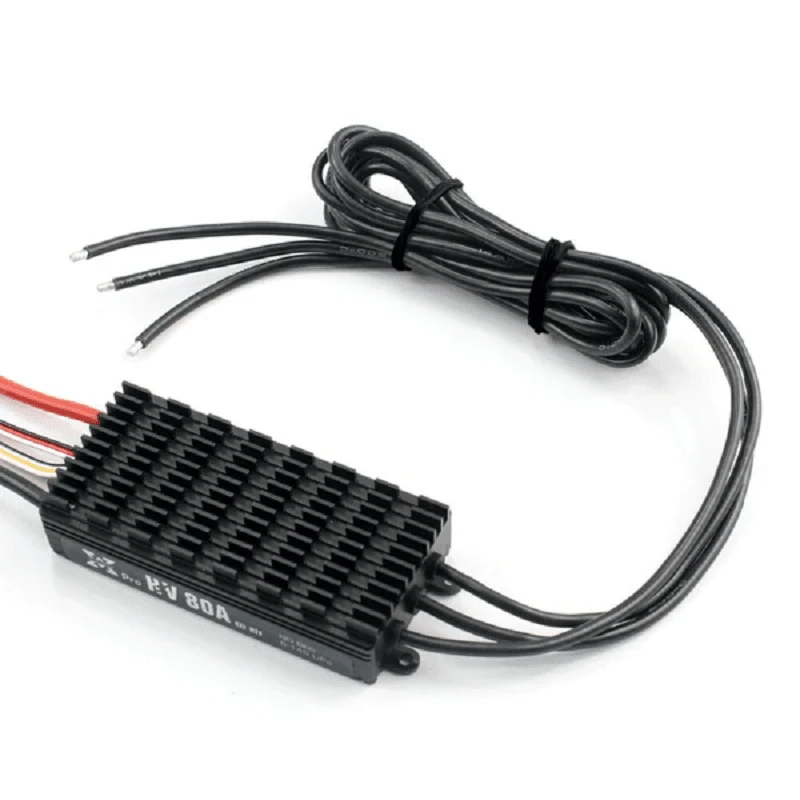

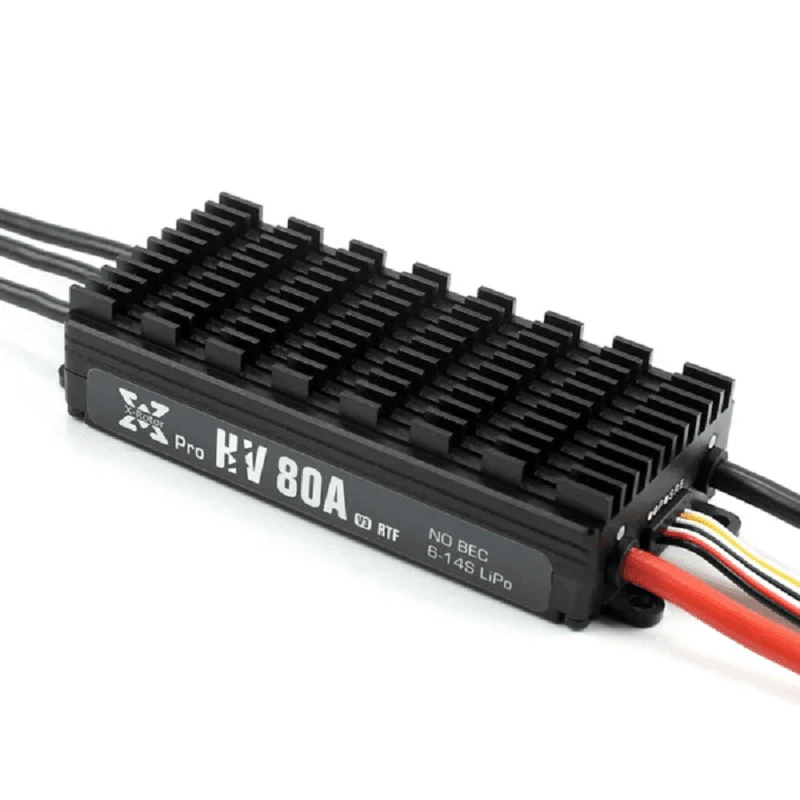

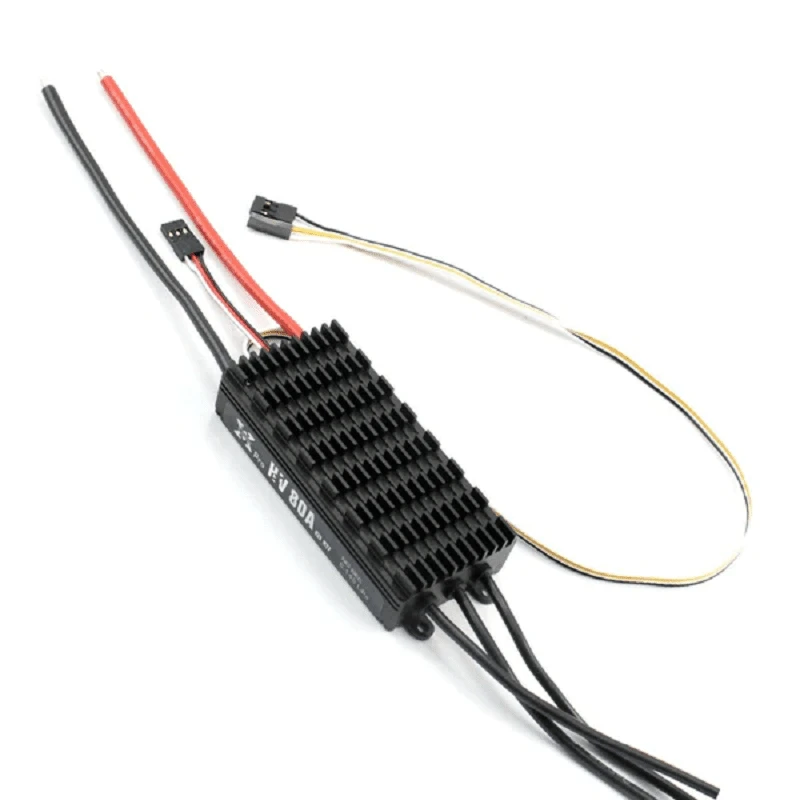

Model: XRotor Pro-80A-HV-RTF-V3
Drive mode: BLDC
Continuous current: 80A
Instantaneous current (10 seconds): 100A
Input voltage: 6-14s
Parameter programming function: automatic angle feed (high / medium)
Power line (red and black wires) 12 gauge silicone wire, length: 14cm
Motor line (3 black lines) 14-gauge silicone wire, length: 95cm
Signal line (black and white thin line) length: 40cm
Weight: 195g
Size: 99.2×42×20.5mm

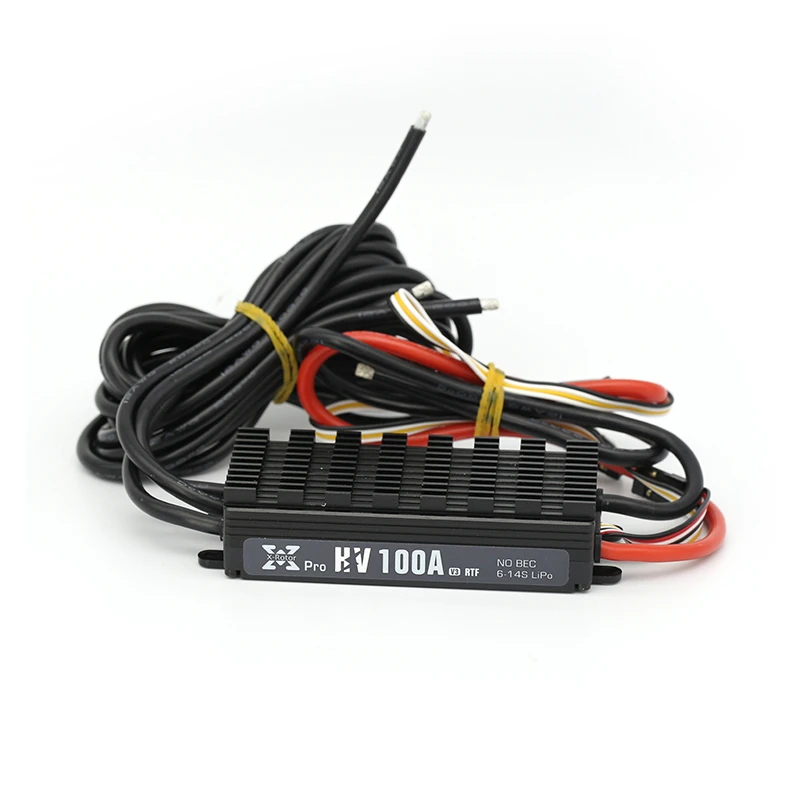

Model: XRotor PRO HV V3 100A ESC
Drive method: BLDC
Structure: metal shell + plastic bottom shell
Continuous current: 100A
Instantaneous current (10 seconds): 120A
BEC output: none
Lithium battery section number: 6-14S
Power line (red and black wires) 12 gauge silicone wire, length: 14cm
Motor line (3 black lines) 14-gauge silicone wire, length: 95cm
Signal line (black and white thin line) length: 40cm
Parameter programming function: DEO (on/off)
Weight: 252g
Size: 86.1x42x20.5mm (without ear length)

Package Includes:
1 x Hobbywing XRotor PRO 80A/100A HV V3 ESC
