Holybro PM02 V3 Power Module Pixhawk 4 Power Module

Holybro PM02 V3 Power Module Pixhawk 4 Power Module - Image 2

Holybro PM02 V3 Power Module Pixhawk 4 Power Module - Image 3

Holybro PM02 V3 Power Module Pixhawk 4 Power Module - Image 4

Holybro PM02 V3 Power Module Pixhawk 4 Power Module

Original price was: $21.99.Current price is: $15.39.

SKU: CMMTD 1112839135 Categories: Flight Controller/GPS, MULTI-ROTORS

Multiple payment options for secure shopping with SSL
Have the best deals
The home of quality products.
Experience the difference quality makes.

Description
Reviews (0)

PRODUCT DESCRIPTION

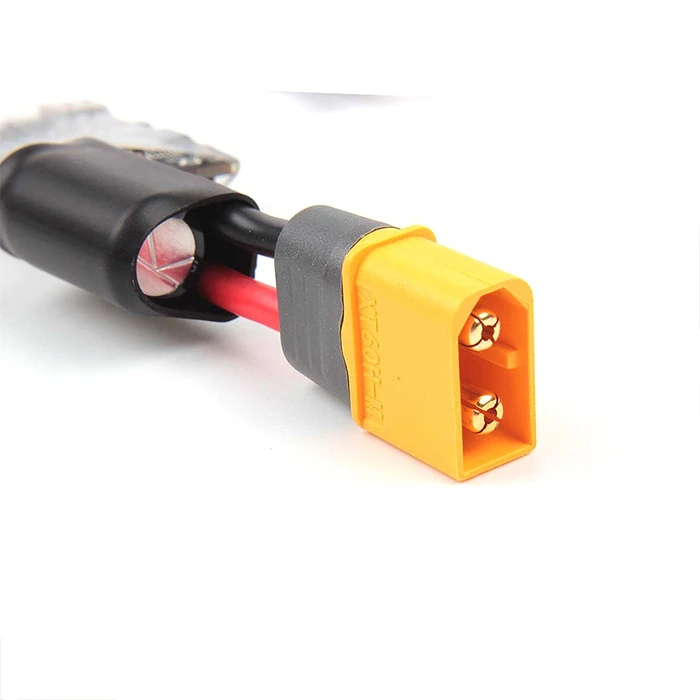

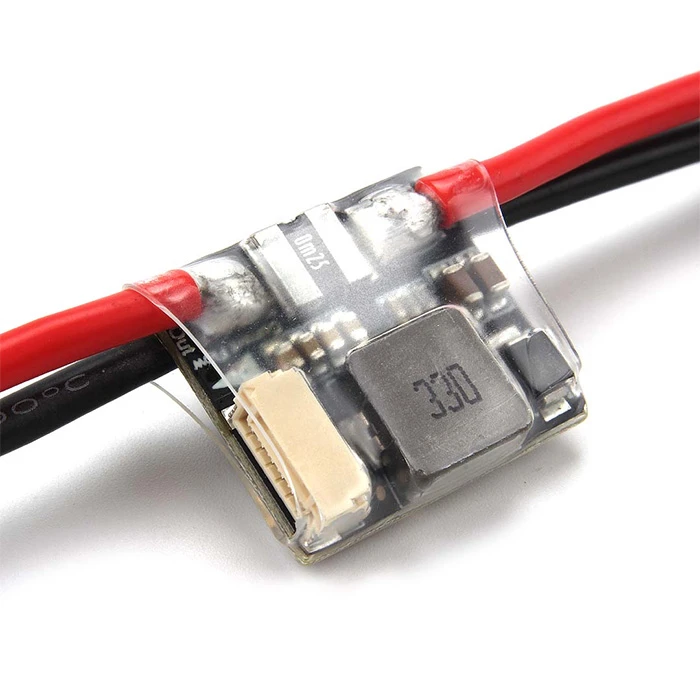

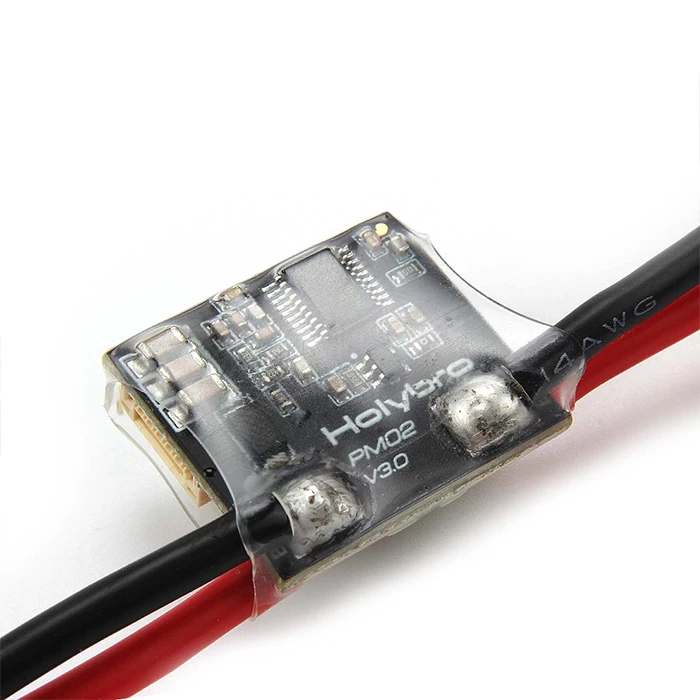

Holybro PM02 Power Module is a simple way of providing your autopilot flight controller with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from up to a 12S LiPo battery. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.
The Power Module is designed to power autopilot flight controller, a RC receiver and APM accessories (GPS, radio). It is not designed to power servos. Use your aircraft’s own ESC/BEC for that.
The GH terminal is also compatible with Pix32,Pixhawk4,Pixhawk4 mini, Pix32v5 and Durandal.

Specifications：
UBEC input voltage : 7~51v (2~12s LiPo)
Rated current:60A
Max current:120A(<60S)
Max current sensing: 120A
Supports 12S battery
Voltage and current measurement configured for 3.3V ADC
Switching regulator outputs 5.2V and 3A max
Weight: 20g

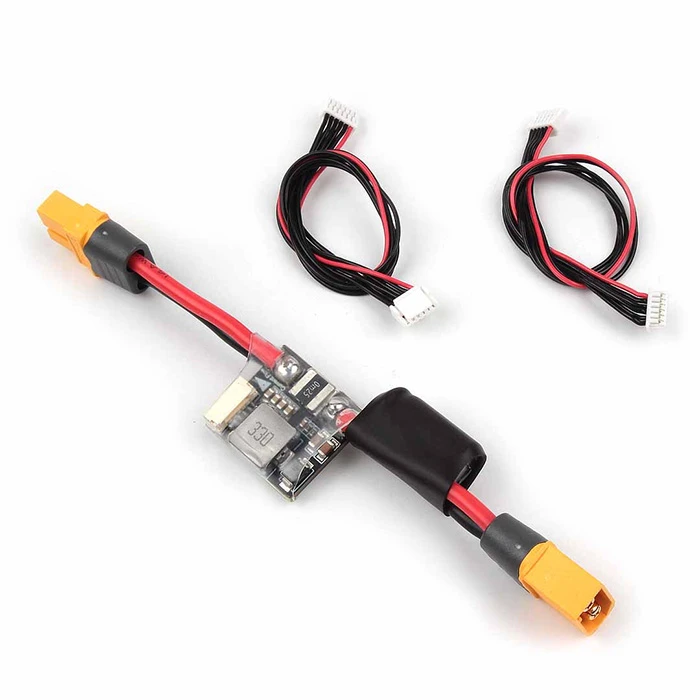

Package Includes：
1x Power Module with XT60 Connectors Board
1x Electrolytic capacito: 220uF 63V (installed)
1x Molex 6 Position Connector 15 cm
1x GH 6 Position Connector 15 cm
