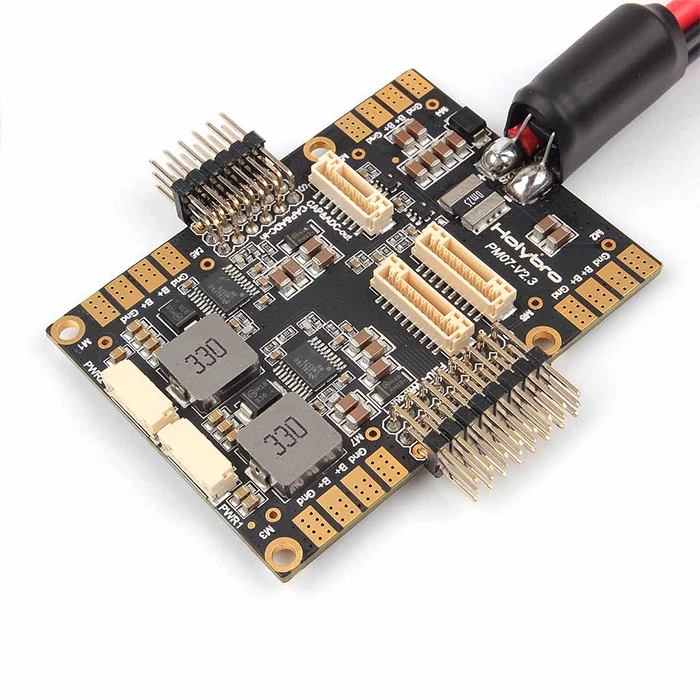

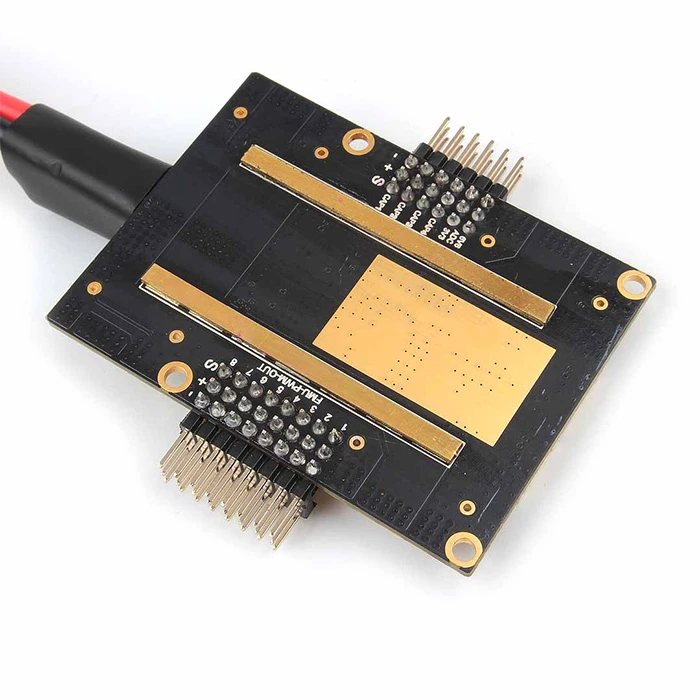

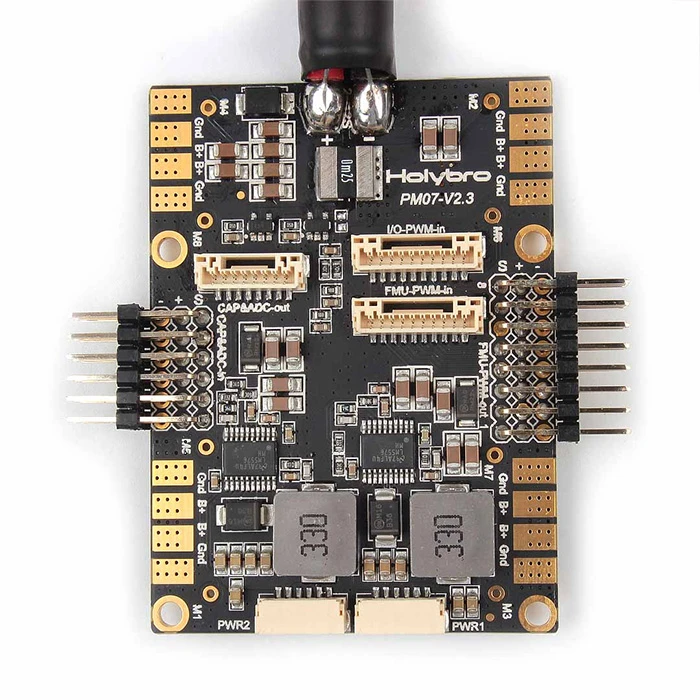

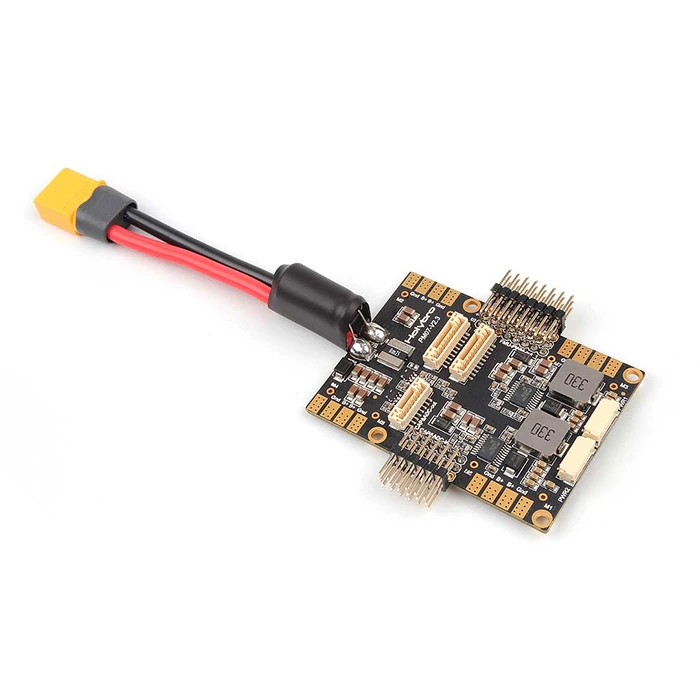

Holybro PM07-12S Power Module Pixhawk 4 5X 6X 6C Power Module

Holybro PM07-12S Power Module Pixhawk 4 5X 6X 6C Power Module - Image 2

Holybro PM07-12S Power Module Pixhawk 4 5X 6X 6C Power Module - Image 3

Holybro PM07-12S Power Module Pixhawk 4 5X 6X 6C Power Module - Image 4

Holybro PM07-12S Power Module Pixhawk 4 5X 6X 6C Power Module - Image 5

Holybro PM07-12S Power Module Pixhawk 4 5X 6X 6C Power Module

Original price was: $45.99.Current price is: $32.19.

SKU: CMMTD 9939162583 Categories: Flight Controller/GPS, MULTI-ROTORS

Multiple payment options for secure shopping with SSL
Have the best deals
The home of quality products.
Experience the difference quality makes.

Description
Reviews (0)

PRODUCT DESCRIPTION

The Power Management Board (PM Board) serves the purpose of a Power Module as well as a Power Distribution Board. In addition to providing regulated power to Pixhawk 4 and the ESCs, it sends information to the autopilot about battery’s voltage and current supplied to the flight controller and the motors.

Specifications：
PCB Current: total 120A outputs (MAX)
UBEC 5v output current :3A
UBEC input voltage : 7~51v (2~12s LiPo)
Dimensions:68*50*10 mm
Mounting Holes:45*45mm
Weight: 47.5g

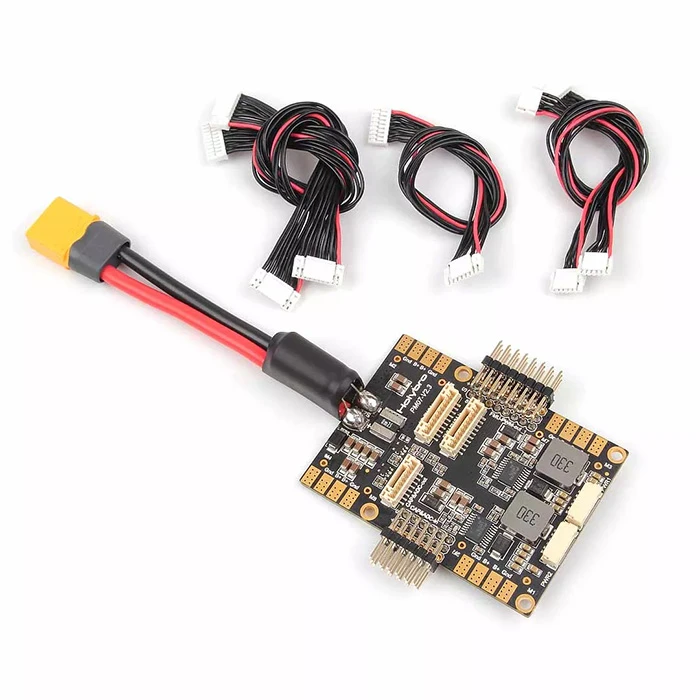

Package Include：
1x Holybro PM07 board
1x 80mm XT60 connector wire (installed)
1x Electrolytic capacito: 220uF 63V (installed)
2x JST GH 10P Cable
1x JST GH 8P Cable
2x JST GH 6P Cable
