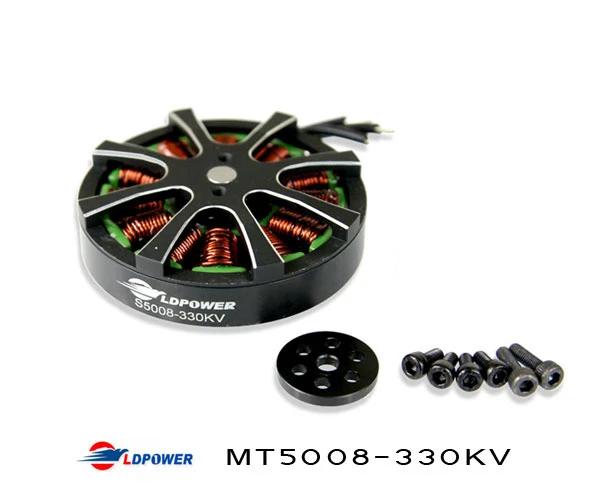

LD-POWER MT Series5008 330KV Outrunner Brushless Motor

Original price was: $29.99.Current price is: $20.99.

SKU: CMMTD 6423363445 Categories: Motor for Drones, MULTI-ROTORS

Multiple payment options for secure shopping with SSL
Have the best deals
The home of quality products.
Experience the difference quality makes.

Description
Reviews (0)

PRODUCT DESCRIPTION

Specification

Model Name:S5008-01
Motor Dimensions:58*22
Stator Dimensions:50*8
Copper Wire(OD):0.7
KV:330
Configuration:12N/14P
Resistance :122.5
No Load Current:0.3
RPM:4760
Batteries 4-6Cells (14.8-22.2V)
Shaft (mm):6
Weight (g):144
Bottom mounting holes:3MM Bolt thread 25mm*25mm
Top mounting holes:3MM 3MM Bolt thread 12mm*12mm

Prop Test Data S5008-KV330
Voltage(V)	Propeller (inch)	Throttle	Current (A)	Watts(W)	Thrust(G)	Efficiency (G/W)
14.8	APC TE 15*5.5	10%	3.07	73.68	560	7.60
		20%	3.8	91.2	670	7.35
		30%	4.28	102.72	780	7.59
		40%	5.54	132.96	910	6.84
		50%	6.8	163.2	1080	6.62
		60%	8.8	211.2	1300	6.16
		70%	10.48	251.52	1520	6.04
		80%	12.47	299.28	1730	5.78
		90%	13.1	314.4	1880	5.98
		100%	14.06	337.44	1960	5.81
