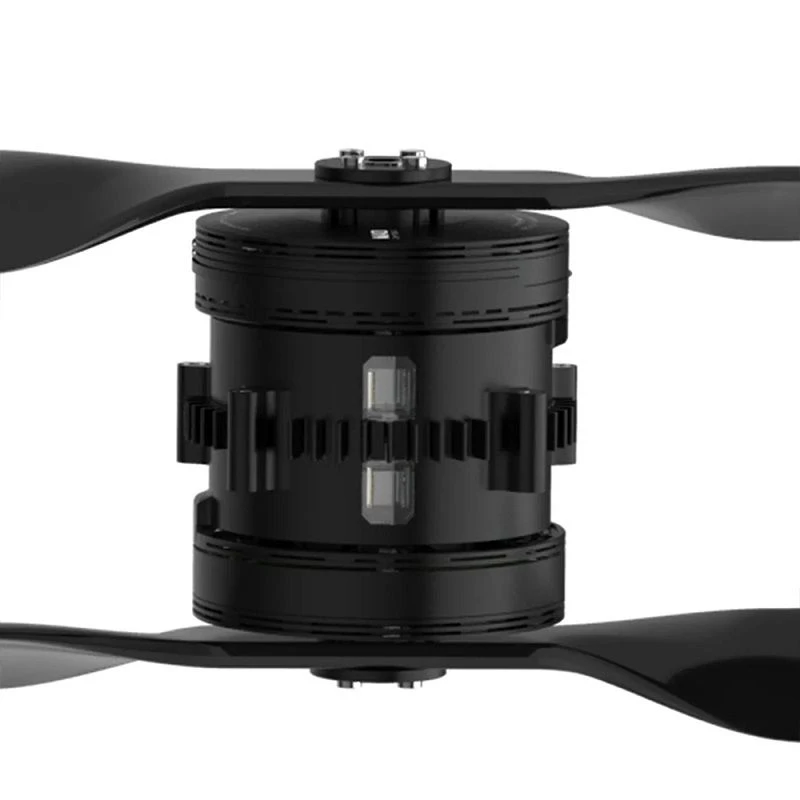

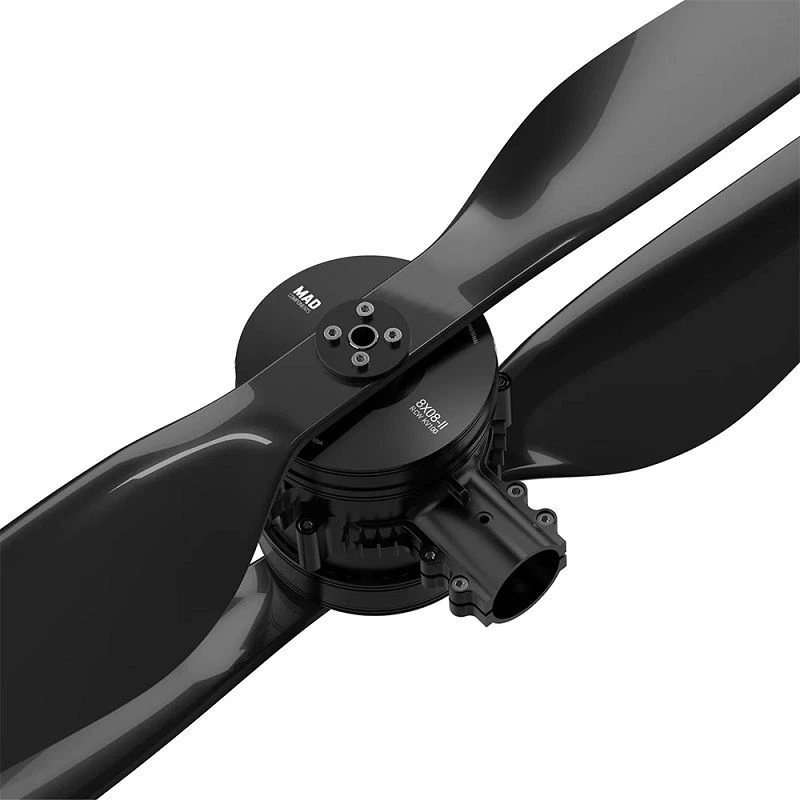

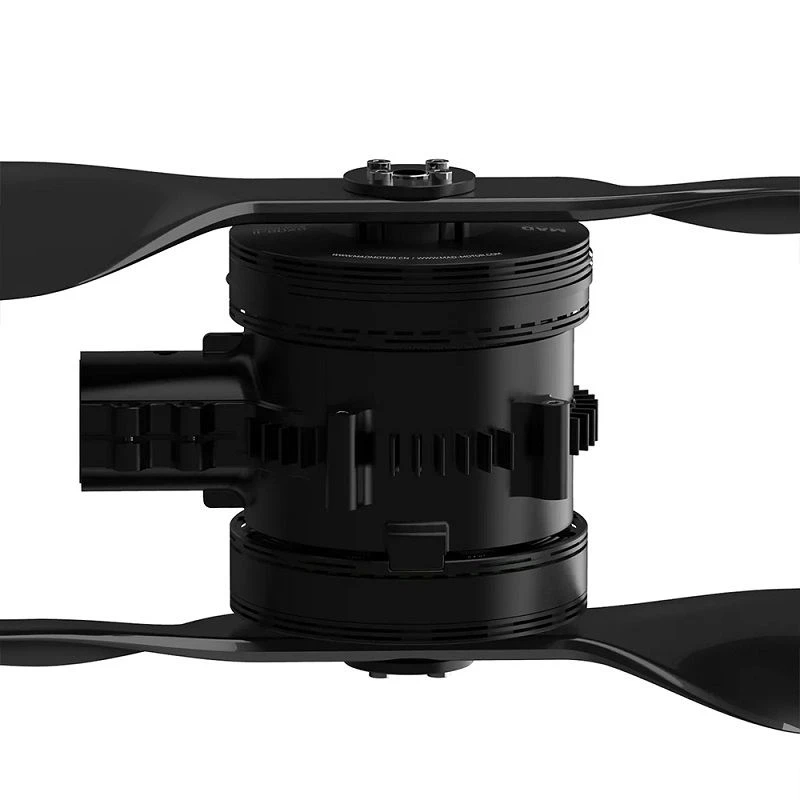

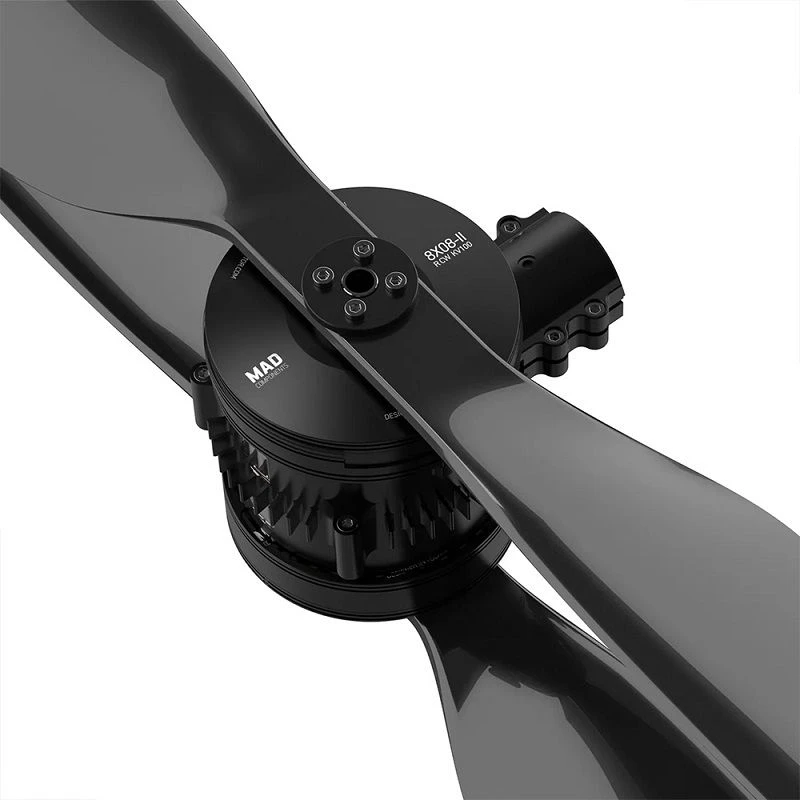

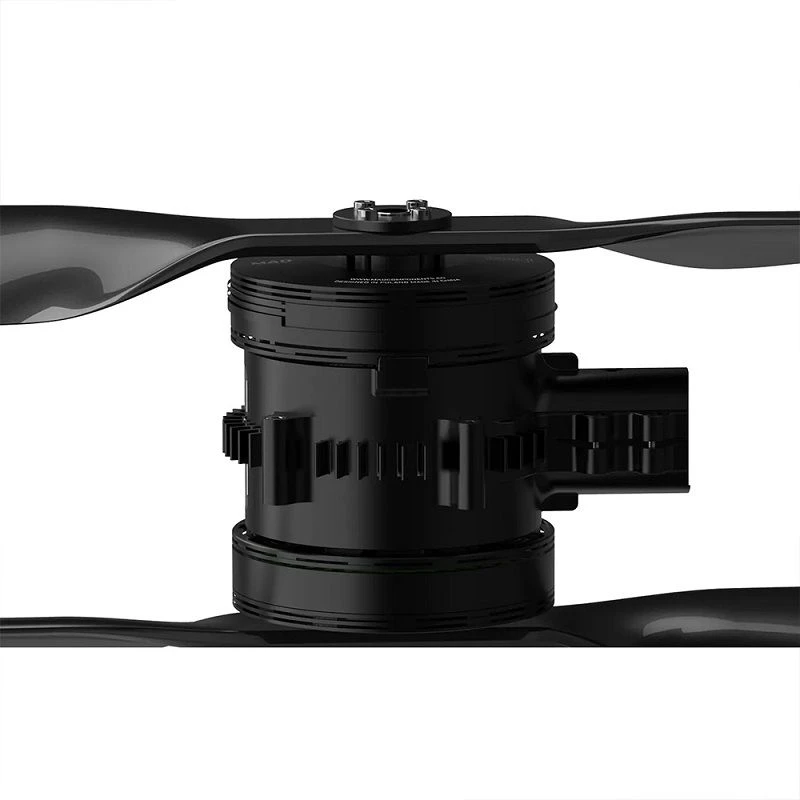

MAD 8X08-II Coaxial Tuned Propulsion System M8C08 100KV Motor 60A FOC ESC 28″ Propeller For Heavy Payload UAV Drones
Original price was: $349.00.$99.99Current price is: $99.99.
- Multiple payment options for secure shopping with SSL
- Have the best deals
- The home of quality products.
- Experience the difference quality makes.
It is suitable for a multi rotor aircraft with a carbon tube diameter of 30mm(can be turned 25mm).
Specifications:
Max Thrust: 12794g / rotor @48v(sea level)
Recommend Take-off Weight: 4000-6000/rotor @48v(sea level)
Recommend voltage: 12S Lipo
Operating Temperature: -20~60℃
Unit Combo Weight: 1131g(matching 28×9.2 blades)
Extension Wire Length: 1300mm/1300mm ((input line/signal line))
Compatible Carbon Tube: 30mml(can be tumed 25mm))
Propeller
Diameter / pitch: 28×9.2inch(711×233.6mm)
Unit Weight: 83g/pc
Motor
Size: 81x8mm
Unit Weight: 280g
FOC ESC
Max Input voltage: 58V
Max Continuous Current: 6OA
Max Throttle Signal Frequency: 500Hz
Recommend voltage: 5-14S
| LED | Red, Green |
|---|---|
| RotationDirection | CW(top)+CCW(bottom), CCW(top)+CW(bottom) |
