New Spreading System EPS200 V2.0 For E416P E616P And G Series Agricultural Spraying Drones
Original price was: $368.00.$95.99Current price is: $95.99.
- Multiple payment options for secure shopping with SSL
- Have the best deals
- The home of quality products.
- Experience the difference quality makes.
This is the latest spreading system, it is compatible with the E series agriculture drones, such as the E416S, E616S, E416P and E616P. It is also compatible with the new G series drones with proper tank.
Main Features:
1. 360 Degree Sowing
2. IP68 Waterproof
3. Tool-free Quick Release Design
4. Independent Control Module
5. Multi-type Particle Spreading
6. Two Control Modes: PWM and CAN
360° Large Flow Spreading
The spreading system EPS200 adopts 360° spreading, and the maximum discharge opening area has been increased to 43CM㎡, which greatly improves the spreading efficiency.
IP67 Waterproof Level
The spreading system adopts multiple waterproof process from the inside to the outside so the entire system reaches the IP67 waterproof level. It can be washed with water directly.
The spreading system adopts multiple waterproof process from the inside to the outside so the entire system reaches the IP67 waterproof level. It can be washed with water directly.

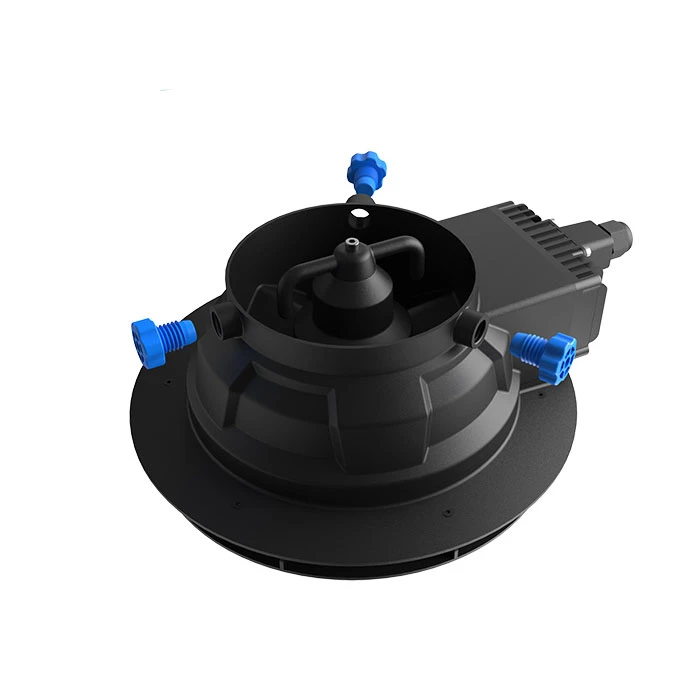

Tool-Free Quick Release Design
The spreading system and the tank adopt a seperate quick-release design, which can be quickly disassembled with three hand-tight screws, making it more convenient to use.
The spreading system and the tank adopt a seperate quick-release design, which can be quickly disassembled with three hand-tight screws, making it more convenient to use.

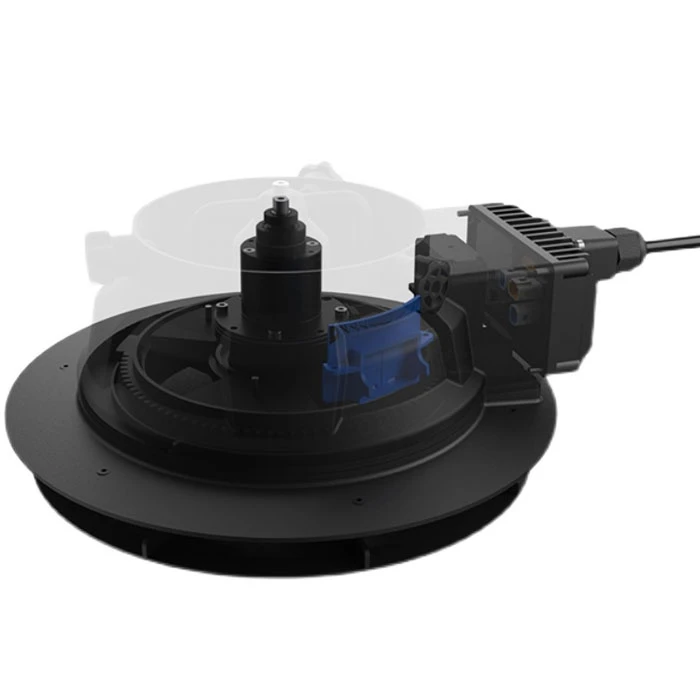

Independent Control Module
The EPS200 seeds spreading system adopts an integrated independent control module. A board-level potting process, and an integrated heat sink, which is more stable and reliable.
The EPS200 seeds spreading system adopts an integrated independent control module. A board-level potting process, and an integrated heat sink, which is more stable and reliable.
Multiple-Type Particle Spreading
The spreading system EPS200 can support different types of solid particles such as grain, fertilizer, bait and etc. Also it is suitable for sowing, fertilizing and feeding.
The spreading system EPS200 can support different types of solid particles such as grain, fertilizer, bait and etc. Also it is suitable for sowing, fertilizing and feeding.
Multi-Platform Compatibility
As an independent subsystem, it is compatible with a variety of flying platforems, and can be integrated with the spraying system by replacing a few parts.
As an independent subsystem, it is compatible with a variety of flying platforems, and can be integrated with the spraying system by replacing a few parts.
Two Control Modes
Based on the conventional PWM control mode, the new spreading system adds CAN BUS control mode, which can be deeply adapted to different flight control modes.
Based on the conventional PWM control mode, the new spreading system adds CAN BUS control mode, which can be deeply adapted to different flight control modes.

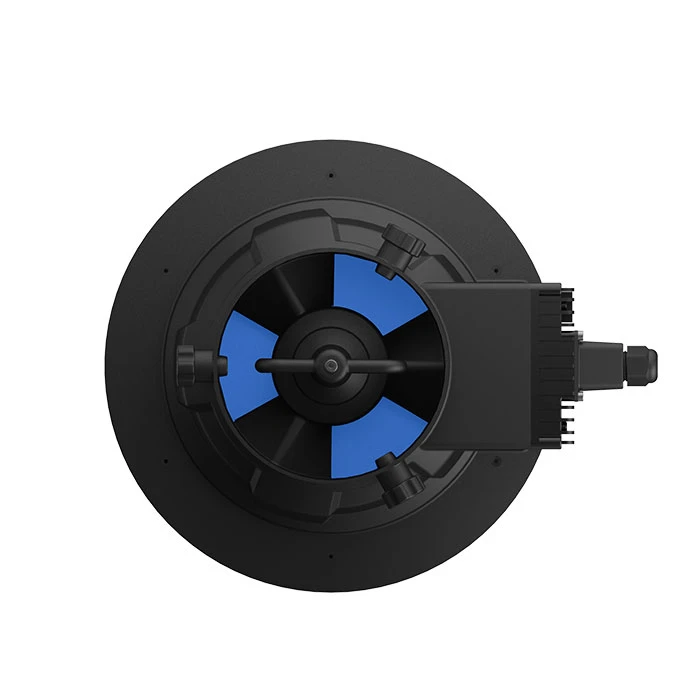

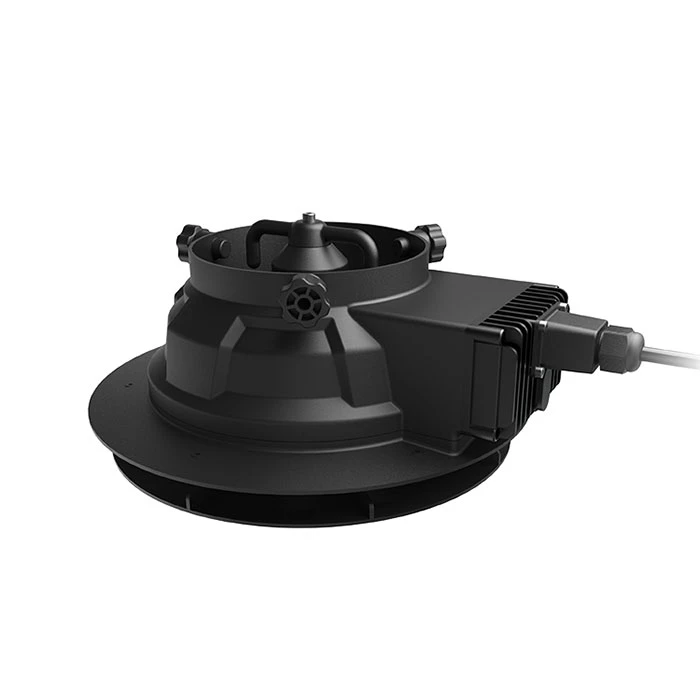

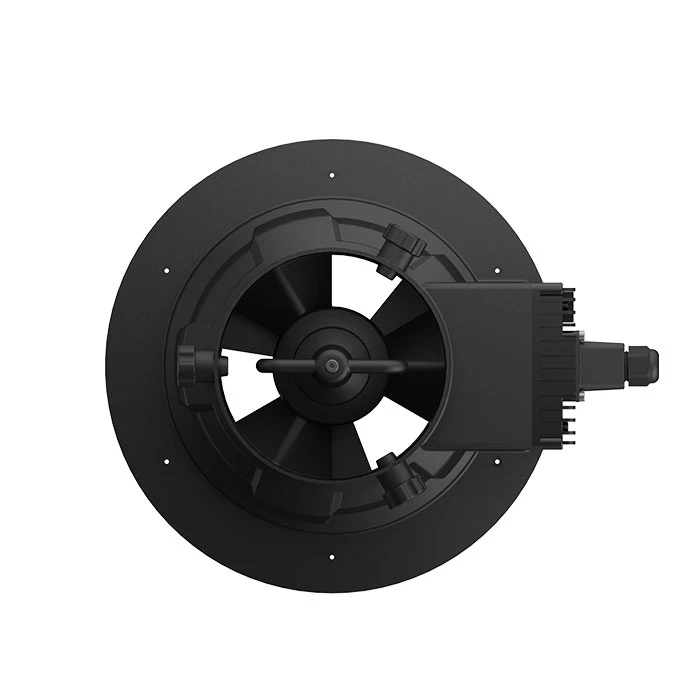

Spreading System Details
Specifications:
Item Model: EPS200
Voltage Range: DC 24V-60V
Support particle diameter: 0.5-6mm (dry granules)
Max. warehouse area: 43m²
Valve angle: 0-60°
Max. speed: 1100r/min
Spred width: 12m
Material shortage singal: Empty-0V, Full-5V
Speed control signal: 1000us-2000us
Max. Power: 120W
Protection level: IP67
Working temperature: 0-40℃
Dimensions: 300x250x145mm
Voltage Range: DC 24V-60V
Support particle diameter: 0.5-6mm (dry granules)
Max. warehouse area: 43m²
Valve angle: 0-60°
Max. speed: 1100r/min
Spred width: 12m
Material shortage singal: Empty-0V, Full-5V
Speed control signal: 1000us-2000us
Max. Power: 120W
Protection level: IP67
Working temperature: 0-40℃
Dimensions: 300x250x145mm
