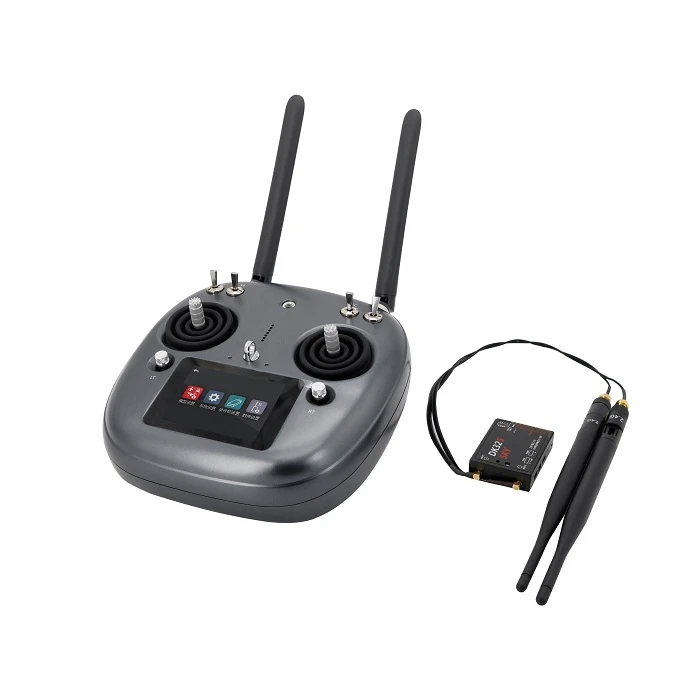

SIYI DK32S 2.4G 16 Channel Remote Control Transimitter For Agricultural Drone Fixed Wing Multi-Rotors

SIYI DK32S is a professional radio transmitting and receiving system for rc helicopter, airplane, multicopters, UAV agriculture drones and robotic applications. It is based on FHSS frequency hopping technology. The radio & datalink transmission distance is up to 20km. It is compatible with Topgun, Xaircraft, Boying, PIX, APM, Jiyi and other flight controller in the market.

Main Features:
1. 20KM super long distance data transmission and real-time telemetry
2. Extraordinary handling & accurate manipulating experience
3. Advanced SHTT spred-spectrum technology
4. 16-Channel multi-functional fast-response mode
5. Voice broadcast with vibration alert
6. High brightness colorful LCD touch screen, brand new GUI system
7. Fufills the requirements of complicated models or robots
8. Multi-drone control by one radio

Specifications:
Item Brand: SIYI
Item Model: SIYI DK32S
Transmission Range (Radio & Datalink): up to 20 km
Frequency Band: Radio & Datalink 2.400-2.483 GHz
Video: 5.8 Ghz
Channels: 26 physical channels, 16 transmitting channels
Applicable Models: Planes/Helicopters/Gliders/Quadcopters/Multi-rotors/Vehicles/Boat/Robotics
Compatible Flight Controllers: TOPXGUN T1-A, WOOZOOM THEONE-A – A, EFY FINIX200M, JIYI K3-A, BOYING PALADIN, CHIAO MATRIX, CFUAS C1-A, PIX, APM

GROUND STATION (TRANSMITTER)
Ports for Video Output: USB
Ports for PC, Tablets, and Smartphone: Micro-USB/Bluetooth
Touchscreen Language Display: Chinese/English
Dimensions: 194.5 x 172.5 x 114 mm
Item Weight: 942 g (with phone holder)
Operating Temperature: 0℃ ~ 55℃
Battery Built-in: 15000 mAh Li-Po 1S 3.7V
Charging Port: Micro-USB (5V/2A)

SKY STATION (RECEIVER)
Signal Output: 16 channels of S-Bus, 5 channels of PWM
Ports for Flight Controllers: UART
Dimensions (without antennas): 61 x 60 x 21 mm
Weight (without antennas): 82 g
Antenna Gain: 5 dBi
Working Voltage: 15 – 50 V
Telemetry Voltage: 15 – 50 V
Operating Temperature: -10℃ ~ 55℃

Note: Due to the built-in battery in the radio, the shipping time will be longer than usual.
