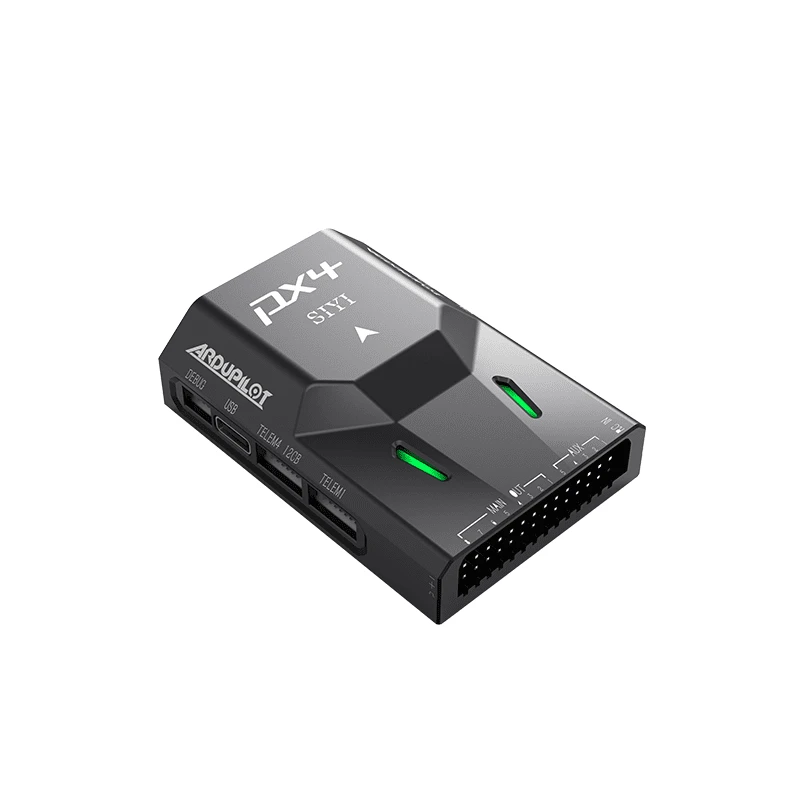

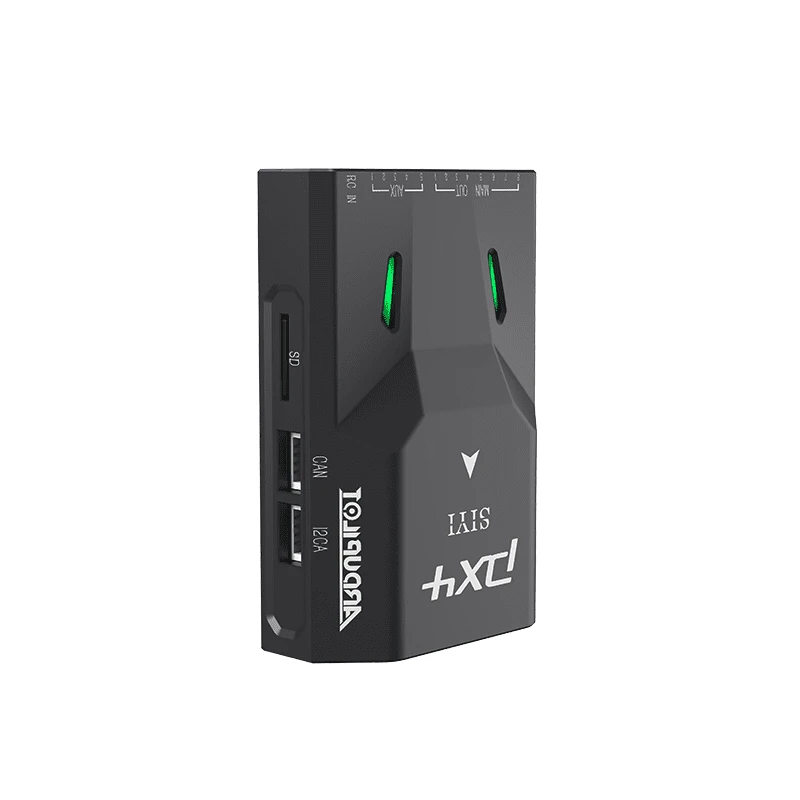

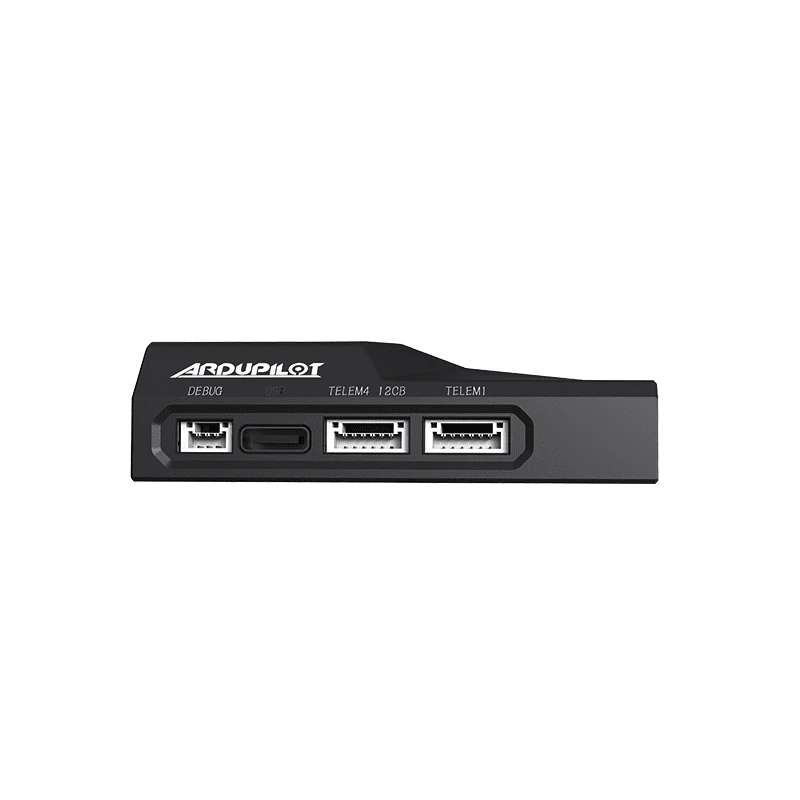

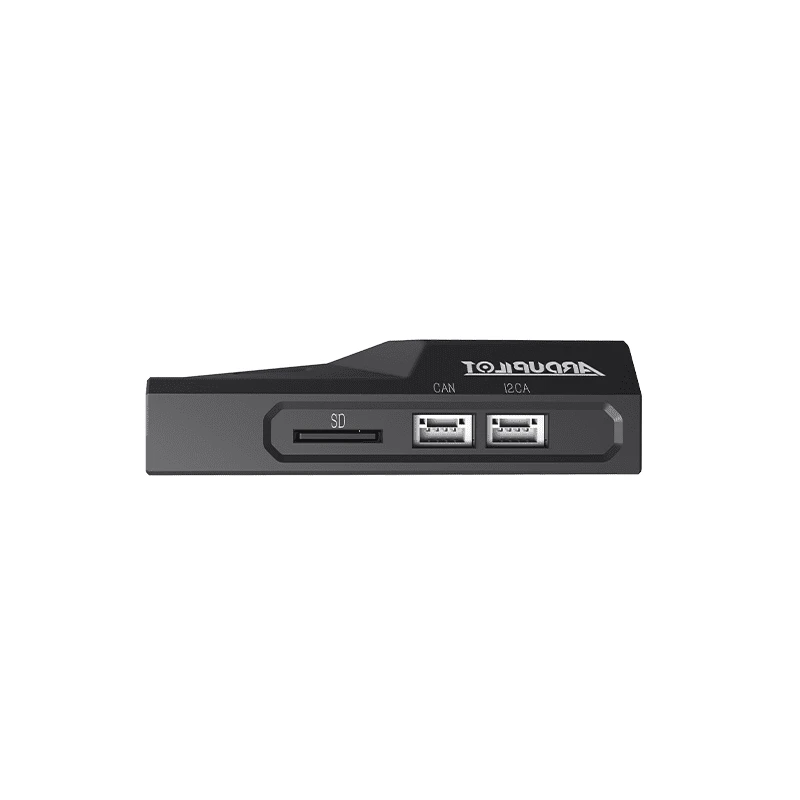

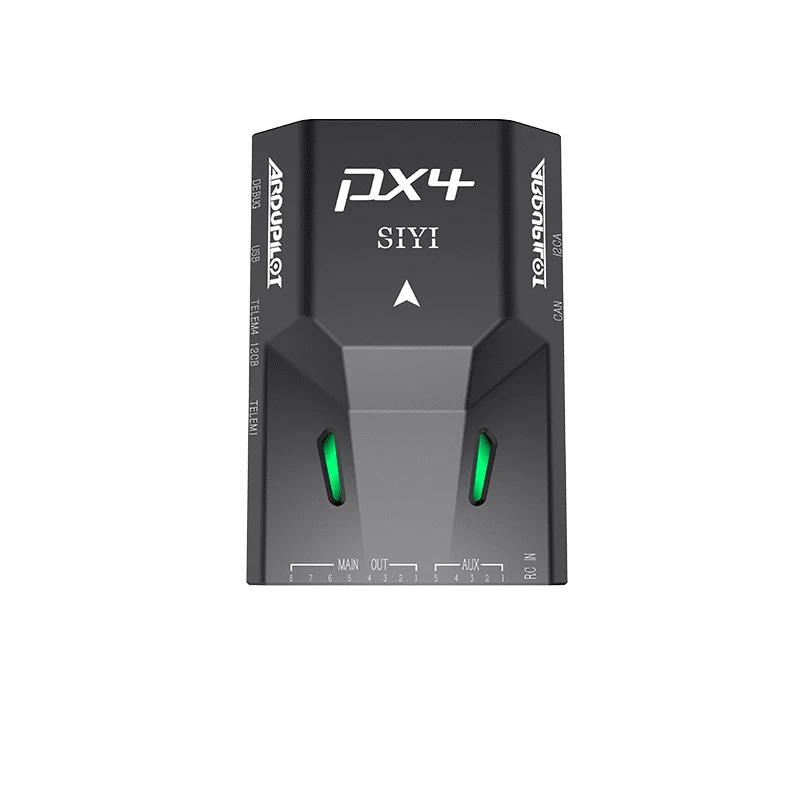

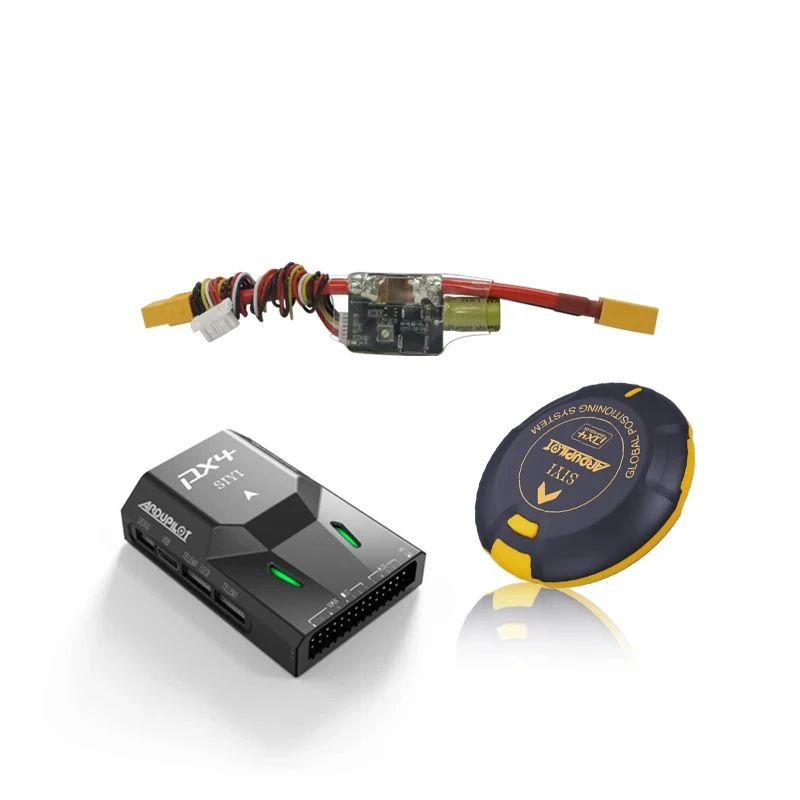

SIYI N7 Autopilot PX4 And Ardupilot Firmware Compatible Flight Controller With M9N GPS

SIYI N7 Autopilot PX4 And Ardupilot Firmware Compatible Flight Controller With M9N GPS - Image 2

SIYI N7 Autopilot PX4 And Ardupilot Firmware Compatible Flight Controller With M9N GPS - Image 3

SIYI N7 Autopilot PX4 And Ardupilot Firmware Compatible Flight Controller With M9N GPS - Image 4

SIYI N7 Autopilot PX4 And Ardupilot Firmware Compatible Flight Controller With M9N GPS - Image 5

SIYI N7 Autopilot PX4 And Ardupilot Firmware Compatible Flight Controller With M9N GPS - Image 6

SIYI N7 Autopilot PX4 And Ardupilot Firmware Compatible Flight Controller With M9N GPS

Original price was: $329.99.Current price is: $97.99.

SKU: CMMTD 1159754676 Categories: Flight Controller/GPS, MULTI-ROTORS

Multiple payment options for secure shopping with SSL
Have the best deals
The home of quality products.
Experience the difference quality makes.

Description
Reviews (0)

PRODUCT DESCRIPTION

The SIYI N7 flight controller is equipped with the H7 double-precision floating-point unit processor. It adoptsbuilt-in dual IMU redundancy and internal shock absorption structure design, which endows the aircraft with highreliability. The N7 flight controller is compatible with both Ardupilot and PX4 open-source ecosystem to achieve adbundant application scenarios and provide stable andcomprehensive systematic solutions for enthusiasts andindustry application explorers of drones, unmanned vehicles and ships, smart robots.

Specifications:
Hardware
Main Processor: STM32H743IIK6 (32 Bit Arm® Cortex®-M7, 480 MHz, 2 MB memory, 1 MB RAM)
Coprocessor: STM32F103 (32 Bit Arm® Cortex®-M3, 72 MHz, 20 KB SRAM)

Sensors
Accelerometer / Gyro: BMI088 / ICM20689
Electronic Compass: IST8310
Barometer: MS5611

External Interface
UART Serial Port: 4
I2C: 3
CAN: 1
PWM Output:
– 8 x Standard PWM IO
– 5 x Programmable IO
RC Input (SBus): 1
Power Module Input: 1
GPS & Safety: 1
USB (Type-C): 1
TF Slot: 1

Overall
Compatible Model: PX4 / Ardupilot Firmware (Planes / Multirotors / Helicopters / VTOL / UGV / USV)
Power Module Voltage Input: 4.5 ~ 5.5 V
USB Voltage Input: 5 V ( ± 0.25 V)
Servo Voltage: 0 ~ 10 V
Working Temperature: -20 ~ 65 ℃
Product Dimension: 47 x 68 x 19 mm
Product Weight: 57 g
