Siyi VD32 2.4G 16CH Radiolink Datalink Videolink 3in1 Remote Controller For UAV Agriculture Drone Multirotors Airplanes

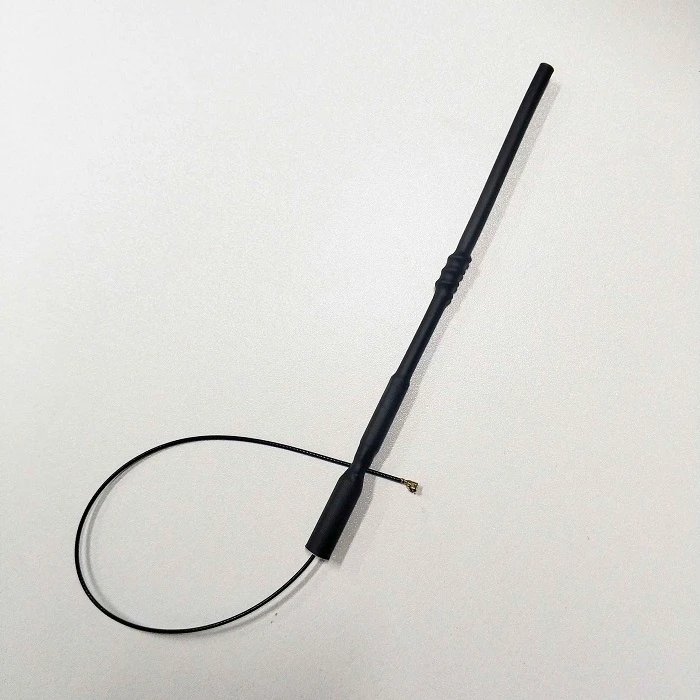

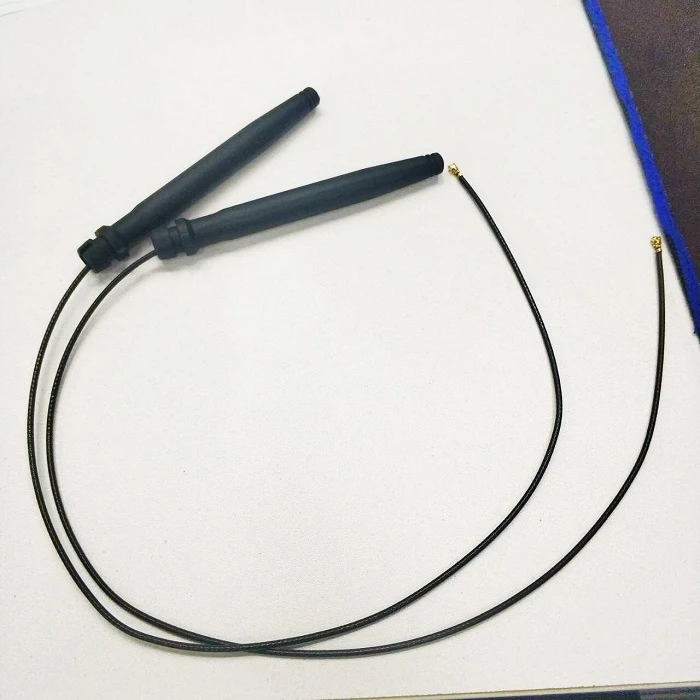

The antenna has three versions,and please send an email which one you need.

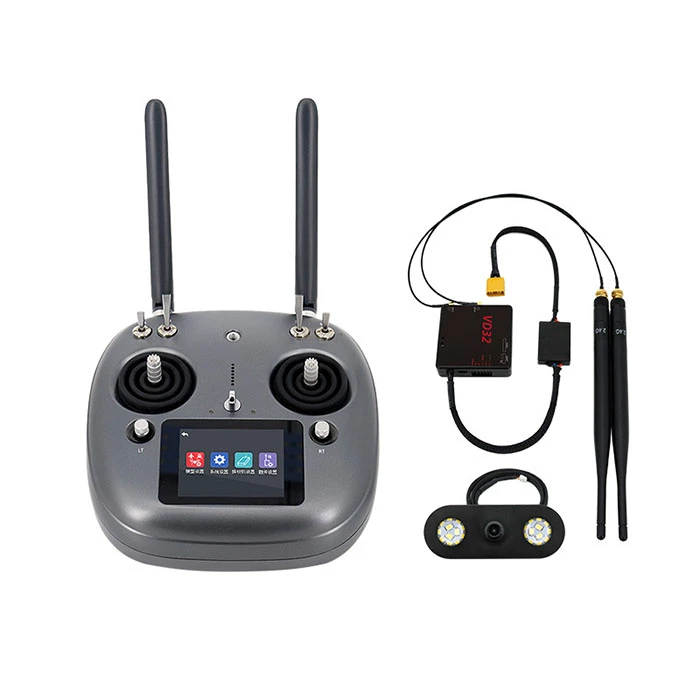

SIYI VD32 2.4G radio is 3in1 intelligent radio. The Radiolink and datalink transmission integrated with a digital videolink module makes VD32 hte most intelligent ground station for FPV drone and agriculture drones. The effective operation range for the drones at 2 kilometers.
With the FOV 120°camera,you can monitor the real-time image from your drones.

Main Features:
-Radiolink, Datalink & Videolink 3in1
-HD FPV Camera & Navigation Light
-App Floating Window
-Multi-Drone Control
-RC Relay
-Farming Voice
-GPS Pointer

Navigation Lights
Operation at night are safer than ever with VD32’s navigation lights of 8W consumption and 120° seraching angle.

Specifications:
Transmission Range: 2 km (effective operation range with videolink)
Frequency Band: 2.400-2.483 GHz
Channels: 26 physical channels, 16 transmitting channels
Applicable Models: Planes/Helicopters/Gliders/Quadcopters/Multi-rotors/Vehicles/Boat/Robotics
Compatible Flight Controllers: TOPXGUN T1-A,WOOZOOM THEONE-A – A,EFY FINIX200M,JIYI K3-A,JIYI K++,BOYING PALADIN V2,
CHIAO MATRIX,CFUAS C1-A,PIX,APM and etc.

FPV CAMERA & NAVIGATION LIGHT
Video Resolution: Max: 480p@24fps
Camera Angle: FOV 120°
Dimension (Videolink Module): 106*25*41 mm
Item Weight: 108 g
Power Consumption (Navigation Light): 8 W
Luminous Flux: 120-140lm/W
LED Type: Translucent
LED Searching Angle: 120°
Operation Temperature: -10℃ to 55℃

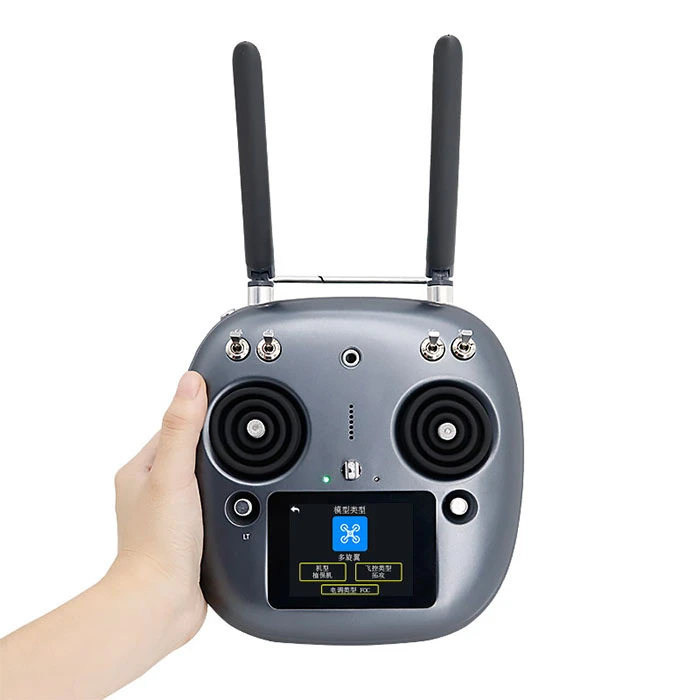

GROUND STATION (TRANSMITTER)
Videolink Output Port: USB
Datalink Output Port: USB, Bluetooth, WIFI(optional)
Touchscreen Language Display: Chinese/English
Dimensions: 194.5 x 172.5 x 114 mm
Item Weight: 610 g
Operating Temperature: 0℃ ~ 55℃
Battery: Built-in 8000 mAh Li-Po 1S 3.7V
Charging Port: Micro-USB (5V/2A)

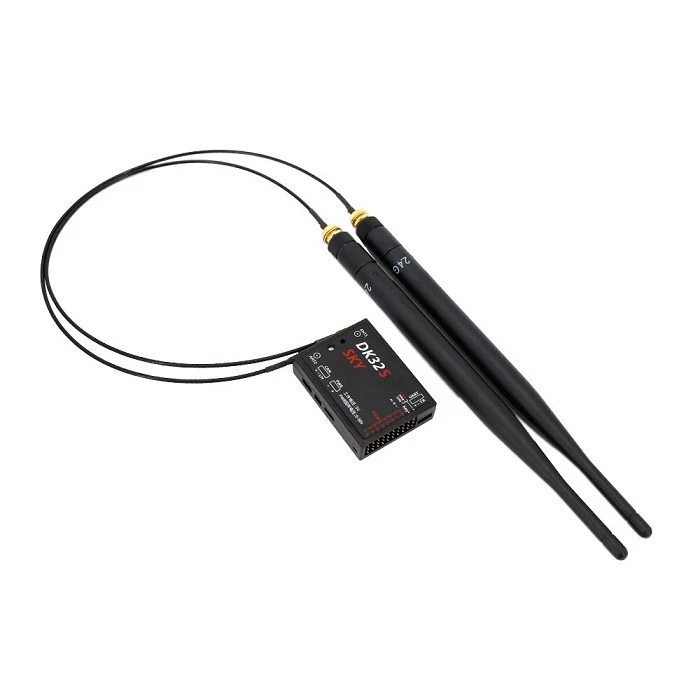

SKY STATION (RECEIVER)
Signal Output: 16 channels of S-Bus, 5 channels of PWM
Ports for Flight Controllers: UART, CAN(optional)
Dimensions (without antennas): 59 x 59 x 16 mm
Weight (without antennas): 50 g
Antenna Gain: 5 dBi
Working Voltage: 15 – 50 V
Telemetry Voltage: 15 – 50 V
Operating Temperature: -10℃ ~ 55℃
