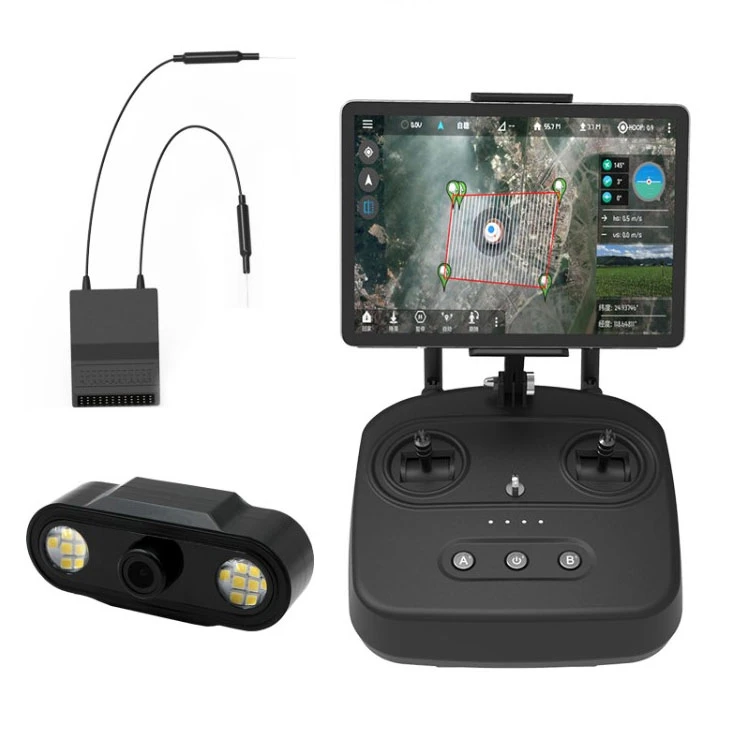

Skydroid T10 2.4G 10 Channel Remote Controller 10km Video Transmission With Camera 4in1 Radio For MultiRotors UAV AG Drones

Skydroid T10 is great for UAV agriculture drones, helicopters, fixed wing, multi-rotor and other industrial applications. Skydroid T10 remote controller is highly integrated with data transmission, video transmission and telemetry. With LORA technology and redundant algorithm to achieve more than 10km long video transmission distance based on 2.4GHz and 100mW transmit power consumption.

Specifications:
Item Brand: Skydroid
Item model: T10
Channel: 10
Working voltage: 4.2V
Working current: 100mA
Frequency: 2.400-2.483GHZ
Frequency-Hopping: Newst FHSS frequency-hopping
Upgrading: APP online
Power Supply: 18650 x 2 (battery not included)
Working Time: about 20 hours
Charging Port: Micro-USB
Size: 130 x150x20mm
Weight: 525g
Applications: helicopter, fixed wing, multi-rotor, unmanned vehicle and etc.

Skydroid R10 Receiver
Item model: R10
Working voltage: 4.5-5.5V
Working current: 100mA
Size: 50x31x12mm
Weight: 20g

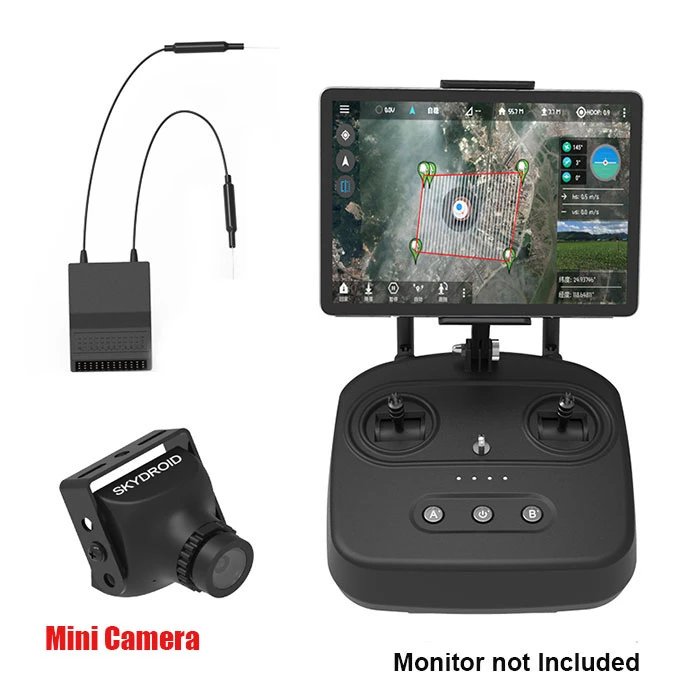

Mini Camera:
Working voltage: 5V
Working Current: 180mA
Size: 30x29x26mm
Weight: 15.6g

Three-in-one Camera
-4in1 link, the camera integrated with 8W higlight LED
-Ultra high-efficiency LED, 150 ° lens
Working voltage: 5V
Size: 105x43x35mm
Weight：110g

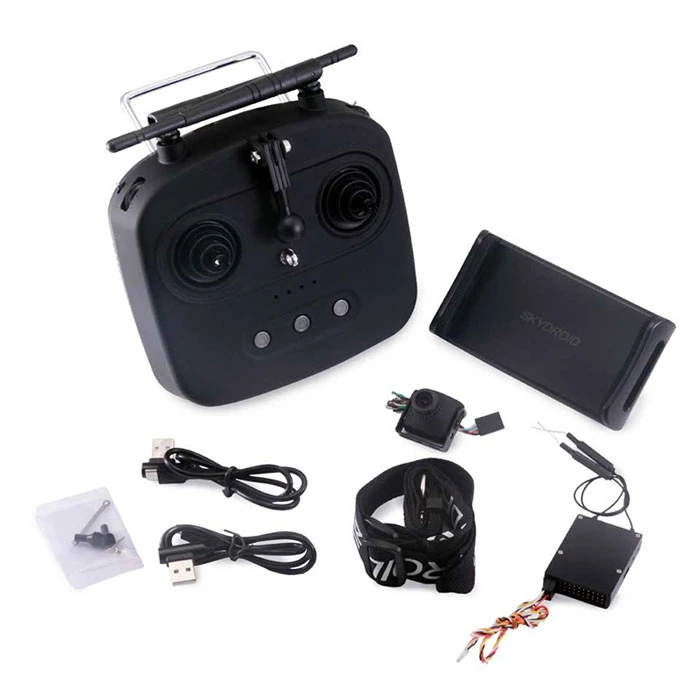

Package Included:
Skydroid T10 10CH Remote controller x 1
Skydroid R10 receiver x 1
Mini Camera or 3in1 Camera x 1 (Optional)

Skydroid T10 User Manual
