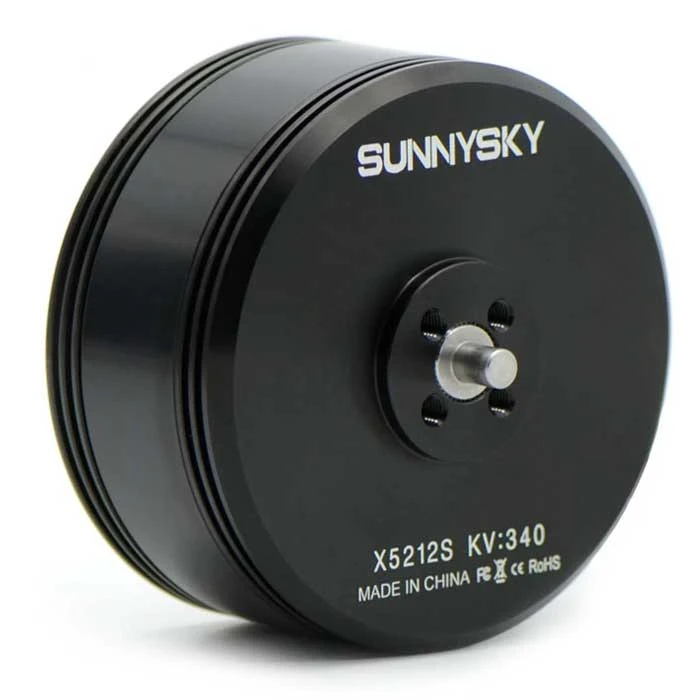

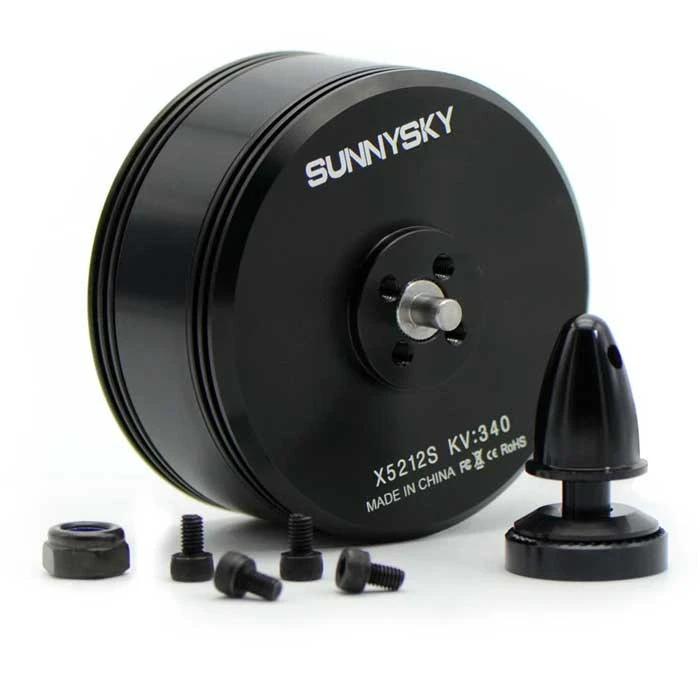

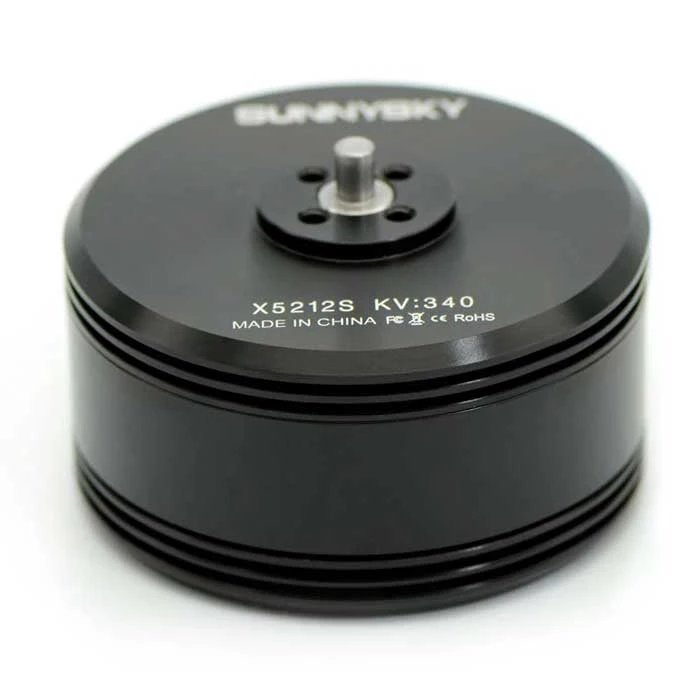

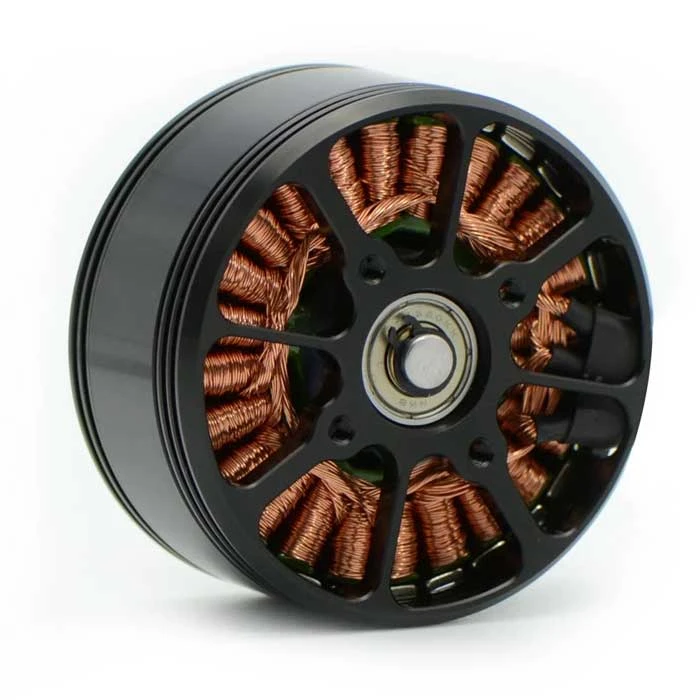

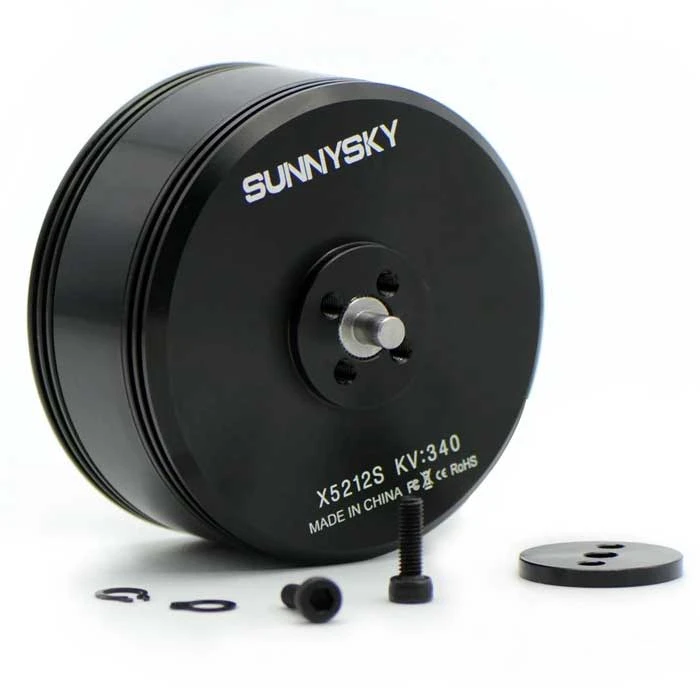

Sunnysky X5212S 280KV 340KV High Power 6S Brushless Motor For Drones

Sunnysky X5212S 280KV 340KV High Power 6S Brushless Motor For Drones - Image 2

Sunnysky X5212S 280KV 340KV High Power 6S Brushless Motor For Drones - Image 3

Sunnysky X5212S 280KV 340KV High Power 6S Brushless Motor For Drones - Image 4

Sunnysky X5212S 280KV 340KV High Power 6S Brushless Motor For Drones - Image 5

Sunnysky X5212S 280KV 340KV High Power 6S Brushless Motor For Drones

Original price was: $74.99.Current price is: $52.49.

SKU: CMMTD 1957229389 Categories: Motor for Drones, MULTI-ROTORS

Multiple payment options for secure shopping with SSL
Have the best deals
The home of quality products.
Experience the difference quality makes.

PRODUCT DESCRIPTION

Sunnysky X5212S series motor is great for heavy lift UAV drones, the max thrust can reach 5500g. Sunnysky X5212S brushless motor is suitable with 6S battery. And it is suitable for 17″ to 22″ propellers. With the EZO bearing, the X5212S motors are stable, quiet, and have great longevity.

Specifications:

Motor Model / KV	X5212S/ KV280	X5212S/ KV340
Stator/Rotor Poles	24N28P	24N28P
Internal resistance	74mΩ	67mΩ
Motor size	φ59.0*37.5mm	φ59.0*37.5mm
Shaft diameter	4.0mm	4.0mm
AWG	16#AWG 600mm	16#AWG 600mm
Motor weight(wire included)	260g	260g
Motor weight(wire excluded)	No data	No data
Rated operational voltage	6S	6S
No-load current	0.9A/10V	1.0A/10V
Maximum continuous power	800W	1032W
Maximum continuous current	36A/30s	46.5A/30s
ESC recommended use	60A	60A
Propeller size recommended use	175.8/186.1/206.5/226.6	175.8/186.1/206.5/226.6

X5212S/ KV280 Test Report

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
17*5.8	22.2	1	300	22	13.51	42℃
		2.2	600	49	12.29
		3.7	900	82	10.96
		5.5	1200	122	9.83
		7.4	1500	164	9.13
		9.8	1800	218	8.27
		12	2100	266	7.88
		14.2	2400	315	7.61
		17.2	2660	382	6.97
18*6.1	22.2	0.9	300	20	15.02	47℃
		2.2	600	49	12.29
		3.7	900	82	10.96
		5.4	1200	120	10.01
		7.3	1500	162	9.26
		9.5	1800	211	8.53
		11.7	2100	260	8.09
		14.4	2400	320	7.51
		16.9	2700	375	7.20
		20.1	3080	446	6.90
20*6.5	22.2	0.9	300	20	15.02	59℃
		2.1	600	47	12.87
		3.5	900	78	11.58
		5.1	1200	113	10.60
		6.9	1500	153	9.79
		8.7	1800	193	9.32
		10.8	2100	240	8.76
		13.1	2400	291	8.25
		15.8	2700	351	7.70
		18.6	3000	413	7.27
		20.9	3300	464	7.11
		24.2	3600	537	6.70
		26	3820	577	6.62
22*6.6	22.2	0.8	300	18	16.89	75℃
		1.9	600	42	14.22
		3.2	900	71	12.67
		4.8	1200	107	11.26
		6.4	1500	142	10.56
		8.2	1800	182	9.89
		10.2	2100	226	9.27
		12.5	2400	278	8.65
		14.9	2700	331	8.16
		17.4	3000	386	7.77
		20.3	3300	451	7.32
		23	3600	511	7.05
		26.2	3900	582	6.71
		29.2	4200	648	6.48
		32.6	4460	724	6.16
		34.2	4630	759	6.10
		35.8	4820	795	6.06

X5212S/ KV340 Test Report

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
17*5.8	22.2	1	300	22	13.51	45℃
		2.3	600	51	11.75
		3.9	900	87	10.40
		5.7	1200	127	9.48
		7.7	1500	171	8.78
		9.9	1800	220	8.19
		12.2	2100	271	7.75
		14.9	2400	331	7.26
		17.5	2700	389	6.95
		20.5	3000	455	6.59
		22.5	3200	500	6.41
18*6.1	22.2	1	300	22	13.51	50℃
		2.4	600	53	11.26
		3.9	900	87	10.40
		5.7	1200	127	9.48
		7.8	1500	173	8.66
		10.1	1800	224	8.03
		12.5	2100	278	7.57
		15	2400	333	7.21
		17.8	2700	395	6.83
		21.2	3000	471	6.37
		24.1	3300	535	6.17
		27.2	3620	604	5.99
20*6.5	22.2	0.9	300	20	15.02	65℃
		2.2	600	49	12.29
		3.6	900	80	11.26
		5.2	1200	115	10.40
		7.1	1500	158	9.52
		9.1	1800	202	8.91
		11.3	2100	251	8.37
		13.6	2400	302	7.95
		16.3	2700	362	7.46
		19.1	3000	424	7.08
		22.4	3300	497	6.64
		25.5	3600	566	6.36
		28.4	3900	630	6.19
		32.4	4200	719	5.84
		34.4	4450	764	5.83
22*6.6	22.2	0.8	300	18	16.89	85℃
		2	600	44	13.51
		3.4	900	75	11.92
		4.9	1200	109	11.03
		6.7	1500	149	10.08
		8.7	1800	193	9.32
		10.8	2100	240	8.76
		12.9	2400	286	8.38
		15.5	2700	344	7.85
		18	3000	400	7.51
		20.9	3300	464	7.11
		24.2	3600	537	6.70
		28	3900	622	6.27
		31.1	4200	690	6.08
		35.4	4500	786	5.73
		38.8	4800	861	5.57
		42.8	5100	950	5.37
		46.5	5520	1032	5.35
