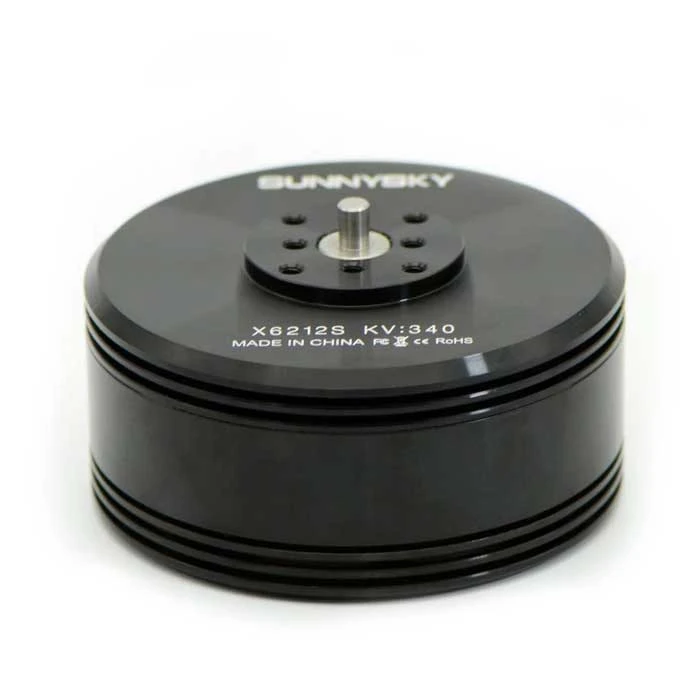

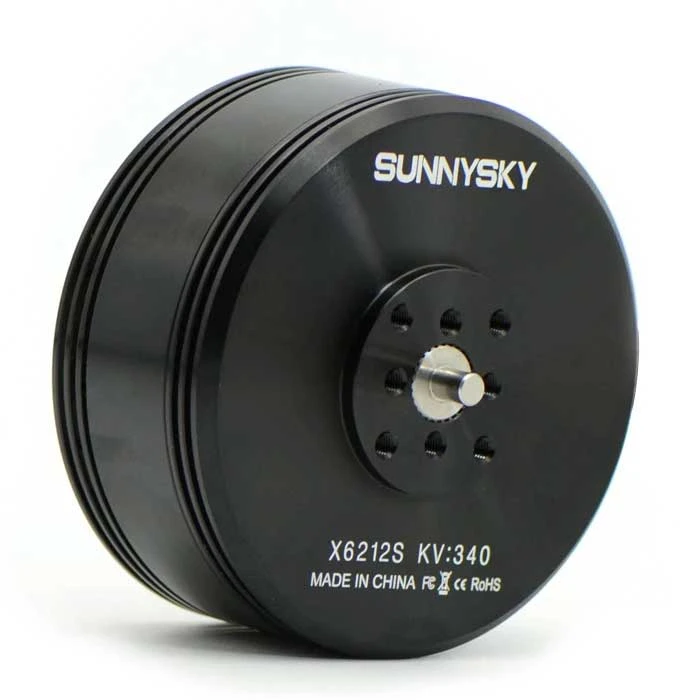

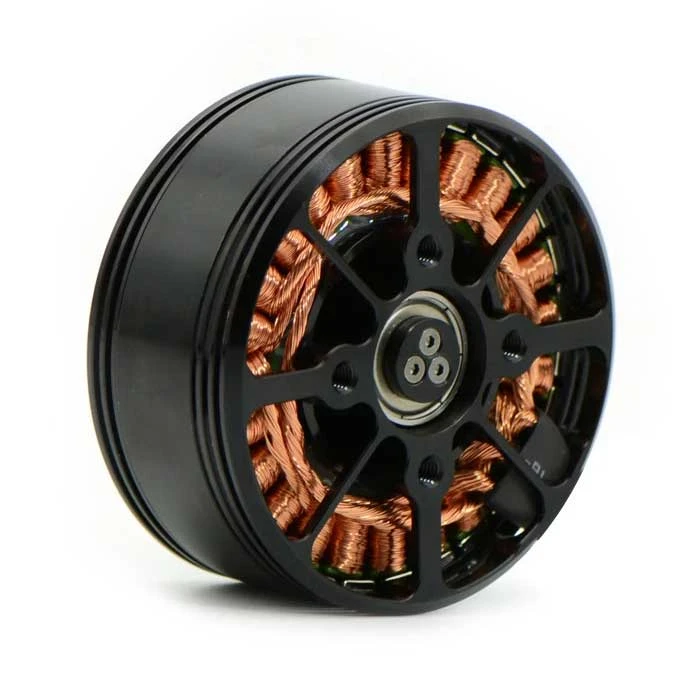

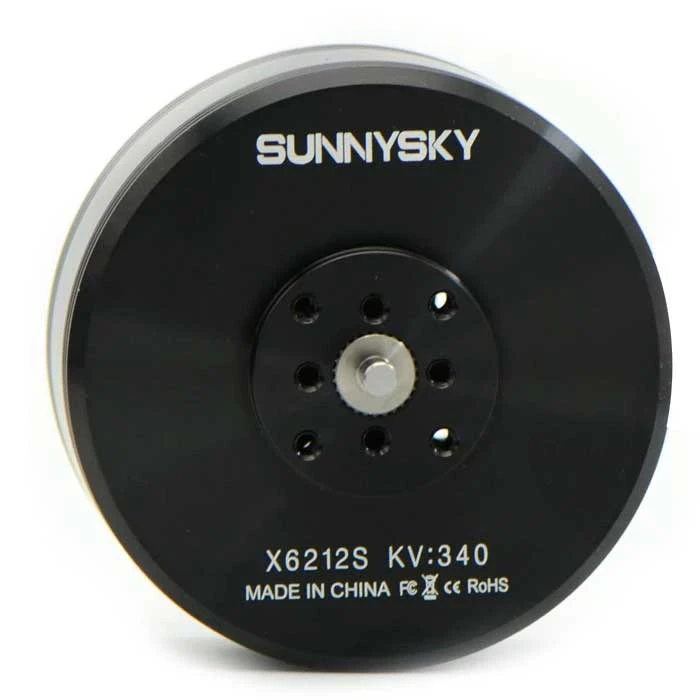

Sunnysky X6212S 180KV 300KV 340KV High Power Brushless Motor

Sunnysky X6212S 180KV 300KV 340KV High Power Brushless Motor - Image 2

Sunnysky X6212S 180KV 300KV 340KV High Power Brushless Motor - Image 3

Sunnysky X6212S 180KV 300KV 340KV High Power Brushless Motor - Image 4

Sunnysky X6212S 180KV 300KV 340KV High Power Brushless Motor - Image 5

Sunnysky X6212S 180KV 300KV 340KV High Power Brushless Motor

Original price was: $79.99.Current price is: $55.99.

SKU: CMMTD 1801752583 Categories: Motor for Drones, MULTI-ROTORS

Multiple payment options for secure shopping with SSL
Have the best deals
The home of quality products.
Experience the difference quality makes.

PRODUCT DESCRIPTION

Sunnysky X6212S series motor is great for heavy lift UAV drones, the max thrust can reach 8000g. And it is suitable for 20″ to 22″ propellers. With the EZO bearing, the X6212S motors are stable, quiet, and have great longevity.

Sunnysky X6212S brushless motor is suitable with 6S-12S battery. The X6212S 180KV motor is suitable with 12S battery while the X6212S 300KV and 350KV Brushless motors are suitable with 6S battery. You can choose the proper one according to your requirements.

Specifications:

Motor Model / KV	X6212S/ KV180	X6212S/ KV300	X6212S/ KV340
Stator/Rotor Poles	24N28P	24N28P	24N28P
Internal resistance	102mΩ	49mΩ	50mΩ
Motor size	φ69.3*40.0mm	φ69.3*40.0mm	φ69.3*40.0mm
Shaft diameter	4.0mm	4.0mm	4.0mm
AWG	20AWG 100mm	20AWG 100mm	20AWG 100mm
Motor weight(wire included)	323g	323g	323g
Motor weight(wire excluded)	No data	No data	No data
Rated operational voltage	12S	6S	6S
No-load current	1.5A/10V	1.6A/10V	1.8A/10V
Maximum continuous power	1680W	1100W	1250W
Maximum continuous current	38A/30s	49.5A/30s	56A/30s
ESC recommended use	80A	60A	80A
Propeller size recommended use	206.5/226.6	206.5/226.6	206.5/226.6

X6212S 180KV Test Report

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
20*6.5	44.4	0.9	500	40	12.51	75℃
		1.4	750	62	12.07
		2	1000	89	11.26
		2.8	1250	124	10.05
		3.5	1500	155	9.65
		4.4	1750	195	8.96
		5.3	2000	235	8.50
		6.4	2300	284	8.09
		7.6	2600	337	7.71
		9.2	3000	408	7.34
		11.5	3500	511	6.85
		14.2	4000	630	6.34
		17	4500	755	5.96
		19.8	5000	879	5.69
		22.3	5500	990	5.55
		26	6000	1154	5.20
		29.2	6500	1296	5.01
		30.6	6740	1359	4.96
22*6.6	44.4	0.8	500	36	14.08	100℃
		1.3	750	58	12.99
		2	1000	89	11.26
		2.6	1250	115	10.83
		3.2	1500	142	10.56
		4	1750	178	9.85
		4.8	2000	213	9.38
		6	2300	266	8.63
		7	2600	311	8.37
		8.6	3000	382	7.86
		10.7	3500	475	7.37
		13	4000	577	6.93
		15.3	4500	679	6.62
		18.1	5000	804	6.22
		21	5500	932	5.90
		24	6000	1066	5.63
		26.9	6500	1194	5.44
		30.6	7000	1359	5.15
		34.8	7500	1545	4.85
		36.3	7740	1612	4.80
		37.6	8000	1669	4.79

X6212S 300KV Test Report

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
20*6.5	22.2	1.8	500	40	12.51	52℃
		3.1	750	69	10.90
		4.4	1000	98	10.24
		5.8	1250	129	9.71
		7.4	1500	164	9.13
		9.2	1750	204	8.57
		10.9	2000	242	8.27
		13.3	2300	295	7.79
		15.8	2600	351	7.41
		19.2	3000	426	7.04
		24.3	3500	539	6.49
		30	4000	666	6.01
		35	4530	777	5.83
22*6.6	22.2	1.7	500	38	13.25	62℃
		2.8	750	62	12.07
		4.1	1000	91	10.99
		5.4	1250	120	10.43
		6.8	1500	151	9.94
		8.4	1750	186	9.38
		10	2000	222	9.01
		12.2	2300	271	8.49
		14.6	2600	324	8.02
		17.9	3000	397	7.55
		22.2	3500	493	7.10
		26.8	4000	595	6.72
		32.3	4500	717	6.28
		38	5000	844	5.93
		42	5500	932	5.90

X6212S 340KV Test Report

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
20*6.5	22.2	1.9	500	42	11.85	62℃
		3.2	750	71	10.56
		4.7	1000	104	9.58
		6.1	1250	135	9.23
		7.9	1500	175	8.55
		9.7	1750	215	8.13
		11.7	2000	260	7.70
		14.5	2300	322	7.15
		17.1	2600	380	6.85
		20.7	3000	460	6.53
		25.9	3500	575	6.09
		30.9	4000	686	5.83
		37	4500	821	5.48
		43.8	5000	972	5.14
		46.5	5300	1032	5.13
22*6.6	22.2	1.9	500	42	11.85	72℃
		2.9	750	64	11.65
		4.4	1000	98	10.24
		5.6	1250	124	10.05
		7.2	1500	160	9.38
		9	1750	200	8.76
		10.8	2000	240	8.34
		13.2	2300	293	7.85
		15.6	2600	346	7.51
		19	3000	422	7.11
		23.5	3500	522	6.71
		28.4	4000	630	6.34
		33.6	4500	746	6.03
		40.1	5000	890	5.62
		47.2	5500	1048	5.25
		52.2	6000	1159	5.18
		54.5	6200	1210	5.12
