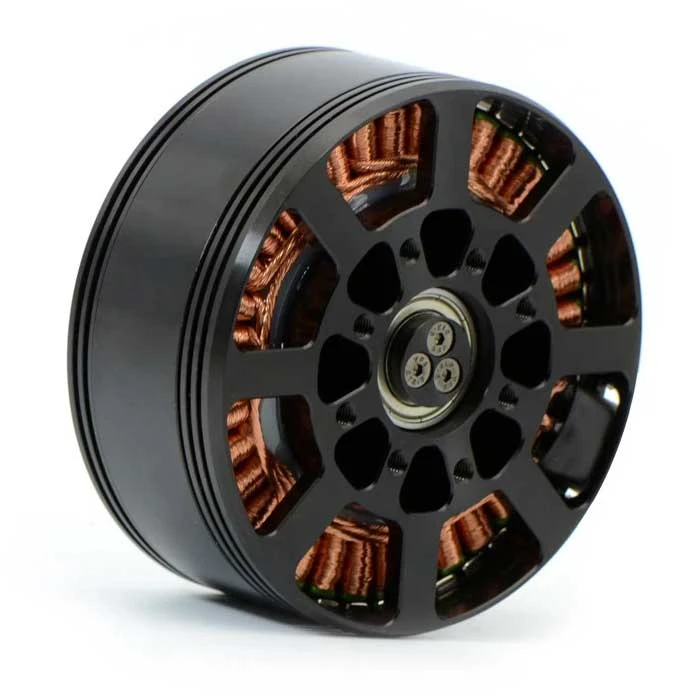

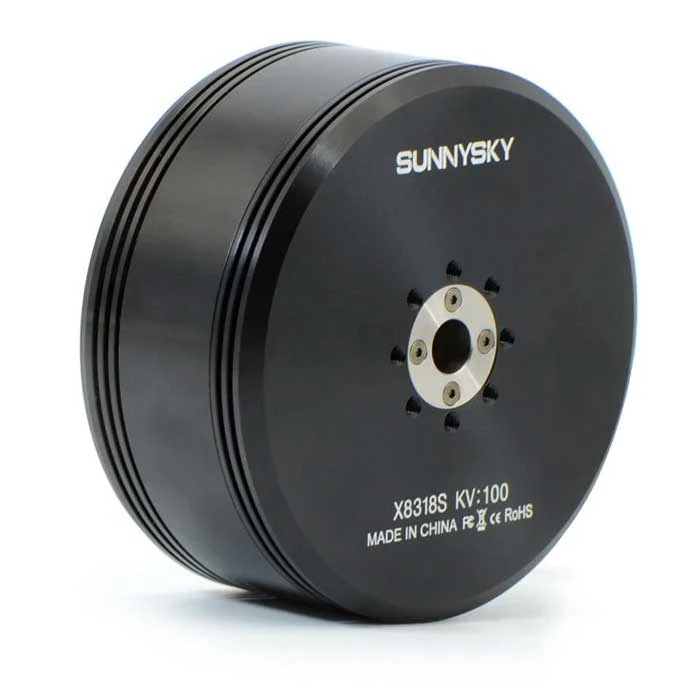

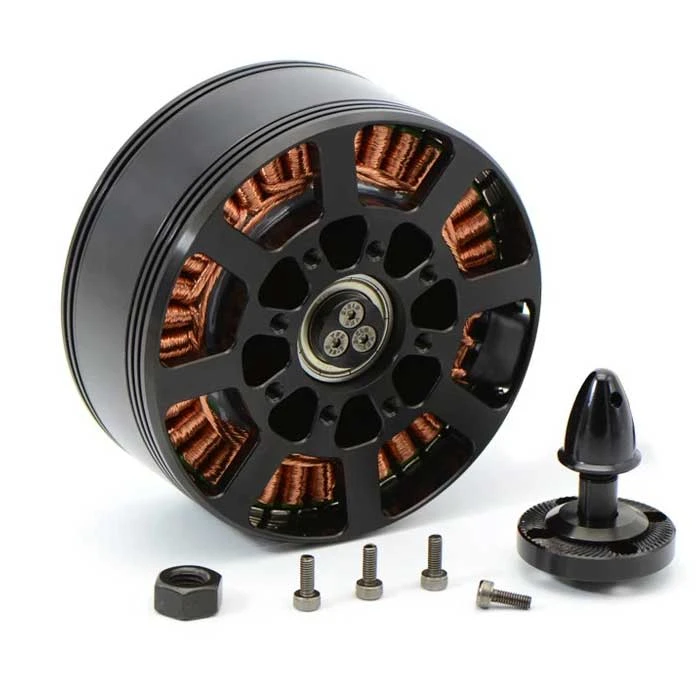

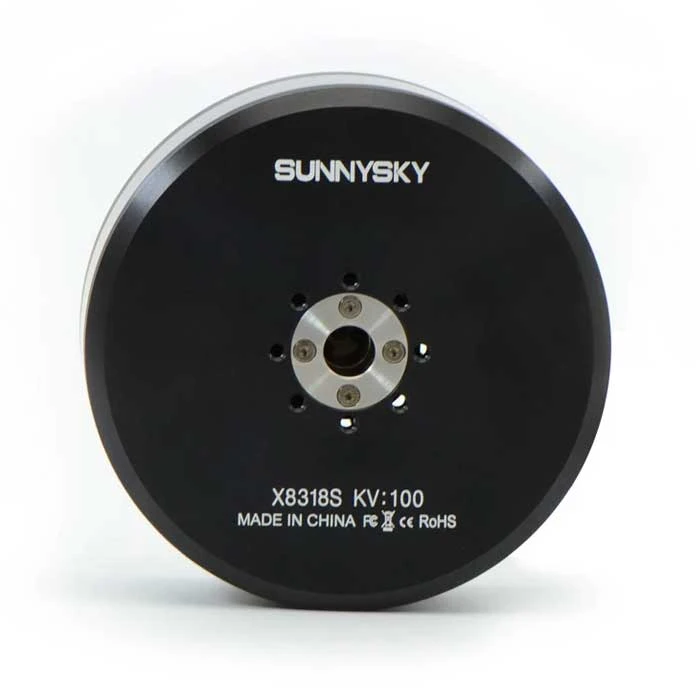

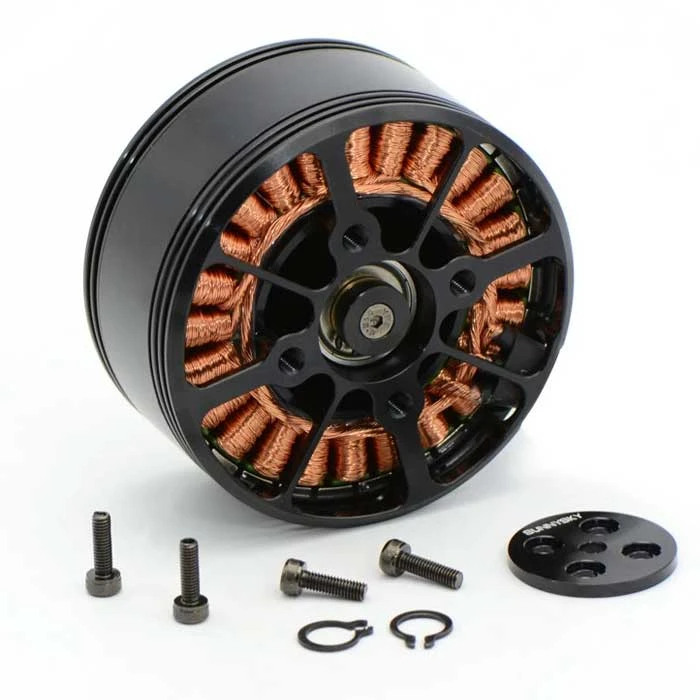

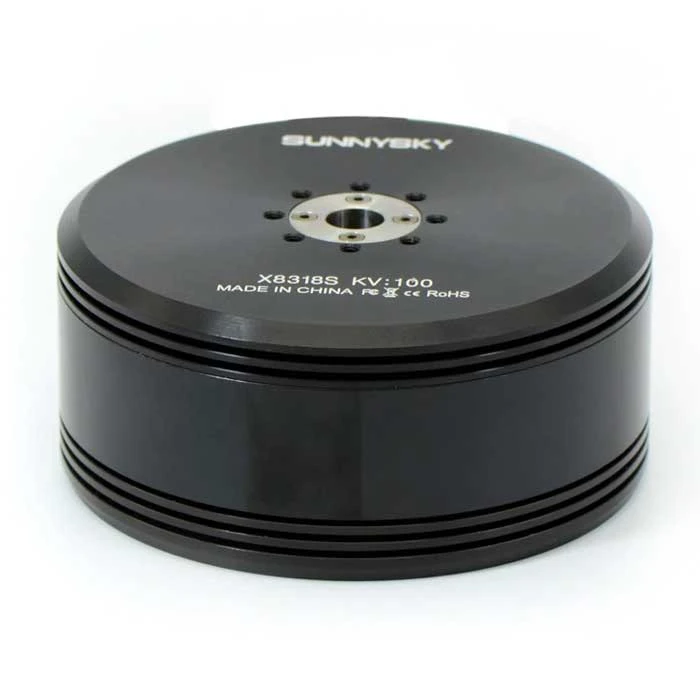

Sunnysky X8318S 100KV 120KV High Power Brushless Motor For Multi-Rotor Drones UAV Drones

Sunnysky X8318S 100KV 120KV High Power Brushless Motor For Multi-Rotor Drones UAV Drones - Image 2

Sunnysky X8318S 100KV 120KV High Power Brushless Motor For Multi-Rotor Drones UAV Drones - Image 3

Sunnysky X8318S 100KV 120KV High Power Brushless Motor For Multi-Rotor Drones UAV Drones - Image 4

Sunnysky X8318S 100KV 120KV High Power Brushless Motor For Multi-Rotor Drones UAV Drones - Image 5

Sunnysky X8318S 100KV 120KV High Power Brushless Motor For Multi-Rotor Drones UAV Drones - Image 6

Sunnysky X8318S 100KV 120KV High Power Brushless Motor For Multi-Rotor Drones UAV Drones

Original price was: $169.99.Current price is: $98.99.

SKU: CMMTD 4301076814 Categories: Motor for Drones, MULTI-ROTORS

Multiple payment options for secure shopping with SSL
Have the best deals
The home of quality products.
Experience the difference quality makes.

PRODUCT DESCRIPTION

Sunnysky X8318S 100KV 120KV is great for heavy lift UAV drones, the max thrust can reach 14500g. With the EZO bearing, the X8318S motors are stable, quiet, and have great longevity. Great choice for you heavy lift UAV drones or agriculture drones.

Specifications:

Motor Model / KV	X8318S/ KV100	X8318S/ KV120
Stator/Rotor Poles	36N42P	36N42P
Internal resistance	54mΩ	37mΩ
Motor size	φ91.6*41.0mm	φ91.6*41.0mm
Shaft diameter	15.0mm	15.0mm
AWG	20AWG 100mm	20AWG 100mm
Motor weight(wire included)	635g	635g
Motor weight(wire excluded)	No data	No data
Rated operational voltage	12S	12S
No-load current	1.1A/10V	1.3A/10V
Maximum continuous power	2500W	3200W
Maximum continuous current	50A/30s	64A/30s
ESC recommended use	80A	80A
Propeller size recommended use	30*10.5	30*10.5

X8318S 100KV Test Report

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
30*10.5	44.4	0.6	500	27	18.77	95℃
		1.4	1000	62	16.09
		2.3	1500	102	14.69
		3.4	2000	151	13.25
		4.6	2500	204	12.24
		5.8	3000	258	11.65
		7.2	3500	320	10.95
		8.8	4000	391	10.24
		10.2	4500	453	9.94
		12	5000	533	9.38
		13.7	5500	608	9.04
		15.6	6000	693	8.66
		17.6	6500	781	8.32
		19.6	7000	870	8.04
		21.7	7500	963	7.78
		23.7	8000	1052	7.60
		26.1	8500	1159	7.33
		28.2	9000	1252	7.19
		31.2	9500	1385	6.86
		33.2	10000	1474	6.78
		42.3	11840	1878	6.30

X8318S 120KV Test Report:

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
30*10.5	44.4	0.7	500	31	16.09	3 min 120℃
		1.5	1000	67	15.02
		2.4	1500	107	14.08
		3.5	2000	155	12.87
		4.7	2500	209	11.98
		5.9	3000	262	11.45
		7.3	3500	324	10.80
		8.7	4000	386	10.36
		10.2	4500	453	9.94
		11.9	5000	528	9.46
		13.9	5500	617	8.91
		15.8	6000	702	8.55
		17.4	6500	773	8.41
		19.5	7000	866	8.09
		21.7	7500	963	7.78
		24	8000	1066	7.51
		25.9	8500	1150	7.39
		28.5	9000	1265	7.11
		30.8	9500	1368	6.95
		33.5	10000	1487	6.72
		38.8	11000	1723	6.39
		43.7	12000	1940	6.18
		50.5	13000	2242	5.80
		57.3	14000	2544	5.50
		59.8	14500	2655	5.46
