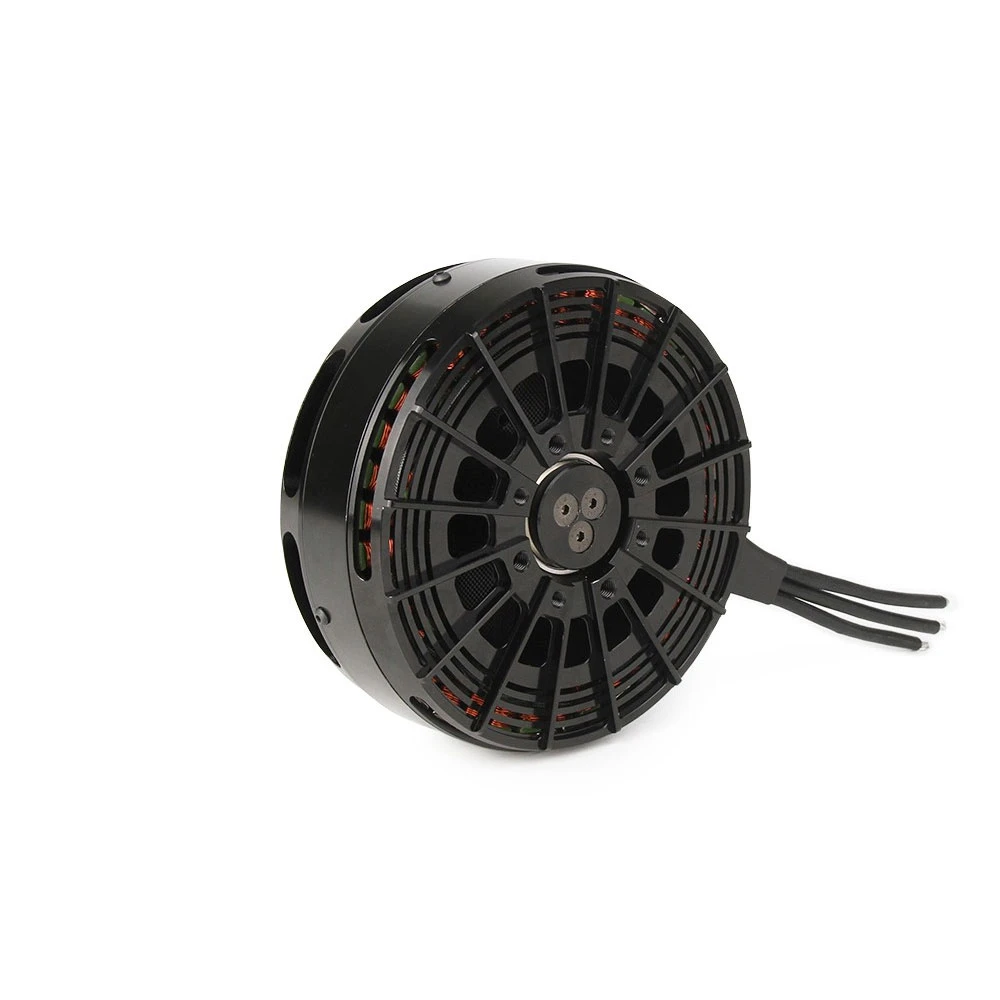

T-MOTOR U15II KV100 Brushlss Motor For UAV Drones

T-MOTOR U15II is the upgrade version of the U15, the max thrust can reach to 36kg. With N42 UH magnets and redesigned custom bearing, the working life can reach to 1000h under trouble-free operation. Meanwhile, the U15II motor is waterproof, dust resistant adn can work in 50℃ high temperature enviroment.

Specifications:
Item Brand: T-Motor
Item Model: U15II 100KV
KV: 100
Internal Resistance: 12mΩ
Configurateion: 36N42P
Shaft Diameter: 20mm
Motor Dimensions: 147.5 x 64mm
Lead: Enameled Wire
Cable Length: 100mm
Motor Weight（Incl. Cable）: 1740g
No. of Cells(Lipo): 12-24S
Idle Current(10V): 4.5A
Max. Power (180s): 9942W

Package Included:
T-motor U15II 100KV Motor x 1
