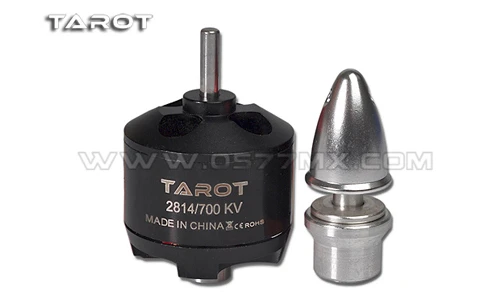

Tarot 2814/700KV Brushless Motor For Multi-copter/ Black TL68B18

:

• Applicable to TL65B01/TL65B02/TL68B01/TL68B02/TL2778/TL2749D
• CNC processed; rotor is made by NdFeB, stator made by Epoxy, and motor shaft uses alloy steel material.
• Motor upper and lower cover apply large-size bearing, which has advantages of long longevity, high efficiency, low power consumption, less noise, stable control.

Specification:

• Motor diameter: 35.00mm
• Stator diameter: 28.0 mm
• Stator thickness: 14.0 mm
• Rotating speed/ volt: 700 RPM / Volt
• Weight: 102 G
• Gear shaft diameter: 4.0 mm
• Motor shaft length: 53.5 mm
• No-load current: 0.8A
• Mounting port: 19MM, 25MM
• Prop. Adapter diameter: 6.3MM

Package Include:

• 2814/700KV brushless motor for multi-copter x1
• 3.5 gold connecter x3
• Metal Propeller Grip x1 set
