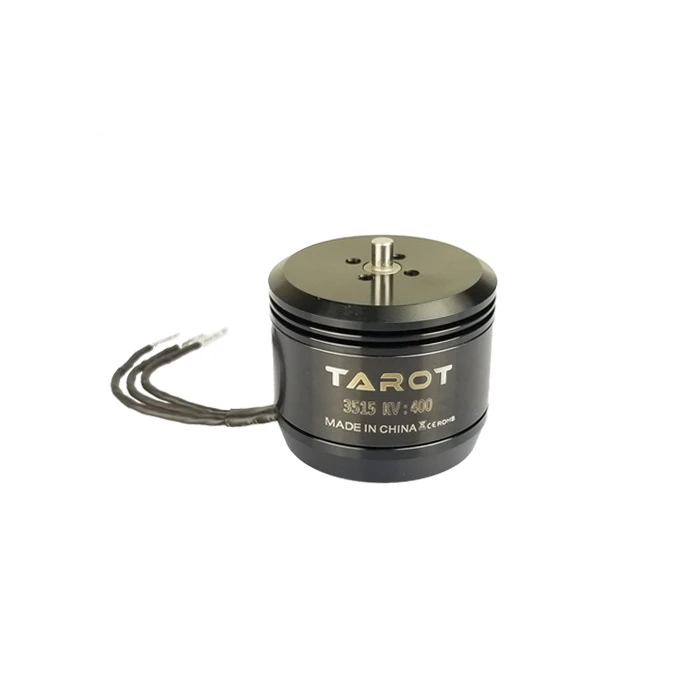

Tarot 3515 400KV High Efficiency 6S Brushless Motor For Long Flight Time RC Drones

Tarot 3515/400KV brushless motor is specially designed for long-endurance application drones such as aerial photographing,searching, inspection, mapping and surveying. It uses international standard aviation aluminum materials and is processed by Japanese high-precision CNC (precision 0.001mm). Each finished motor has passed strict quality standards.

Main Features:
1: Brand new semi-closed structure design, lightweight, high strength, fast heat dissipation, effectively preventing sand and gravel debris from entering the motor, and also has good ventilation and heat dissipation effects;
2: Using extremely durable high-quality imported bearings, the rotation is more stable;
3: Fully manual winding, each motor undergoes dynamic and static tests before leaving the factory to ensure the consistency of the motor;
4: IP35 dustproof and waterproof protection, unique structure to provide you with better safety guarantee.

Specifications:
Item Brand: Tarot
Item Model: 3515 400KV
No.of Cells(Lipo): 6S
Propeller: 14-16 inches
Stator diameter: 35mm
No-load current: 0.5A
Stator end thickness: 15mm
Number of stator ends: 12N
Motor pole number: 14P
Speed: 400KV±5%
Motor outer diameter: 42mm
Shaft diameter: 4mm
Motor height: 35mm
Maximum continuous current: 28.4A
Maximum continuous power: 630W
Internal resistance: 85mΩ
Propeller installation hole pitch: 12mm
Motor mounting hole distance: 25mm
Motor weight: 142g

Package Included:
Tarot 3515/400KV brushless motor x 1
Propeller metal mounting piece Φ2.26mm x 1
M3*6 cup head screw x 4
M3*8 round head screw x 4
Packing box x 1
