Tarot 4006 Martin Long Flight Time 6S Brushless Motor For Multi-Rotors

Tarot 4006 Martin long flight time brushless motor is suitable for long flight time multi-rotor drones (Quadcopter weighing less than 2.8 kg, Hexacopter weighing less than 4 kg). With the Martin Folding propeller, you can get the demand for long flight time drones. The overall design of the motor has a very low center of gravity to increase stability. Efficient active heat sink is built in, which brings ultra-low temperature and effectively improves energy conversion efficiency.

TAROT manufactures this motor with a high standard of CNC turning and milling technology. The single motor weighs only 71 grams (including folding paddles). The Martin series products belong to the TAROT power matching new products. The new products have undergone long-term testing and training to obtain low power consumption and high lift to meet the market requirements for long-haul drones.

The newly designed folding rotor mount is adaptable, with the addition of a conventional conventional propeller and a new Martin folding propeller. The base of the motor is designed with high suspension to protect the coil. Mounting hole 19MM / triangular mounting hole 27.7MM, compatible with the current mainstream rack mounting on the market, the appearance retains the consistency with the traditional motor. The continuation of the TAROT brushless motor has the advantages of long life, high efficiency, low power consumption, low noise and stable control.

Specifications:
Support battery: 6S
Propeller installation diameter: 10MM/12MM/34MM
Propeller: 15 inches
Stator diameter: 38MM
No-load current: 0.39a 20V
Stator thickness: 6.0mm
Stator terminal: 18N
Motor pole number: 24P
KV: 320KV ± 5%
Motor outer diameter: 44.5MM
Axis diameter: 4MM
Motor height: 19.5MM
Maximum continuous current (1): 29.5A
Maximum continuous power: 410W
Motor weight: 71G (including propeller)

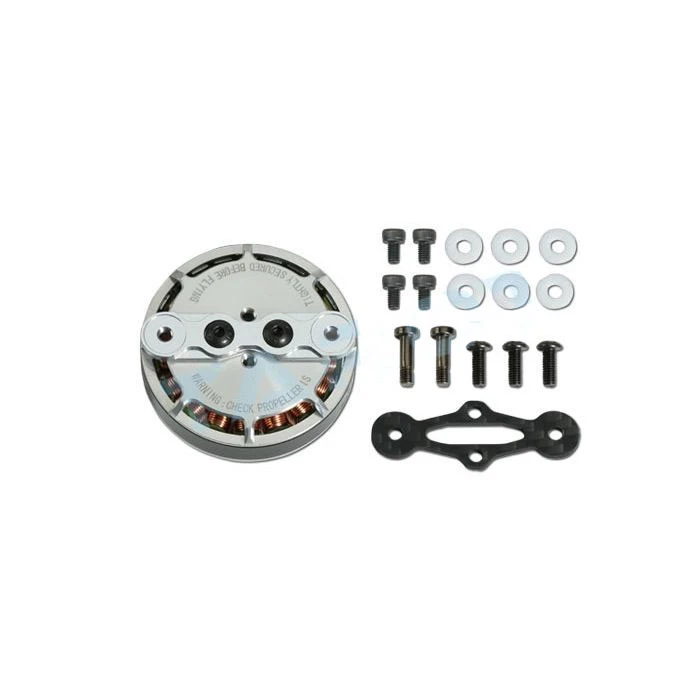

Package Included:
Tarot 4006 Martin long flight time brushless motor x 1
Metal folding paddle base x 1
Carbon fiber folding paddle clip x 1
M3×4MM screw x 2
M3 × 11.3MM screws x 2
M3×8MM semi-circular head screw x 3
M3×5MM cup head screw×4
Teflon gasket x 6
