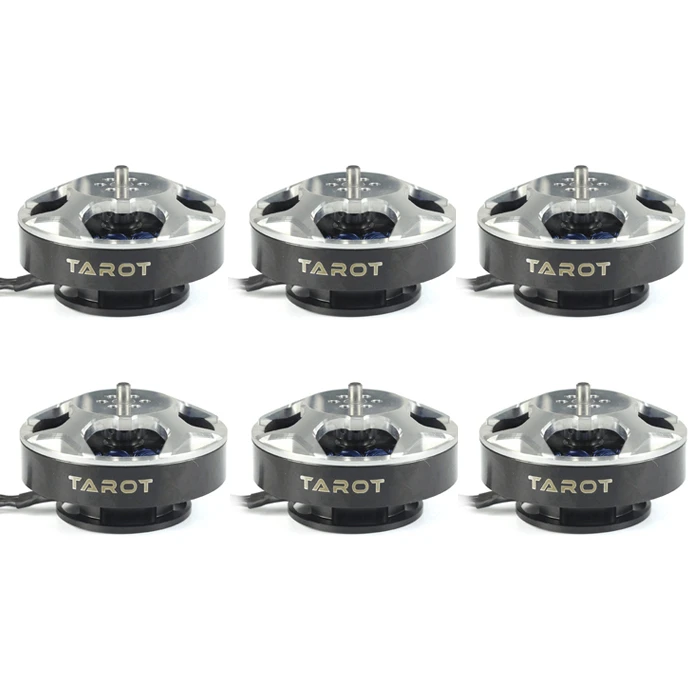

Tarot 5008/340KV Multicopter Brushless Motor TL96020（6PCS)

Main Features:
CNC processed, smooth surface and well-balanced
Brand-new turbofan cover, which provide good heat dissipation effect.
Rotor is made by neodymium iron boron, and stator is made by Epoxy resin, motor is well-balanced from factory, which solves vibration issue a lot. Motor shaft is alloy steel applied.
Motor upper and lower cover are special bearing applied, which has advantages such as low frictional torque, low power consumption, impact resistance, strong radial support.


Specifications:
Item Brand: Tarot
Item Model: 5008 340KV Motor
Suggest Propeller: 17-18 Inches
Outside Diameter: 58.50 Mm
Stator Diameter: 50.0 Mm
Stator Side Thickness: 8.0 Mm
No. of Stator Arms: 12
No. of Rotor Poles: 14
KV: 340KV
Empty Load Current: 1.1 Amps (25.2V)
Gear Shaft Diameter: 4.0 Mm
Motor Length: 35.0 Mm
Motor Axis Length: 42.0 Mm
Installation Hole distance: 25mm
Weight: 168g

Item included:
– 5008 KV340 motor x 6
– M3 * 4 8 Cup Head Screws
– M3 x 8 x 2 Half-Round Head Screw
– Metal Rotor Installed Plate x 1
