TAROT FY690 Carbon Fiber Hexa-copter Super Combo (Not Assembled)

Tarot TL68C01 Uses Toray carbon fiber 3K weave carbon fiber plate and hollow pure carbon fiber 3K carbon fiber tube (non-3K glassy carbon tubes) full CNC machining. Design standards higher than similar products, the entire chassis weighs only 600 grams. S version uses Dia16MM new multi-axis motor mount to back new brushless ESC position, can be directly tied to use. Color eye-catching color overall design has a strong perspective impact. High requirements for portable users design, especially suitable for do surveillance, remote sensing, mapping, airborne reconnaissance, fire observation, life exploration, cable transmission line, farm monitoring, and other high performance requirements of mobile equipment and require relatively little load multi blank endurance applications.

ARRIS 4010PRO 380KV Specifications:
Item Brand: ARRIS
KV:380
Configu ration:24N22P
Stator Diameter:40mm
Stator Length:10mm
Shaft Diameter:4mm
Motor Dimensions(Dia.*Len): 45.3x24mm
Weight (g):82.5g
ldle current(10)@10v(A):0.4A
No.of Cells(Lipo):4-8S

The most significant feature of ARRIS Simonk 30A brushless ESC is that it has 400mm singnal wire and power cord, no need to add extra wires, which greatly reduce the triviality in wiring.

Specification:
– Weight: 25g
– Size: 55 * 19 * 10mm
– Continuous Current: 30A
– Burst current: 45A
– BEC Mode: OPTO
– The applicable number of battery cells :2-6S

Main Features of the 1355 Peopeller:
Root has unique design, which increases the strength and efficiency
100% carbon TORAY 3K pure carbon fiber applied
Well-balanced from factory
Optimized propeller efficiency and loading stability

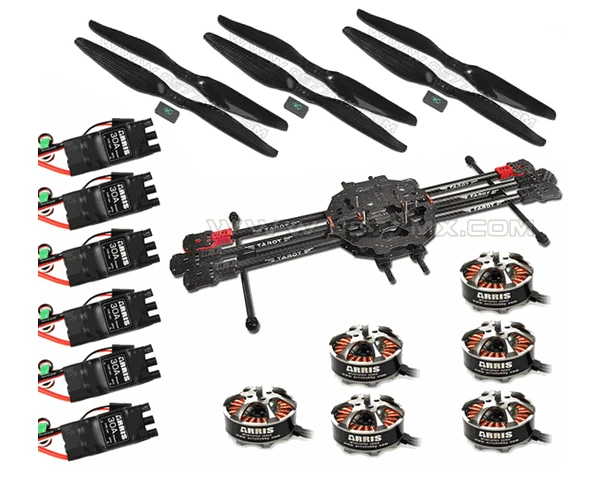

Package Includes:
1 x TL68C01 Hexa-copter Frame
6 x ARRIS Simonk 30A 2-6S OPTO Brushless ESC
6 x Tarot 1355 Carbon Fiber Propeller (3 pairs)
6 x ARRIS 4010Pro 380KV Motor
