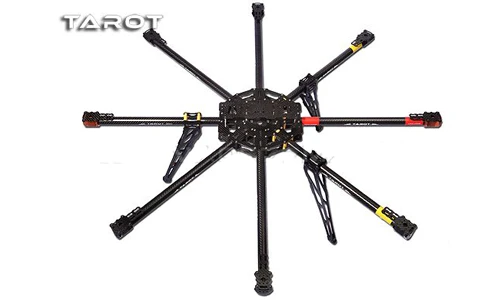

Tarot IRON MAN 1000 FPV Octa-Rotor 8 Rotor Copter Carbon Fiber Frame TL100B01

Tarot IRON MAN 1000 FPV Octa-Rotor 8 rotor Copter Carbon Fiber Frame TL100B01

This is frame only, propellers, motors, ESCs, Camera, Camera Mount showed in the picture are not included and just be used for reference.

:

Tarot IRON MAN 1000 multirotor aircraft frame adopts imorted Toray 3K plain carbon fiber woven CNC precision machining, 2.0mm carbon firber plate is surely exceeding all other products in the market. The motor holder using 6061T6 CNC process. Full folding design, satisfied users’ high portability requirements, particularly suited to do surveillance, remote sensing, mapping, airborne reconnaissance,Observed fire, life exploration, the cable line patrol, farm monitoring, and other high mobile performance requirements.The overall use of materials and design standards higher than similar products, the full set of rack with tripod weighs only 1.6KG. Carrying load 8kg, specially designed heavy load aircraft for meeting requirment of 5DII, RED EPIC, C300, FS100, FS700 and large-scale video equipment.

Accessories:
– eight shaft of pure carbon fiber divert the main cover TL100B03
– eight shaft of pure carbon fiber battery plate, the center board TL100B04
– Eight-axis ¦µ25MM pure carbon fiber tripod TL100B05
– The eight axis ¦µ25MM motor mount / orange TL100B06-1
¦µ25MM 3K plain carbon tube (495MM) TL100B07
¦µ25MM carbon fiber dual battery holder group TL80B05
¦µ25MM carbon fiber single battery holder group TL80B04
– 30A Combo Brushless ESC ZYX15
– 30A quadruple ESC ZYX16
– 40A tubular multi-axis brushless ESC ZYX17
– 30A round multi-axis brushless ESC ZYX18
– 4114/320KV multiaxial brushless motors TL100B08

Product parameters:
– weighs : 1.6KG (containing tripod)
– Tube diameter: 25MM
– Wheelbase: 1020MM
– Rack diameter: 1070MM
– Total height: 380CM
– Center cover Specifications: 250 ¡Á 240 MM
– The equilateral triangle Installation of the motor mounting hole distance: 16MM/19MM/25MM/27MM

Recommended configuration:(NOT INCLUDE)
– 4114/320KV multiaxial brushless motors TL100B08 of
– 1555 efficient carbon fiber multiaxial pros and cons paddle TL2812
– 30A Combo ESC ZYX15
– 30A quadruple ESC ZYX16
– 40A tubular multi-axis brushless ESC ZYX17
– 6S power battery 1000-015000MAH

Specifications:
– Pure carbon fiber on the main cover (250 ¡Á 240 ¡Á 2.0mm) x 1
– Pure carbon fiber under the body of the cover plate (250 ¡Á 240 ¡Á 2.0mm) ¡Á 1
– M3 the PTZ nut ¡Á 48
– Pure carbon fiber battery holder (220 ¡Á 63 ¡Á 2.0MM) ¡Á 1
– Pure carbon fiber adapter center plate (73 ¡Á 73 ¡Á 2.0MM) ¡Á 1
– The M3 ¡Á 35MM (H7) hexagonal aluminum column ¡Á 6
– The M3 ¡Á 12MM (H7) hexagonal aluminum column ¡Á 4
– Fixed piece of pure carbon fiber ESC (92.0 ¡Á 41.0 ¡Á 2.0MM) ¡Á 8
– Pure carbon fiber motor adapter plate (35 ¡Á 38.6 ¡Á 2.0MM) ¡Á 16
¦µ25MM 3K plain carbon tube (495MM)
– The metal ¦µ25MM motor mount ¡Á 8
– Hexagon collar screw M3 ¡Á 24 Cup head ¡Á 24
– Pure carbon fiber tripod left side plate (345 ¡Á 150 ¡Á 2.0MM) ¡Á 3
– Pure carbon fiber tripod right plate (250 ¡Á 240 ¡Á 2.0mm) x 3
¦µ25MM PTZ tube clip ¡Á 60 (two-color)
– Hexagon collar screw M3 ¡Á 35 Cup head ¡Á 60
– Shock RABIN
– M3 ¡Á 10MM aluminum column ¡Á 3
– M3 * 5MM round head screws ¡Á 18
– M2 * 18Mm Cup head Hexagon collar screw x 3
– M2 slip nut ¡Á 1
– Two-color point stickers ¡Á 4
– Large water stickers ¡Á 8
– Battery Magic glued ¡Á 1
– Manual ¡Á 1
