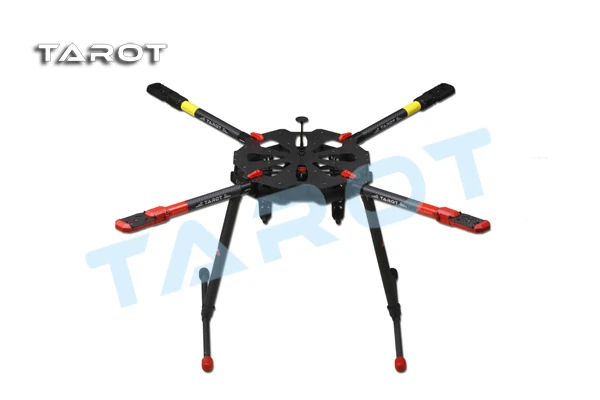

Tarot X4 Umbrella Foldable Quadcopter TL4X001 W/ Electronic Landing Skid For FPV

:
Tarot X4 quacopter frame is one of the latest released versions for professional aerial photographer from Tarot. The Tarot X4 quadcopter comes with the retractable landing skid, umbrella folding arms, integrated PCB board to connect power supply and ESC. The frame also provided enough space for flight controller and other equipments.

For motor, we suggest the Tarot 6015 brushless motor; it could provide enough power for quadcopter. The main feature is light in weight, easy to carry.

The state intellectual property has been awarded the TAROT model.,ltd five patents. Any units orindividual without the license holder manufacture copy and sale the product will be patent lawsuit.

patent number: 2014204282854
patent number: 014203682366
patent number: 014302624585
patent number: 2014301541104
patent number: 014302583208

Specifications:
Diagonal Wheelbase: 960mm
Foldable Propeller Size: 22-24inches
Length of One Arm: 392mm
Weight of One Arm: 113g
Diameter of Center Plate: 330mm
Height of the Landing Gear: 395mm
Recommended Battery: 22.2V 10000mah � 20000mah, 25C
Recommended ESC: 60A
Hovering Time: 18min
Working Temperature: -10 to 40 degree centigrade
Net Weight: 1.6kg
Gross Weight: 2.2kg
