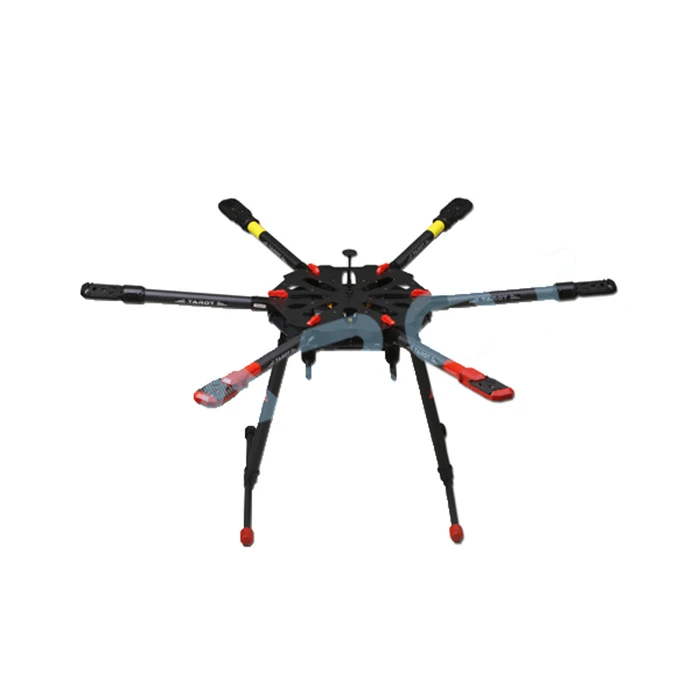

Tarot X6 6-Axis Hexacopter TL6X001 W/ Electronic Retractable Landing Skid For FPV

Tarot X6 is for pre-order now, here is one similar frame in stock, you can check here.

:
Tarot X6 multicopter frame is specially designed for professional aerial photography or FPV users. It comes with the new style electronic retractable landing skid, umbrella type folding arms, integrated PCB board which make the power wire and ESC wire connections more safety. Meanwhile, it provides enough installation space for flight controller or other equipments.�0″2
For the Tarot X6 multicopter frame, if one of the arms stopped working by accident, the multicopter frame could still in stable status. The main feature of this frame is light in weight, and easy to carry. The max take-off weight is about 9kg, and it is easy to carry the Canon 5D camera with the gimbal. The flight time is about 12 minutes.

The state intellectual property has been awarded the TAROT model.,ltd five patents. Any units orindividual without the license holder manufacture ¡¢copy ¡¢use and sale the product will be patent lawsuit.

patent number: 2014204282854
patent number: 014203682366
patent number: 014302624585
patent number: 014301541104�0″2
patent number: 014302583208

Specifications:
Diagonal wheelbase: 960mm
Propeller size: 18 inches
Length of one arm：392mm
Weight of one arm: 113g
Diameter of center plate: 328mm
Height of landing skid: 395mm
Battery recommended: 15C, 22.2V 10000mah to 20000mah
6S brushless ESC recommended: 40A
Max Power Consumption: 4000W
Hovering Power Consumption: 1800W
Hovering time: 18min
Working temperature: -10℃～40℃
Net weight: 2.0kg
Package weight: 2.7kg

Folding arm design on the Tarot X6 decreased much preparing time before flight. The 4 direction lock folding design with patent make the arm lock on the frame firmly.

The Tarot X6 comes with high strength PCB board; the power plug adopts the AS150 anti-spark connector. The user could get more flight time from the light frame.

The new type motor mount added the brushless ESC installation hole. This is easy to adjust the horizontal of the motor. There is air deflector groove on top; it could bring good heat dissipation effect.

The electronic retractable landing skid has reverse power protection and failsafe function. The retractable landing skid could provide broader views for aerial photography.

The Tarot X6 comes with metal GPS mount. It is plug type, easy to folding.

Black and red color main frame design has strong visual effect. The battery hang under the frame design make the gravity center lower, and it provide more installation space.
